Our ribbed insert with enlarging head for round tubes has been designed for a good finish and greater stability.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube
Tube Thickness
D
d1
d
L
H



More
Info.
00300400238 18 1,00 to 2,00 19,50 17,00 13,00 25,00 12,00
00300400239 20 1,00 to 2,00 21,50 19,00 15,00 24,50 13,00
00300400240 22 1,50 to 2,50 23,50 20,80 15,00 29,50 13,75
00300400241 25 1,50 to 2,50 26,70 23,00 18,00 30,00 15,00
00300400242 28 1,50 to 2,50 30,00 26,00 21,00 30,00 16,00
00300400243 30 1,50 to 2,50 32,00 28,00 23,00 35,00 17,00

If you are interested in our family LGLK, you may be interested in these families as well:

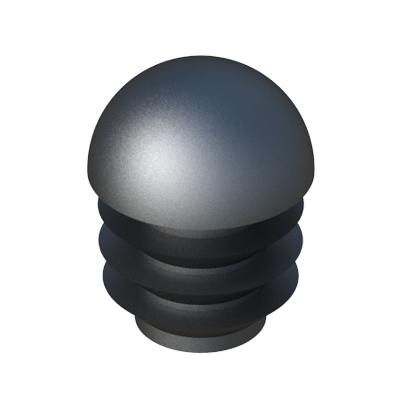

Our LGLR tube inserts are intended for its use with round tubes. These articles stand out for their design with <b>spherical head</b> and high-quality finish.<br>
<br>
These inserts, with a wide range of tube outer diameters from 16 mm to 76.2 mm, have wings for a better grip once installed and are made of <b>LDPE</b> (Low Density Polyethylene ). The appropriate codes for tubes with measurements typical of the imperial system, commonly used in Anglo-Saxon countries, are those in which dimension D is expressed in inches (R).<br>
<br>
Most of the articles in this family are available in <b>black, grey and white</b> as standard colors, as well as in RAL of your choice under request (contact our commercial department to consult the conditions of sale).
