Description and features
Our LGLR tube inserts are designed for installation in round tubes. They feature a spherical head and a high-quality finish.
Manufactured from LDPE (low-density polyethylene), they include fins that improve retention once installed. This range is compatible with tube outside diameters from 16 mm to 80 mm. Depending on the reference, the finish may be smooth or textured, with varying texture intensity.
· Material: LDPE
· Compatibility: Round tubes
· Diameter range: From 16 mm to 80 mm
· Standard colours: Black, grey and white
References with tube dimensions expressed in inches (R) correspond to common imperial-size tubes. RAL colours are available on request; please contact our sales department for sales conditions.
RAL colors manufactured Product images and technical drawings
Product view
Technical drawing
Video
| 00700800620 | 16 | 1,00 to 2,00 | 7,50 | 12,00 | |||||||||
| 00300400228 | 16 | 1,50 | 7,30 | 12,00 | |||||||||
| 00300400229 | 18 | 1,50 | 8,80 | 11,50 | |||||||||
| 00700800621 | 18 | 1,00 to 2,00 | 8,00 | 12,00 | |||||||||
| 31000800300 | 18 | 1,00 to 2,00 | 9,00 | 24,00 | |||||||||
| 00700800622 | 19 | 1,20 to 2,00 | 9,50 | 14,00 | |||||||||
| 00300400230 | 20 | 1,50 | 10,00 | 15,50 | |||||||||
| 00700800623 | 20 | 1,00 to 2,00 | 9,50 | 15,50 | |||||||||
| 31000800301 | 20 | 1,00 to 2,00 | 10,00 | 24,00 | |||||||||
| 00300410071 | 21,34 (R 1/2) |
2,65 | 10,65 | 20,00 | |||||||||
| 00300400231 | 22 | 1,50 | 11,00 | 15,50 | |||||||||
| 00700800624 | 22 | 1,00 to 1,50 | 10,50 | 15,50 | |||||||||
| 00700800625 | 22 | 1,50 to 2,00 | 10,50 | 15,50 | |||||||||
| 31000800302 | 22 | 1,00 to 2,00 | 11,00 | 24,00 | |||||||||
| 00300400232 | 25 | 1,50 | 11,50 | 15,50 | |||||||||
| 00700800626 | 25 | 1,00 to 2,00 | 10,50 | 15,50 | |||||||||
| 31000800303 | 25 | 1,00 to 2,00 | 12,60 | 22,60 | |||||||||
| 00300410072 | 26,70 (R 3/4) |
2,65 | 13,45 | 20,00 | |||||||||
| 00700800627 | 27 | 1,00 to 2,00 | 13,50 | 15,50 | |||||||||
| 00700800628 | 28 | 1,00 to 2,00 | 14,00 | 15,50 | |||||||||
| 00300400233 | 28 | 1,50 | 14,00 | 14,50 | |||||||||
| 00700800630 | 30 | 1,00 to 2,00 | 14,00 | 17,50 | |||||||||
| 31000800304 | 30 | 1,00 to 2,00 | 15,00 | 24,00 | |||||||||
| 00700800631 | 32 | 1,00 to 2,00 | 16,50 | 19,50 | |||||||||
| 00300410073 | 33,40 (R 1) |
3,25 | 16,85 | 20,00 | |||||||||
| 00700800632 | 34 | 1,20 to 2,50 | 17,00 | 19,50 | |||||||||
| 00700800633 | 35 | 1,00 to 2,00 | 16,50 | 19,50 | |||||||||
| 31000800305 | 35 | 1,00 to 2,00 | 17,50 | 24,00 | |||||||||
| 31000800306 | 40 | 1,00 to 2,00 | 20,00 | 24,00 | |||||||||
| 00300400237 | 40 | 1,50 | 21,70 | 11,80 | |||||||||
| 00700800634 | 42 | 1,50 to 2,50 | 21,00 | 30,00 | |||||||||
| 00300410074 | 42,4 (R 1·1/4) |
3,25 | 21,20 | 25,00 | |||||||||
| 00700800635 | 44,50 | 1,20 to 2,00 | 22,00 | 30,00 | |||||||||
| 00700800636 | 45 | 1,50 to 2,50 | 22,00 | 30,00 | |||||||||
| 00700800637 | 48,40 | 1,50 to 2,50 | 24,20 | 30,00 | |||||||||
| 00700800638 | 48,40 | 3,00 to 5,00 | 24,20 | 30,00 | |||||||||
| 00300410075 | 48,26 (R 1·1/2) |
3,25 | 24,20 | 25,50 | |||||||||
| 31000800307 | 50 | 1,00 to 2,00 | 25,00 | 24,00 | |||||||||
| 00700800639 | 50 | 1,50 to 2,50 | 25,00 | 30,00 | |||||||||
| 00700800640 | 51 | 1,20 to 2,50 | 25,50 | 30,00 | |||||||||
| 00700800641 | 57,20 | 1,50 to 2,50 | 29,00 | 35,50 | |||||||||
| 31000800308 | 60 | 1,00 to 2,00 | 30,00 | 24,00 | |||||||||
| 00300400697 | 60 | 1,50 | 30,00 | 39,40 | |||||||||
| 00700800642 | 60 | 1,50 to 2,50 | 30,00 | 40,00 | |||||||||
| 00300410076 | 60,32 (R 2) |
3,65 | 30,15 | 25,00 | |||||||||
| 00700800643 | 76,20 | 2,00 to 3,50 | 38,50 | 40,00 | |||||||||
| 31000800309 | 80 | 1,00 to 3,00 | 23,00 | 19,00 | |||||||||
| 31000800310 | 80 | 3,25 to 5,00 | 23,00 | 19,00 |

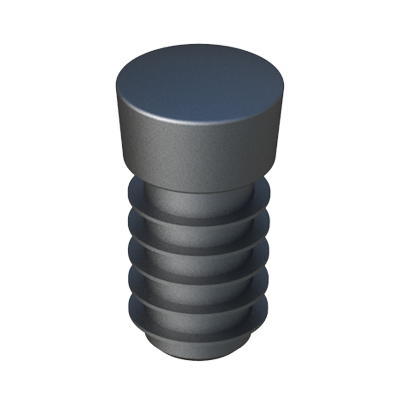

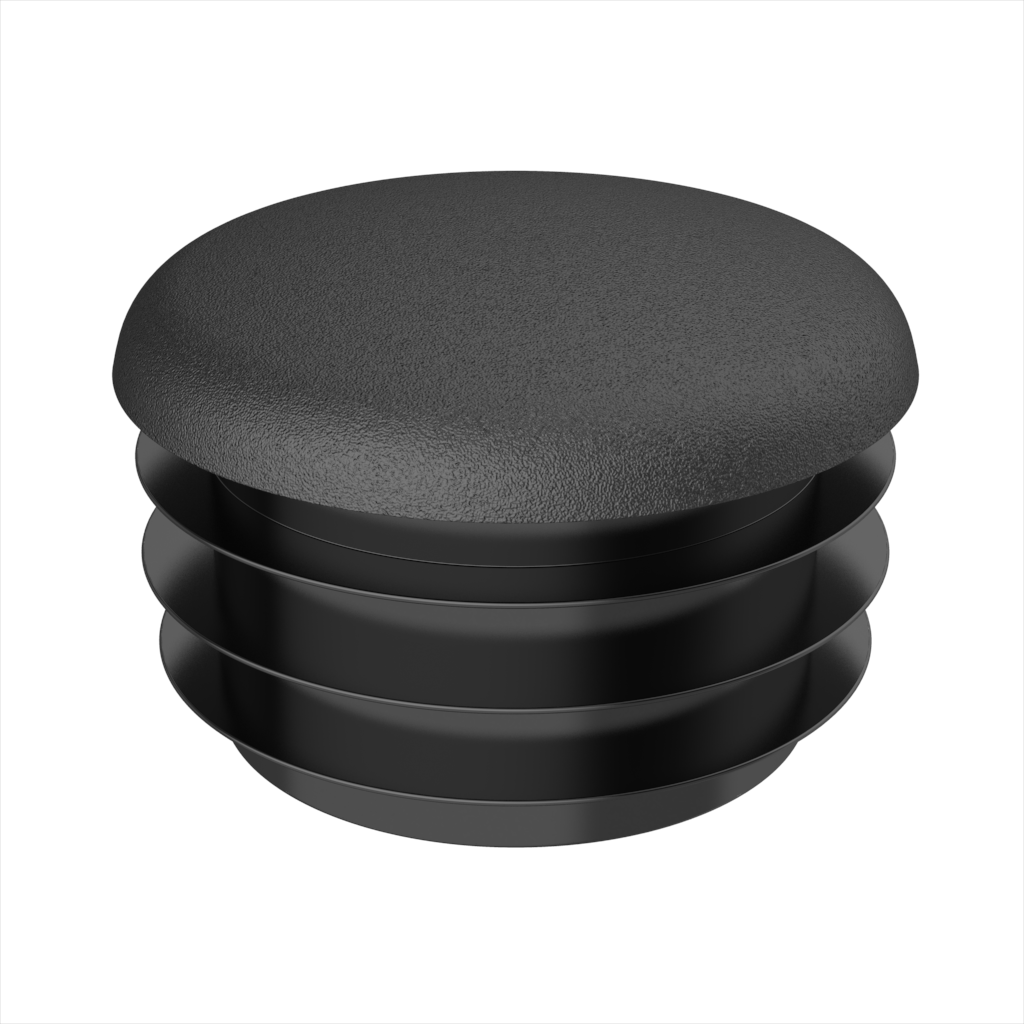

If you are interested in our family LGLR, you may be interested in these families as well:
