Description and features
Our connector/glide LJEV made of PA6 “Polyamide 6” for square tubes has 2 cavities to be able to place hexagonal nuts according to the user's needs.Depending on the placement of the part, the axis in a vertical position is suitable for placing a leveler or wheel while the horizontal axis is suitable for connect a cross member “structural element” . See video.
We supply the part without nuts, with 1 nut on top , with 1 nut on the bottom , or with 2 nuts .
RAL colors manufactured Product images and technical drawings
Product view
Technical drawing
Video
Part numbers and dimensions of Square tube insert-adjustable-connector
| Reference | For Tube |
Tube Thickness |
L / K |
E / H |
Nut Spot (SW) / Metric (M) |
More Info. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02300900100 | 20 x 20 | 1,50 | 41,00 / 2,00 | 10,00 / 25,00 | SW13 | ||||||||
| 02300900101 | 20 x 20 | 2,00 | 41,00 / 2,00 | 10,00 / 27,00 | SW13 | ||||||||
| 02300900102 | 25 x 25 | 1,50 | 42,00 / 2,00 | 12,50 / 28,00 | SW13 | ||||||||
| 02300900103 | 25 x 25 | 1,50 | 40,00 / 2,00 | 12,50 / 31,00 | SW17 |

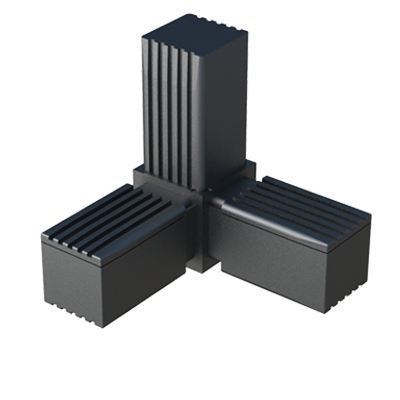

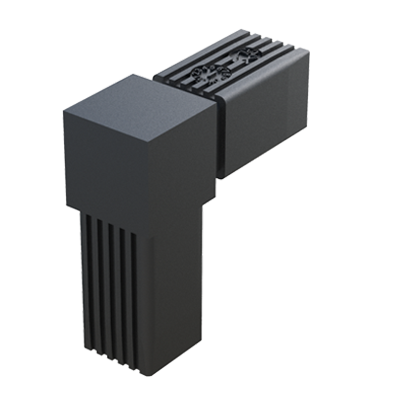

If you are interested in our family LJEV, you may be interested in these families as well:
