The square threaded reinforced tube inserts JTPOA are made of glass fiber reinforced polyamide (PA6630%GF), a material that offers excellent resistance. While the nuts are made of nickel-plated brass (NB) and 304 stainless steel (SS).

These inserts are ideal for applications that require supporting high weights, as they reach resistances from 560 to almost 1,000 kilograms.

  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

JTPOA
JTPOA

Reference
For Tube (D)
Tube Thickness
Metric Thread (M)
L
B
H
Maximum Weight (Kgs.)
Maximum Weight (Newton)



More
Info.
04600800050 30 x 30 1,50 M8 27,00 27,50 6,00 560 5.500
00300410015 30 x 30 1,50 M10 33,00 27,50 6,00 560 5.500
00300410016 30 x 30 1,50 M12 27,00 27,50 6,00 560 5.500
04600800051 30 x 30 1,50 M14 33,00 27,50 6,00 560 5.500
04600800052 30 x 30 1,50 M16 33,00 27,50 6,00 560 5.500
04600800053 35 x 35 1,50 M8 43,00 32,50 8,00 713 7.000
04600800054 35 x 35 1,50 M10 43,00 32,50 8,00 713 7.000
04600800055 35 x 35 1,50 M12 43,00 32,50 8,50 713 7.000
04600800056 35 x 35 1,50 M14 43,00 32,50 8,00 713 7.000
04600800057 35 x 35 1,50 M16 43,00 32,50 8,00 713 7.000
04600800059 40 x 40 1,50 M8 43,00 37,50 8,00 815 8.000
01200100200 40 x 40 1,50 to 2,00 M10 30,00 38,00 5,50 800 7.845
00300410017 40 x 40 1,50 M10 43,00 37,50 8,00 815 8.000
01200100201 40 x 40 1,50 to 2,00 M12 30,00 38,00 5,50 800 7.845
00300410019 40 x 40 1,50 M12 43,00 37,50 8,00 815 8.000
01200100202 40 x 40 1,50 to 2,00 M14 30,00 38,00 5,50 800 7.845
04600800060 40 x 40 1,50 M14 43,00 37,50 8,00 815 8.000
01200100203 40 x 40 1,50 to 2,00 M16 30,00 38,00 5,50 800 7.845
00300410021 40 x 40 1,50 M16 43,00 37,50 8,00 815 8.000
01200100204 40 x 40 1,50 to 2,00 M20 30,00 38,00 5,50 800 7.845
04600800061 40 x 40 1,50 M20 43,00 37,50 8,00 815 8.000
04600800062 40 x 40 2,00 M8 43,00 36,50 8,00 815 8.000
00300410018 40 x 40 2,00 M10 43,00 36,50 8,00 815 8.000
00300410020 40 x 40 2,00 M12 43,00 36,50 8,00 815 8.000
04600800063 40 x 40 2,00 M14 35,00 40,00 8,00 815 8.000
00300410022 40 x 40 2,00 M16 43,00 36,50 8,00 815 8.000
00300410023 40 x 40 2,00 M20 43,00 36,50 8,00 815 8.000
01200100304 50 x 50 1,50 M12 44,00 47,80 8,00 800 7.845
00300410024 50 x 50 1,50 M12 55,00 47,50 10,00 968 9.500
01200100305 50 x 50 1,50 M14 30,00 47,80 5,50 800 7.845
04600800064 50 x 50 1,50 M14 55,00 47,50 10,00 968 9.500
01200100306 50 x 50 1,50 M16 30,00 47,80 5,50 800 7.845
00300410025 50 x 50 1,50 M16 55,00 47,50 10,00 968 9.500
01200100307 50 x 50 1,50 M20 30,00 47,80 5,50 800 7.845
04600800065 50 x 50 1,50 M20 55,00 47,50 10,00 968 9.500
01200100300 50 x 50 2,00 M12 30,00 46,80 5,50 800 7.845
01200100301 50 x 50 2,00 M14 30,00 46,80 5,50 800 7.845
01200100302 50 x 50 2,00 M16 30,00 46,80 5,50 800 7.845
01200100303 50 x 50 2,00 M20 30,00 46,80 5,50 800 7.845
04600800066 50 x 50 2,50 M12 45,00 50,00 10,00 968 9.500
04600800067 50 x 50 2,50 M14 55,00 45,50 10,00 968 9.500
00300410026 50 x 50 2,50 M16 55,00 45,50 10,00 968 9.500
00300410027 50 x 50 2,50 M20 55,00 45,50 10,00 968 9.500

If you are interested in our family JTPOA, you may be interested in these families as well:

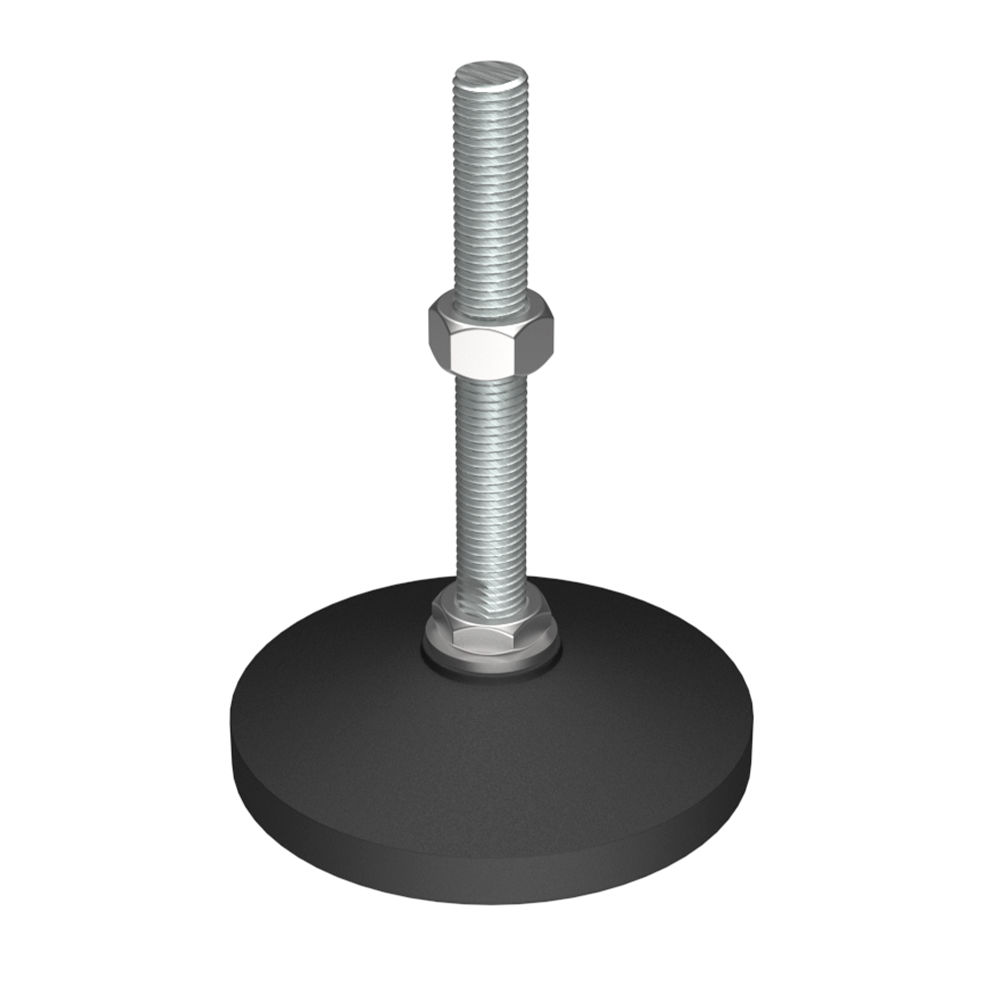

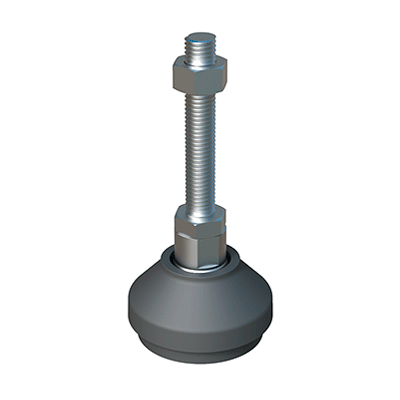

Our heavy duty adjustable foot has a reinforced tilting base of 15º that resists a weight up to 1,300 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties. <br> The standard product is made in stainless steel type 304 and it can also be made in type 316 on request. Available also with anti-skid base made of TPV.   Our JTPS leveling feet feature a reinforced base that withstands loads up to <b>29430 N</b>.<br><br>This leveling foot is designed for applications requiring a clean finish and strong mechanical properties. It can be supplied with a <b>non-slip base</b>.<br><br>The standard version is made of <b>Type 304 stainless steel</b>, and we can manufacture it in Type 316 upon request.   Our JTPV leveling feet have a reinforced base with a maximum tilt of <b>15º</b>. They withstand loads up to <b>26,487 N</b>.<br><br>This leveling foot is designed for applications requiring a good finish and strong mechanical properties. The foot base is <b>non-slip</b>.<br><br>The standard version is made of <b>Type 304 stainless steel</b>, and we can manufacture it in Type 316 upon request.   Our JTPV leveling feet have a reinforced base with a maximum tilt of <b>15º</b>. They withstand loads up to <b>26,487 N</b>.<br><br>This leveling foot is designed for applications requiring a good finish and strong mechanical properties. The foot base is <b>non-slip</b>.<br><br>The standard version is made of <b>Type 304 stainless steel</b>, and we can manufacture it in Type 316 upon request.   Our <b>reinforced and threaded</b> LJM inserts for square tubes are made of a <b>Zamak</b>. <b>Type 1</b> references have a rounded head and interior reinforcing ribs, which provide greater resistance to the piece, while <b>Type 2</b> references have a head without a radius and do not have interior reinforcement ribs. <br><br> Available for: Round tubes: <b><a href=' https://www.isc-sl.com/round-threaded-zamak-tube-insert/ljmr/'target='_top'>LJMR</ a></b> / Rectangular tubes: <b><a href=' https://www.isc-sl.com/rectangular-threaded-and-reinforced-tube-insert/ljmz/'target='_top' >LJMZ</a></b> / Oval tubes: <b><a href='https://www.isc-sl.com/oval-threaded-reinforced-tube-insert/ljmo//'target ='_top'>LJMO</a></b>
