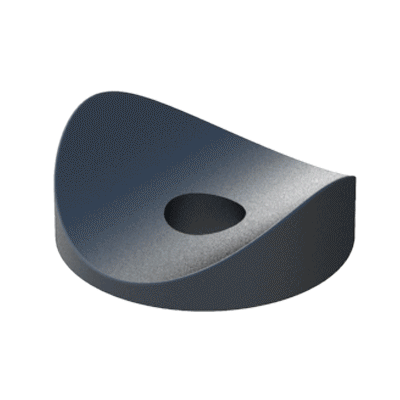

This spacer is used for connecting round tubes from - 12 to 42 mm - to a flat surface. The reference numbers that begin with 003 are made of polyethylene (LDPE) in black color while the reference numbers that begin with 001 are made of nylon (PA66) in natural and black color, for special colors, please contact us.
If you need to connect several tubes, please visit our group: Connectors.
 RAL colors manufactured

Drawing PDF:
UL94:   V2*
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


 Filter by measurements
For Tube (R) Margen +/-
A Margen +/-
B Margen +/-



Reference
For Tube (R)
A
B
H
T



More
Info.
00300200593 12 to 14 11,00 5,20 2,50 5,80
00300200594 16 to 20 15,00 6,20 7,50 12,50
00300200586 16 to 20 15,00 6,20 8,00 11,50
00300200587 16 to 20 15,00 6,20 10,00 13,50
00300200595 16 to 20 15,00 6,20 10,00 15,00
00300200588 16 to 20 15,00 6,20 12,50 16,00
00300200596 16 to 20 15,00 6,20 12,50 17,40
00300200589 16 to 20 15,00 6,20 15,00 18,50
00300200597 16 to 20 15,00 6,20 15,00 20,10
00300200585 16 to 20 15,00 6,20 17,50 21,15
00300200598 16 to 20 15,00 6,20 17,50 22,20
00300200599 18 to 20 17,00 5,20 2,50 ·
00300200600 18 to 20 17,00 6,20 2,50 8,20
00300200590 18 to 20 18,00 6,70 17,00 25,00
00100202678 18 to 20 19,00 6,60 3,25 9,80
00300200601 20 to 23 19,00 5,20 3,00 9,30
00300200603 20 to 23 19,00 5,20 11,50 17,80
00300200602 20 to 23 19,00 6,20 3,00 9,70
00300200604 20 to 23 19,00 6,20 11,50 18,00
00300200592 20 to 23 23,00 4,10 11,50 16,30
00300200591 20 to 23 23,30 7,00 11,75 16,45
00100203400 22 19,00 8,05 2,00 6,40
00100202679 22 21,50 6,50 4,00 10,80
00100202680 24 to 26 21,20 5,70 12,70 17,60
00300200605 24 to 26 22,00 6,20 3,00 ·
00300200606 24 to 26 22,00 8,10 3,00 9,00
00100202681 24 to 26 25,40 6,60 6,40 14,10
00100202682 24 to 26 25,40 8,25 6,40 14,20
00300200607 25 to 28 22,00 8,00 3,00 9,30
00300200608 25 to 28 22,00 8,00 5,00 11,20
00300200609 25 to 28 22,00 8,00 7,50 13,80
00300200610 25 to 28 22,00 8,00 10,30 16,50
00300200611 25 to 28 22,00 8,00 12,50 19,00
00300200612 25 to 28 22,00 8,00 14,60 20,80
00300200613 25 to 28 22,00 8,00 17,50 24,00
00300200615 25 to 28 22,00 8,00 22,50 ·
00300200614 25 to 28 22,00 8,00 20,00 26,40
00300200616 25 to 28 22,00 8,00 25,00 31,00
00300200617 25 to 28 22,00 8,00 27,50 33,80
00300200618 25 to 28 22,00 8,00 30,00 36,00
00100203401 25 21,80 8,05 5,80 10,65
00100203403 25 22,20 9,40 6,45 12,70
00100203402 25 25,00 8,10 4,20 11,15
00100202683 26 to 28 25,50 6,35 3,25 11,50
00100203404 28 19,10 6,50 2,20 5,15
00100202684 28 to 30 22,20 9,50 6,35 11,10
00300200619 29 to 32 25,00 8,00 3,00 9,75
00300200620 29 to 32 25,00 8,00 4,75 11,50
00300200621 29 to 32 25,00 8,00 7,50 14,60
00300200622 29 to 32 25,00 8,00 10,25 17,00
00300200623 29 to 32 25,00 8,00 12,75 19,40
00300200624 29 to 32 25,00 8,00 15,00 22,00
00300200625 29 to 32 25,00 8,00 17,50 24,60
00300200627 29 to 32 25,00 8,00 22,50 ·
00300200626 29 to 32 25,00 8,00 20,20 27,00
00300200628 29 to 32 25,00 8,00 25,00 32,00
00300200630 29 to 32 25,00 8,00 30,00 ·
00300200629 29 to 32 25,00 8,00 27,50 34,00
00300200631 30 to 34 28,00 6,25 3,50 12,75
00300200631 30 to 34 28,00 6,25 3,50 12,75
00300200632 30 to 34 28,00 8,00 3,50 12,75
00300200633 30 to 34 28,00 10,20 3,50 12,75
00100203405 32 32,00 10,40 3,40 ·
00300200634 38 to 42 35,00 6,20 5,00 18,30
00300200635 38 to 42 35,00 8,00 5,00 16,00
00300200636 38 to 42 35,00 9,75 5,00 6,10

If you are interested in our family LTS2, you may be interested in these families as well:

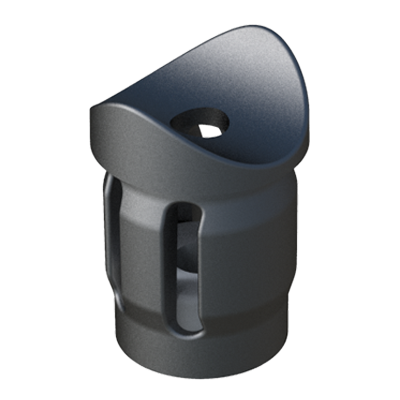

Our round ribbed connector with saddle is ideal to connect 2 round tubes in order to get a T connection. It gives you the possibility to connect 2 tubes of the same diameter, or 2 tubes with a different diameter.   Our round ribbed connector with saddle is ideal to connect 2 round tubes in order to get a T connection. It gives you the possibility to connect 2 tubes of the same diameter, or 2 tubes with a different diameter.   Adapter to connect transversely round tubes, in combination with our connectors indicated in suggestions.   Our connector for round tubes has been designed with 2 cavities for hexagonal nuts. We can supply the part without nuts, or with a nut up, or one nut down, or with the 2 nuts. Please consult us.
