Our ribbed insert has been designed in two parts with an injected plastic thread.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters

LJRK
LJRK

Reference
For Tube (D)
Tube Thickness ( C )
Metric Thread (M)
D1
H
d1
d
L



More
Info.
00300400378 16 1,00 M8 16,10 5,00 15,00 12,00 32,30
00300400379 18 1,50 M8 18,00 5,00 17,00 13,80 32,50
00300400380 18 1,50 M10 18,00 5,00 17,00 14,00 32,30
00300400381 20 1,00 to 1,50 M8 20,00 5,00 19,00 13,60 32,30
00300400382 20 1,50 to 2,00 M10 20,00 5,00 19,00 13,00 32,30
00300400383 22 1,50 to 2,00 M8 22,00 5,00 20,50 19,00 32,00
00300400384 22 1,00 M10 22,00 5,00 20,00 16,00 32,00
00300400385 25 1,50 to 2,00 M8 25,00 5,00 23,50 22,00 31,60
00300400386 25 1,50 to 2,00 M10 25,00 5,00 23,50 22,00 32,00
00300400387 28 1,50 to 2,00 M8 28,00 5,00 26,00 24,00 31,50
00300400388 28 1,00 to 1,50 M10 28,00 5,00 25,50 24,00 32,00
00300400389 30 1,50 to 2,00 M8 30,00 5,00 29,00 27,00 31,00
00300400390 32 1,50 to 2,00 M10 32,00 5,00 29,50 28,00 31,00
00300400391 35 1,20 to 2,00 M22 35,00 5,00 33,00 30,00 32,00
00300400392 38 1,50 to 2,00 M22 38,00 5,00 34,00 33,00 32,10
00300400393 40 1,00 to 2,00 M22 40,00 5,00 38,50 32,00 32,00
00300400394 42 1,50 to 2,00 M22 42,00 5,00 40,00 36,00 31,50
00300400395 50 1,50 to 2,00 M22 50,00 5,00 48,50 45,00 33,00

If you are interested in our family LJRK, you may be interested in these families as well:

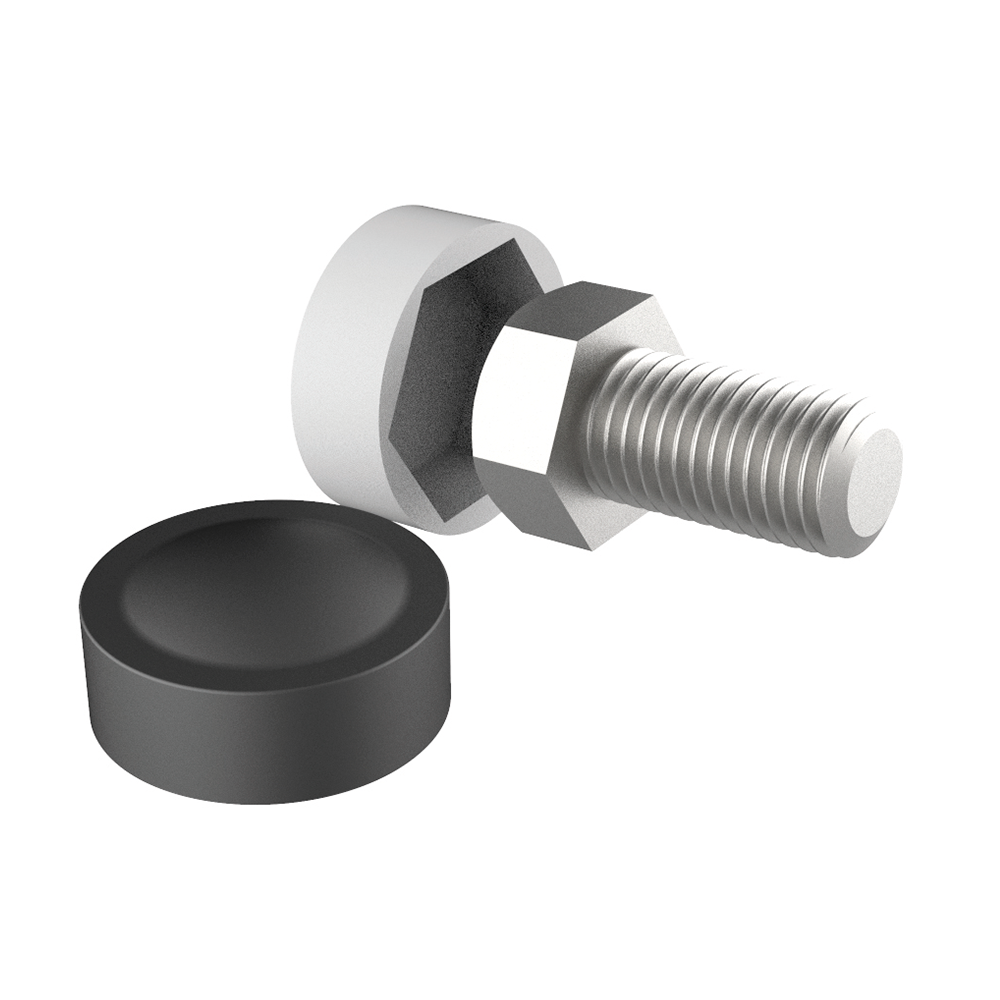

Rotatory wheel with brake made of polypropylene. Its threaded stud makes it ideal to be placed in threaded inserts. The recommended individual loading capacity is 50 kilos.   Our adjustable foot has a knurled base for easier handling.   Our trimming cover for round tubes is ideal for protecting adjustable feet, or in order to hide the end of a round tube to get a better finishing look. We recommend its use with the adjustable feet of our range.   Our LBKB cap is suitable for <b>DIN hex bolt heads and nuts</b>. It has been specially designed to cover the screw heads in such a way that they protrude as little as possible and, at the same time, embellish and protect from bumps and dirt. They cover a range from <b>M6 to M12</b> (suitable for DIN 933, 931, 961 and 960 screws). It also has a <b>UVA additive to prevent degradation as a result of sunlight and weathering conditions.</b> <br><br> During the manufacturing of these pieces we use an additive that favors their biodegradation without affecting their behavior during their useful life. <a href='/news/BIOADD-eng.pdf' target='_blank'>Check here for more details about the properties of the <b>biodegradable</b> additive. </a>   The wide range of <b>countersunk screw fixing hinges</b> includes thicknesses from 4mm to 10mm. They have applications in various sectors, such as machinery protection, joining of metal profiles, carpentry, furniture, etc. and have been designed to provide resistance and functionality to the opening and closing mechanisms, without losing sight of the aesthetics.<br> <br> * The <b>maximum angle of rotation of these hinges is 270º</b>, which allows the doors or windows to be adjusted as much as possible without excessively forcing their closure. Models with lower turning angles are also available. <br> * The <b>hinges</b> are made of PA630% GF (<b>Nylon 6 reinforced with 30% fiberglass</b>) and the <b>pin</b> is in <b>stainless steel</b>. <br> * On request they can be <b>supplied personalized with your logo</b>. <br> * The maximum working resistance (Weight Kgs.) Is a <b>value obtained from an approved external laboratory</b>.   Our adjustable foot has an hexagonal base.
