Our reinforced pipe ends with thread for round tubes have been designed for applications that must be highly resistant. The threaded insert is made of Nickel Plated Brass. It is also available in Stainless Steel. For other dimensions that do not appear in the list, contact us.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube (D)
Tube Thickness
Metric Thread (M)
H
L
d
Maximum Weight (Kgs.)
Maximum Weight (Newton)



More
Info.
04500800050 30 1,00 M8 6,00 35,00 28,50 326 3.200
04500800051 30 1,00 M10 6,00 35,00 28,50 326 3.200
04500800052 30 1,00 M12 6,00 35,00 28,50 326 3.200
04500800053 30 1,00 M14 6,00 35,00 28,50 326 3.200
04500800054 30 1,00 M16 6,00 35,00 28,50 326 3.200
04500800055 38 1,50 M8 8,00 43,00 35,50 560 5.500
00300410040 38 1,50 M10 8,00 43,00 35,50 560 5.500
04500800056 38 1,50 M12 8,00 43,00 35,50 560 5.500
04500800057 38 1,50 M14 8,00 43,00 35,50 560 5.500
04500800058 38 1,50 M16 8,00 43,00 35,50 560 5.500
04500800059 42 1,50 M8 8,00 42,00 39,50 662 6.500
04500800060 42 1,50 M10 8,00 42,00 39,50 662 6.500
04500800061 42 1,50 M12 8,00 42,00 39,50 662 6.500
04500800062 42 1,50 M14 8,00 42,00 39,50 662 6.500
04500800063 42 1,50 M16 8,00 42,00 39,50 662 6.500
04500800064 42 1,50 M20 8,00 42,00 39,50 662 6.500
04500800065 48 1,50 M8 11,00 49,00 45,50 815 8.000
04500800066 48 1,50 M10 11,00 49,00 45,50 815 8.000
04500800067 48 1,50 M12 11,00 49,00 45,50 815 8.000
04500800068 48 1,50 M14 11,00 49,00 45,50 815 8.000
04500800069 48 1,50 M16 11,00 49,00 45,50 815 8.000
04500800070 48 1,50 M20 11,00 49,00 45,50 815 8.000
04500800071 50 1,50 M8 11,00 49,00 47,50 866 8.500
04500800072 50 1,50 M10 11,00 49,00 47,50 866 8.500
00300410041 50 1,50 M12 11,00 49,00 45,50 866 8.500
04500800073 50 1,50 M14 11,00 49,00 47,50 866 8.500
04500800074 50 1,50 M16 11,00 49,00 47,50 866 8.500
04500800075 50 1,50 M20 11,00 49,00 47,50 866 8.500
04500800076 60 1,50 M14 12,00 50,00 57,50 1019 10.000
00300410042 60 1,50 M16 12,00 50,00 57,50 1.019 10.000
04500800077 60 1,50 M20 12,00 50,00 57,50 1019 10.000
04500800078 60 1,50 M24 12,00 50,00 57,50 1019 10.000
04500800079 60 2,00 M14 12,00 50,00 56,50 1019 10.000
00300410043 60 2,00 M16 12,00 50,00 56,50 1.019 10.000
04500800080 60 2,00 M20 12,00 50,00 56,50 1019 10.000
04500800081 60 2,00 M24 12,00 50,00 56,50 1019 10.000
04500800082 60 2,50 M14 12,00 50,00 55,50 1019 10.000
04500800083 60 2,50 M16 12,00 50,00 55,50 1019 10.000
04500800084 60 2,50 M20 12,00 50,00 55,50 1019 10.000
04500800085 60 2,50 M24 12,00 50,00 55,0 1019 10.000

If you are interested in our family LJRS, you may be interested in these families as well:

Our round reinforced tube inserts allow to assemble structures of tubes on levelling feet quickly. It has a nickel-plated brass threaded insert inside, which has been inserted during the injection process. It is also available for square tubes: JTPOA.   Our round reinforced tube inserts allow to assemble structures of tubes on levelling feet quickly. It has a nickel-plated brass threaded insert inside, which has been inserted during the injection process. It is also available for square tubes: JTPOA.   Our heavy duty adjustable foot has a reinforced tilting base of 15º  that resists a weight up to 1,478 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties. It can also be supplied with a non-slip base.
<br>

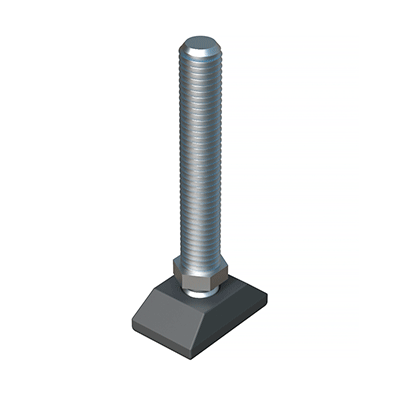

The standard product is made in stainless steel type 304 and it can also be made in type 316 on request.   The hex nut of the adjustable foot allows easier fitting.The part can be moved in an angle of 23º to 31º. If you want the part without the hex nut, please visit LHVKB.
