Our quick cable clamps are designed for one-handed installation. The design features an integrated ratchet fastener which eliminates the need for a screw or other fastener. The part is self-aligning, and the built-in handle allows for quick and easy installation without tools. The parts are suitable for many different wire, cable, or tubing routing applications.
  Possible to get dyed colors

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Panel Hole Size
Maximum diameter (D)
Panel thickness
A
C
B



More
Info.
00101100177 4,75 6,35 1,50 to 6,00 9,53 13,41 9,53
00101100178 4,75 7,94 1,50 to 6,00 9,53 13,41 9,53
00101100179 4,75 9,53 1,50 to 6,00 9,53 13,41 9,53
00101100180 4,75 11,10 1,50 to 6,00 9,53 13,41 9,53

If you are interested in our family MARR, you may be interested in these families as well:

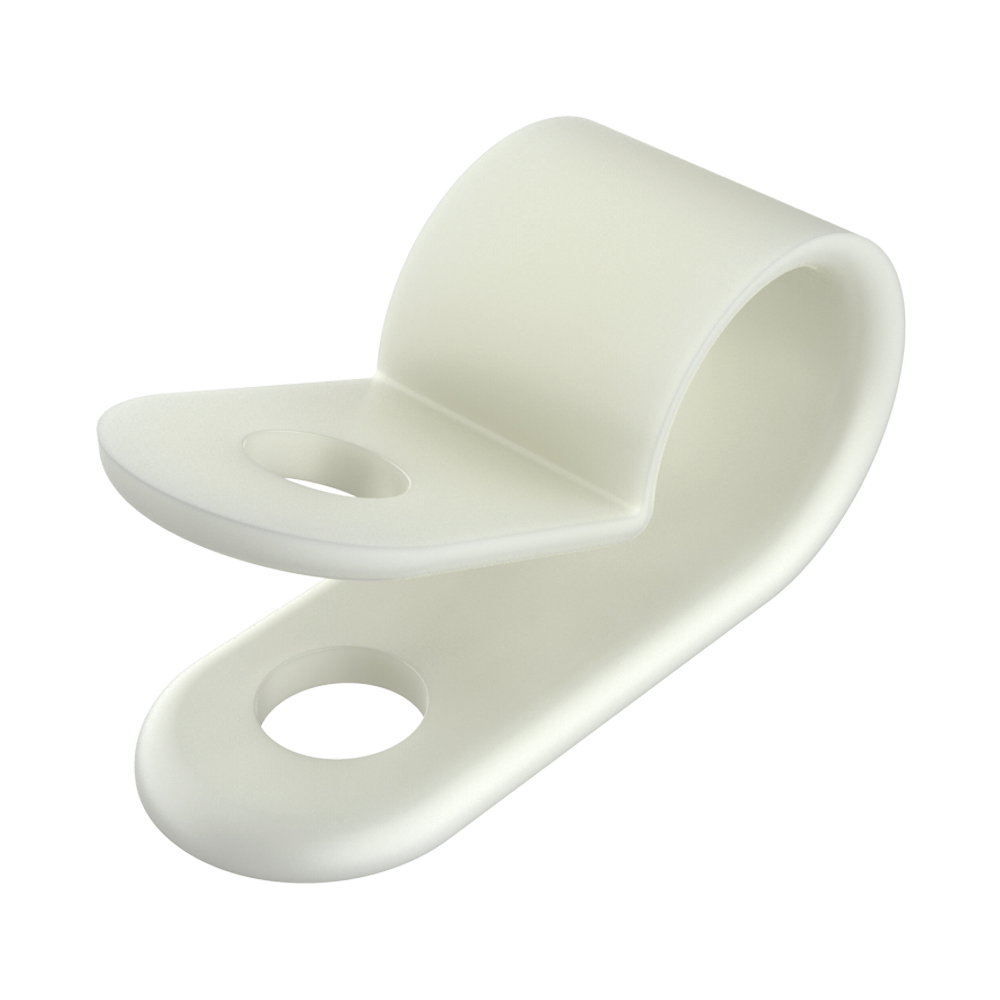

Las abrazaderas de sujeción <b>MAS</b> se utilizan en una amplia variedad de aplicaciones para la <b>fijación, guiado y protección</b> de <b>cables, mangueras, tubos, elementos de alumbrado y fibra óptica</b>. Facilitan el montaje y contribuyen a un correcto ordenado y aislamiento de las instalaciones.<br>
<br>

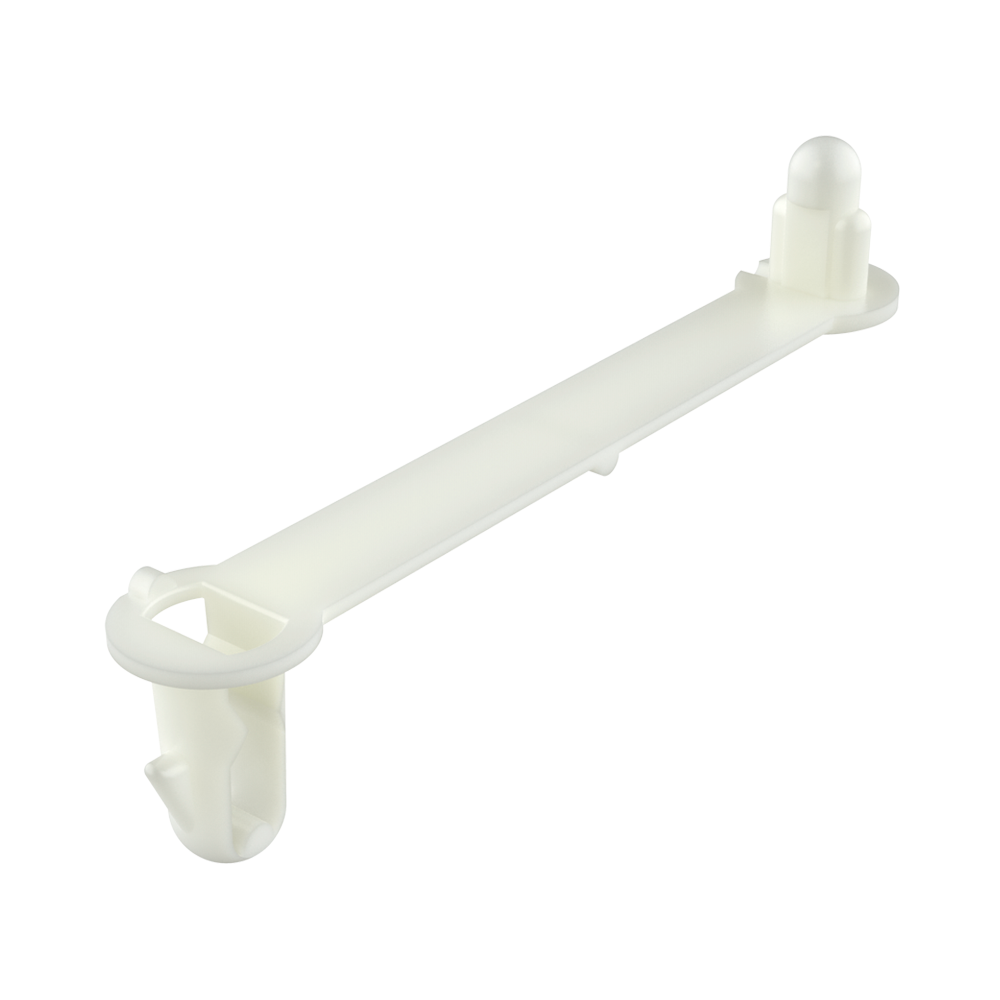

Fabricadas en <b>PA66 (nylon)</b>, ofrecen <b>alta resistencia mecánica</b>, buena estabilidad dimensional y una <b>elevada resistencia a agentes químicos</b>, lo que las hace adecuadas para un uso continuado en condiciones exigentes. Son una solución fiable para sectores como <b>automoción, electrónica, ingeniería mecánica, electrodomésticos y construcción industrial</b>.   The wire and tube retaining strap has to be fixed into a 6.35 mm hole. The other side simply inserts the pin end into the receiver end. The wire or tube is secured in place without screws.
