Our LJEO oval inserts are available with and without a steel nut and are ideal for adapting a leveling foot. There is the possibility of supplying it with a DIN985 nut and they can be manufactured in special colors beyond the standard black. For further details on this, please consult our commercial department.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube (DxB)
Tube Thickness (C)
L1
L
H



More
Info.
00300400469 30 x 15 1,50 15,00 30,00 5,00
00300400471 50 x 25 2,00 22,00 36,00 5,00
00300400472 50 x 25 2,00 22,00 36,50 5,00
00300400473 60 x 30 2,00 22,00 36,00 5,00

If you are interested in our family LJEO, you may be interested in these families as well:

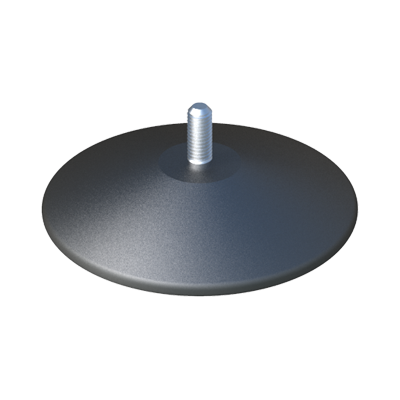

Our adjustable foot has a knurled base for easier handling.   Our adjustable foot with a hexagonal screw for easier fitting.   Our adjustable foot has a decorative round base.   The screw of our adjustable foot is in zinc coated steel, the cover in stainless steel and the base in polipropylene. The part is available without cover, please see our family LHVD. The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º.   Our adjustable foot is available without felted base (and in M6 size), please visit our family LK.   The part is available with movement, please visit our tilting adjustable foot MPG.
