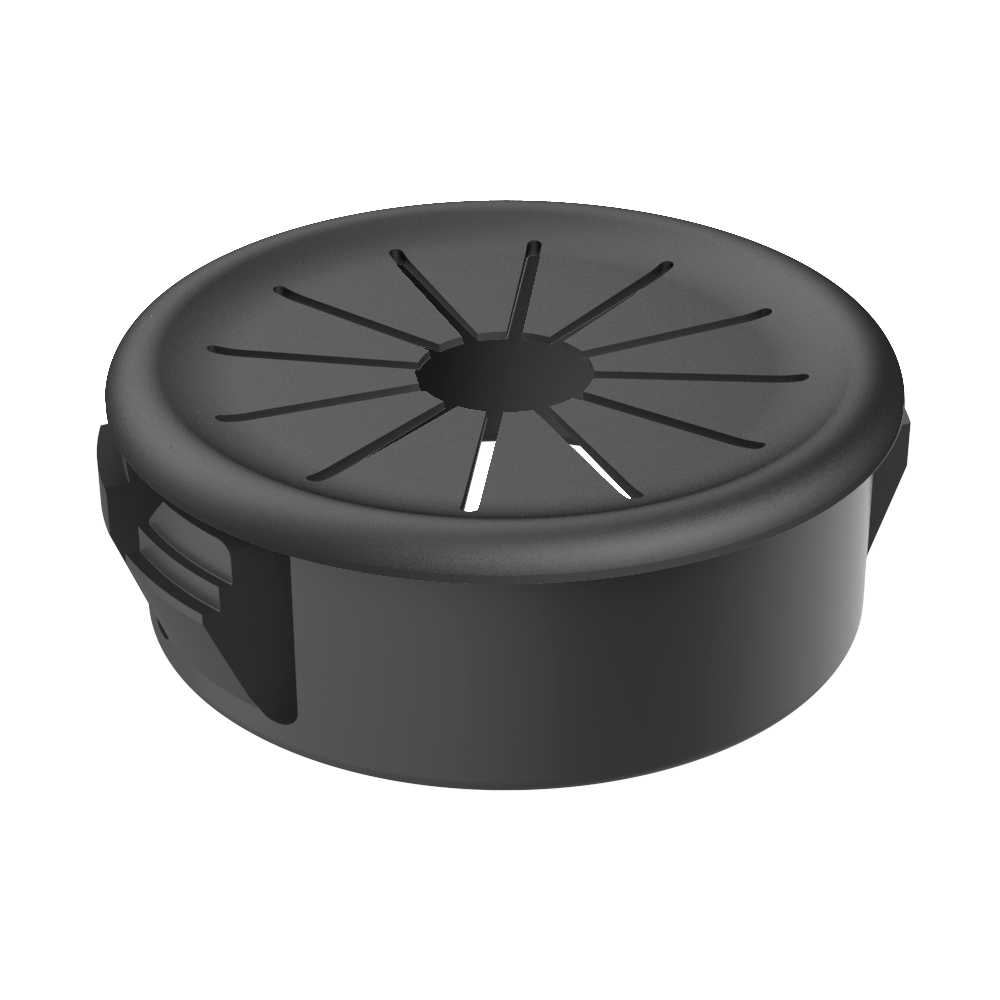

The split design of this open-close bushing allows side entry and encirclement of pre-assembled harnesses, capillary tubes or other assemblies.

Drawing PDF:
UL94:   V2
Measures expressed in: Millimeters

Hole size (A)
Panel thickness (G)
01012000144 12,70 3,20 14,30 10,30
01012000145 15,90 3,20 18,20 10,30
01012000146 19,00 3,20 20,60 10,30
01012000147 22,20 3,20 23,40 10,30
01012000148 25,40 3,20 27,00 10,30
01012000149 27,80 3,20 30,20 10,30
01012000170 31,80 3,20 37,30 10,30
01012000150 34,90 3,20 37,30 10,30
01012000151 38,10 3,20 40,10 10,70
