This molded grommeting can be used for round, square and irregular shaped panels. The molded grommeting is attached quickly and easily using no special tools. In addition to protecting routed cables, wires, tubing, and other objects from chafing or unnecessary cuts, the installed grommeting also adds an attractive finished touch to a product. Sheet form materials can include glass, sheet metal, and wood. In many cases flexible grommeting will grip the panel tightly and remain in place.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Panel thickness
L
C
A
G



More
Info.
01300100400 1,40 322 3,90 1,40 3,80
01300100401 2,30 322 3,90 2,30 4,40
01300100402 5,00 322 5,90 5,00 8,30

If you are interested in our family MPCC, you may be interested in these families as well:

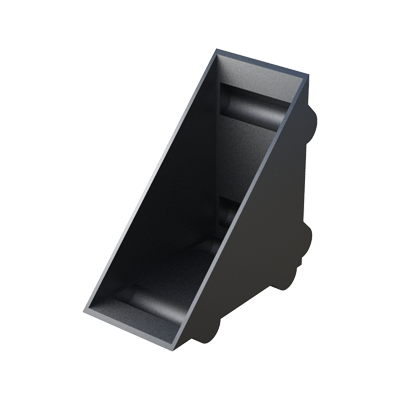

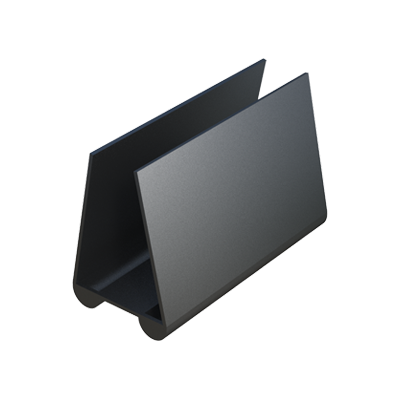

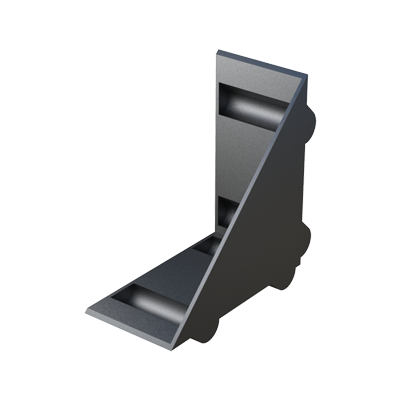

Corner protector cap suitable for furniture, panels, pictures, glass corners, etc… Available open, please visit our family LSEO.   Corner protector cap suitable for furniture, panels, pictures, glass corners, etc… Available close, please visit our family LSEK.   It is a metallic profile protector with a 90º angle. It fits at the end and avoids bumps and any other surface damage. It also can be used as a corner protection if they are fixed together.   The LSES protector protects the profiles from being scratched or hit. It can also be used with a strap.   The LSES protector protects the profiles from being scratched or hit. It can also be used with a strap.
