Our mini rivet is ideal for applications where the elements to be fixed may be subject to movement. Used for fastening and fixing a variety of materials with just a snap. Simply press together the male part and the female part for a fast and easy assembly. Male and female rivets are packaged and sold separately.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Hole size
Panel thickness
A
B
Female part
Male part
Requires the
Reference



More
Info.
00100300319 · · 6,35 1,27
00100300320 1,50 0,25 6,35 1,27     00100300319
00100300321 1,50 0,50 6,35 1,27     00100300319
00100300322 1,50 0,75 6,35 1,27     00100300319
00100300323 1,50 1,15 6,35 1,27     00100300319
00100300324 1,50 1,60 6,35 1,27     00100300319
00100300325 1,50 1,90 6,35 1,27     00100300319
00100300326 · · 9,55 1,91
00100300327 2,40 0,50 9,55 1,91     00100300326
00100300328 2,40 0,80 9,55 1,91     00100300326
00100300329 2,40 1,15 9,55 1,91     00100300326
00100300330 2,40 1,60 9,55 1,91     00100300326
00100300331 2,40 1,90 9,55 1,91     00100300326
00100300332 2,40 2,30 9,55 1,91     00100300326
00100300587 2,40 3,20 9,55 1,91     00100300326
00100300467 2,40 7,90 9,55 1,91     00100300326
01300100135 · · 10,20 2,50
01300100136 3,00 1,20 10,20 2,30     01300100135
01300100137 3,00 2,00 10,20 2,30     01300100135
01300100138 3,00 3,00 10,20 2,30     01300100135
01300100139 3,00 3,50 10,20 2,30     01300100135
01300100140 3,00 5,10 10,20 2,30     01300100135
01300100141 3,00 6,70 10,20 2,30     01300100135
00100300333 · · 12,70 2,54
00100300522 3,20 0,80 12,70 2,54     00100300333
00100300523 3,20 1,15 12,70 2,54     00100300333
00100300524 3,20 1,60 12,70 2,54     00100300333
00100300525 3,20 2,35 12,70 2,54     00100300333
00100300526 3,20 3,20 12,50 2,54     00100300333
00100300334 3,20 3,65 12,70 2,54     00100300333
00100300527 3,20 4,75 12,70 2,54     00100300333
00100300528 3,20 8,25 12,70 2,54     00100300333

If you are interested in our family MRBM, you may be interested in these families as well:

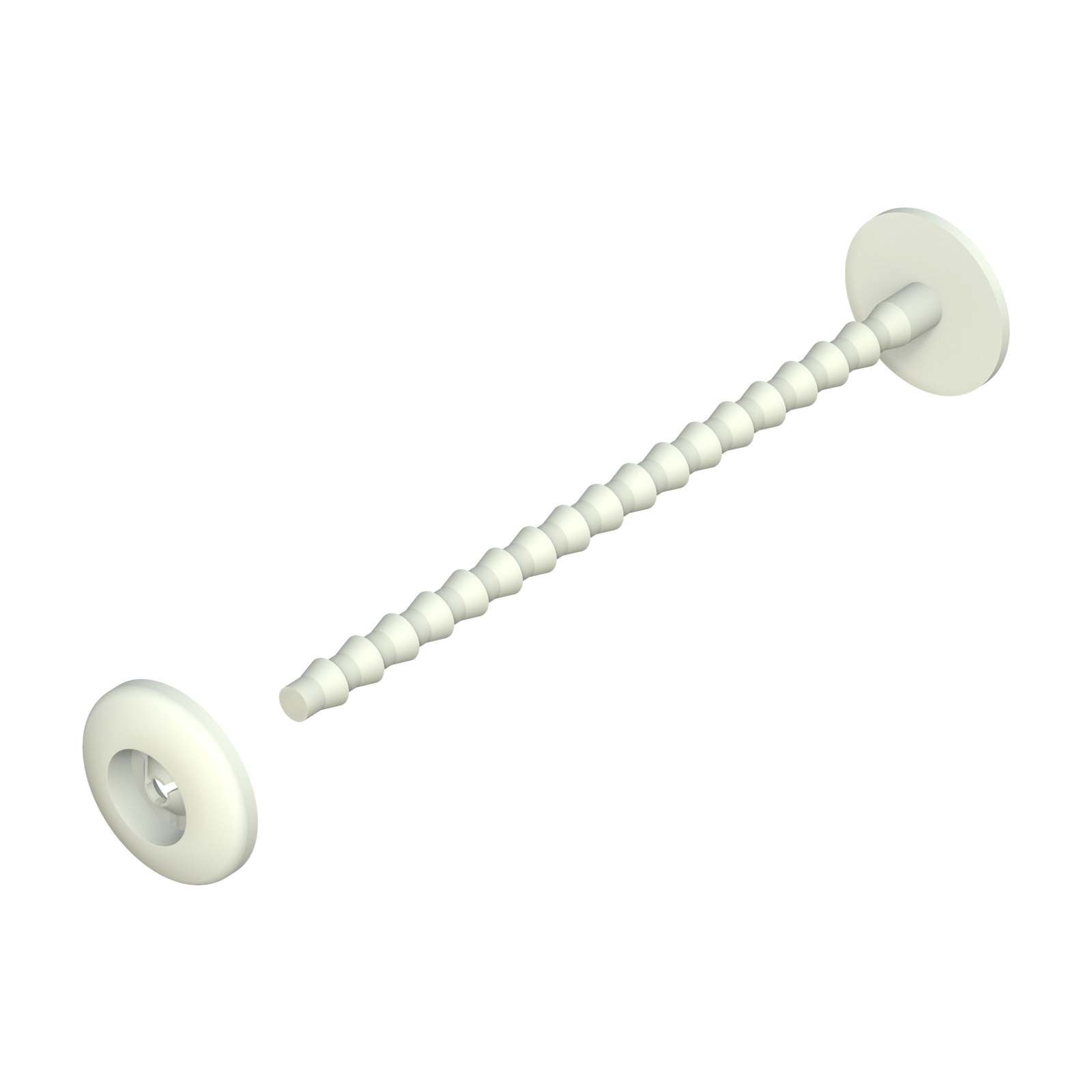

Our adjustable mini rivet male-female is ideal for applications where the elements to be fixed may be subject to movement. The most popular application is to fasten and file sheets, catalogues, samples and many other objects. The rivets are molded in tough, resilient, corrosion and chemical resistant material. The variable length adjustable rivets just have to be pushed  through the pre-punched holes, secured with a female rivet of the family and clipped to the desired length. Male and female rivets are packaged and sold separately.
