Our adjustable mini rivet male-female is ideal for applications where the elements to be fixed may be subject to movement. The most popular application is to fasten and file sheets, catalogues, samples and many other objects. The rivets are molded in tough, resilient, corrosion and chemical resistant material. The variable length adjustable rivets just have to be pushed through the pre-punched holes, secured with a female rivet of the family and clipped to the desired length. Male and female rivets are packaged and sold separately.
 RAL colors manufactured

Drawing PDF:
UL94:   V2*
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.
Video:


Reference
Hole size
Panel thickness
A
L / B
Female part
Male part
Requires the
Reference
Type of head design



More
Info.
00100300999 · · 9,60 1,85     00500600050
00500600049
1
00500600050 2,39 1,57 to 6,34 9,00 9,52 / 1,60     00100300999 ·
00500600049 2,39 1,57 to 9,52 9,00 12,80 / 1,60     00100300999 ·
00500600053 · · 12,70 2,41     00500600045
00500600048
2
00500600057 · · 12,80 2,54     00500600045
00500600048
1
04100100001 · · 16,00 1,60     00500600045
00500600048
3
00500600045 3,18 3,17 to 55,55 12,60 58,74 / 1,60     00500600053/5/7
0410010001
·
00500600048 3,18 3,17 to 98,40 12,60 100,00 / 1,60     00500600053/5/7
0410010001
·

If you are interested in our family MRBKX, you may be interested in these families as well:

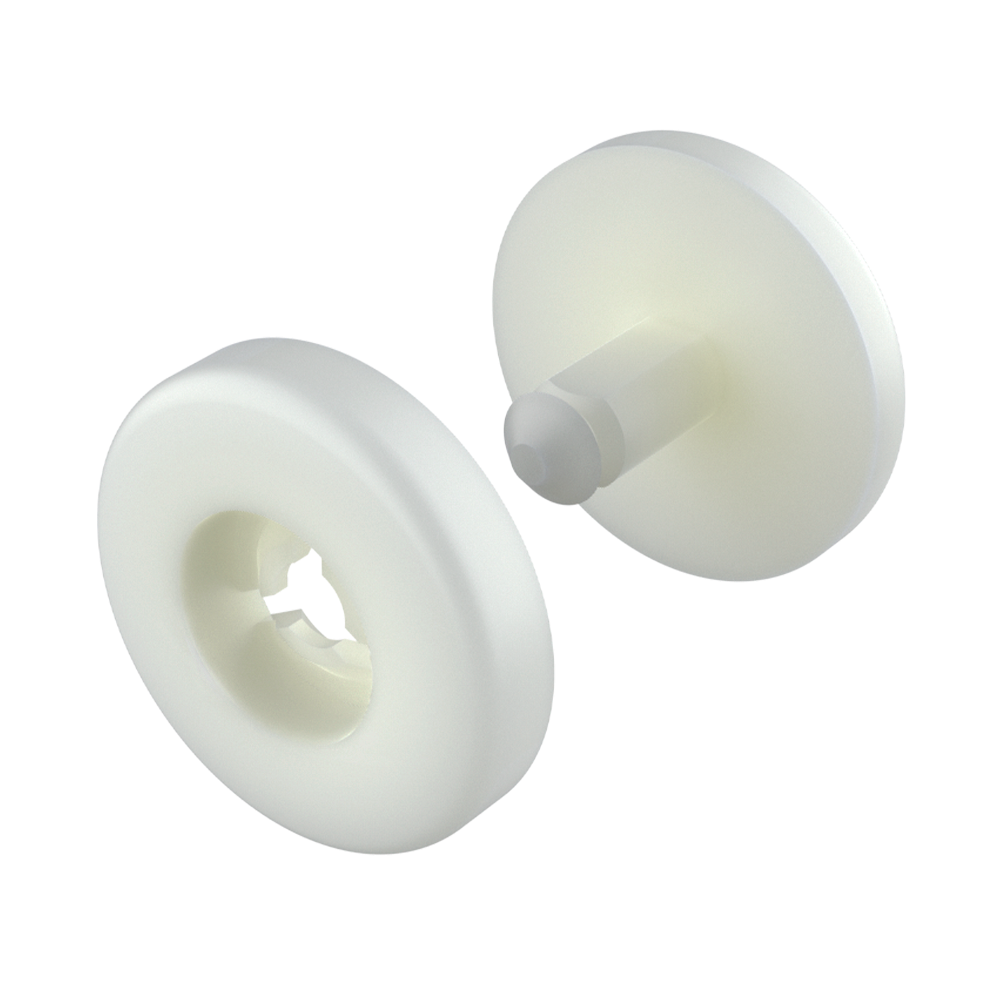

Our mini rivet is ideal for applications where the elements to be fixed may be subject to movement. Used for fastening and fixing a variety of materials with just a snap. Simply press together the male part and the female part for a fast and easy assembly. Male and female rivets are packaged and sold separately.
