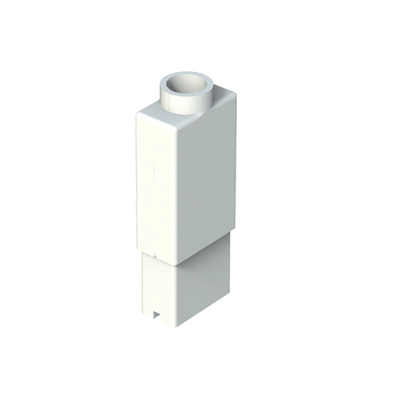

Our edge holder protects and insulates wires and cables from the edges of chassis and frames.Its installation to chassis and frames is very easy to complete.

Drawing PDF:
UL94:   V2/V0
IP:
RoHS:
Measures expressed in: Millimeters


Reference
W1
W2
L1
L2
L3
H
D
t



More
Info.
01012000812 187,00 3,60 3,60 3,60 6,40 / 3,00 7,90 / 4,50 13,50 / 5,40 15,50
01012000813 187,00 3,40 3,40 3,40 6,40 / 3,00 7,90 / 4,50 13,50 / 5,40 14,60
01012000814 205,00 4,00 4,00 4,00 7,00 / 3,20 8,70 / 4,70 15,00 / 5,80 15,50
01012000815 250,00 3,90 3,90 3,90 8,80 / 3,90 10,30 / 5,10 16,00 / 6,00 18,00
01012000816 250,00 5,00 5,00 5,00 8 80 / 5,00 10,20 / 6,40 16,90 / 7,20 17,80
