Double ended clip that permits two panels to be connected in an easy and secure way, from the center. No fastener head will be visable. This clip is simple and quick to install under fingertip pressure.

Drawing PDF:
UL94:   HB - V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Hole size
A
Panel thickness
A

A

B
Hole size
C
Panel Thickness
C

C

D



More
Info.
50003000002 4,00 2,60 to 6,30 7,80 1,75 4,00 2,60 to 6,30 7,80 7,50
01300100800 6,00 0,80 to 3,60 7,80 1,00 6,00 0,80 to 3,60 7,80 11,80
01000000003 6,35 0,50 to 6,90 11,10 2,79 6,35 0,50 to 6,90 11,10 8,20
01300100801 7,50 2,30 to 6,40 8,70 0,50 6,00 1,30 to 16,00 16,50 5,00
50003000001 7,50 3,00 to 8,00 17,50 1,00 7,50 3,00 to 8,00 17,50 19,00
01000000004 7,93 to 8,33 2,40 to 7,60 8,76 1,00 7,93 to 8,33 2,40 to 7,60 8,76 12,80
01000000001 7,93 to 8,33 3,20 to 9,50 21,88 1,10 7,93 to 8,33 3,50 to 19,00 11,25 12,70

If you are interested in our family HDEPR, you may be interested in these families as well:

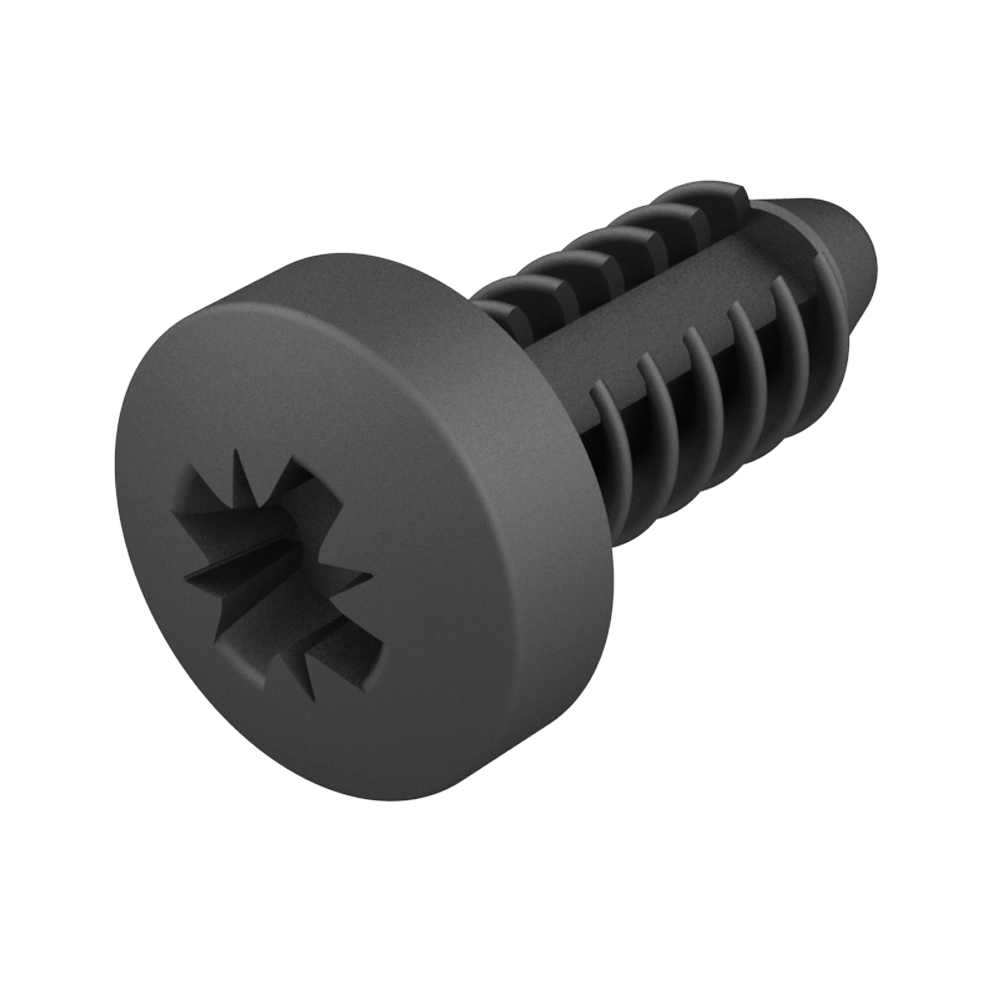

Our Clip-Screw with <b>Pozidriv cylindrical head</b> has a hybrid design that combines the advantages of a <b>clip</b> with those of a <b>screw</b> and even a <b>plug</b>.<br> <br>
*<i> Easy manual installation, it is fixed in a threaded hole by pressure, with the possibility of screwing it later if a stronger hold is required. There is also the option of removing it with a Pozidriv screwdriver, in the same way as a conventional screw, so it is also reusable.<br>
* Suitable for joining two panels with a metric knockout hole and for protecting or plugging threaded holes.<br>
* Offers a very good grip and a good finish. Made of Nylon 66 complying with the UL94V2 standard, it is resistant to corrosion, abrasion and vibration.</i><br> <br>
<b>Push it like a paper clip, remove it like a screw!</b>   Our Clip-Screw with <b>Phillips cylindrical head</b> has a hybrid design that combines the advantages of a <b>clip</b> with those of a <b>screw</b> and even a <b>plug</b>.<br><br>
* <i>Easy manual installation, it is fixed in a threaded hole by pressure, with the possibility of screwing it later if a stronger hold is required. There is also the option of removing it with a Phillips screwdriver, in the same way as a conventional screw, so it is also reusable.<br>
* Suitable for joining two panels with a metric knockout hole and for protecting or plugging threaded holes.<br>
* Offers a very good grip and a good finish. Made of Nylon 66 complying with the UL94V2 standard, it is resistant to corrosion, abrasion and vibration.</i><br><br>

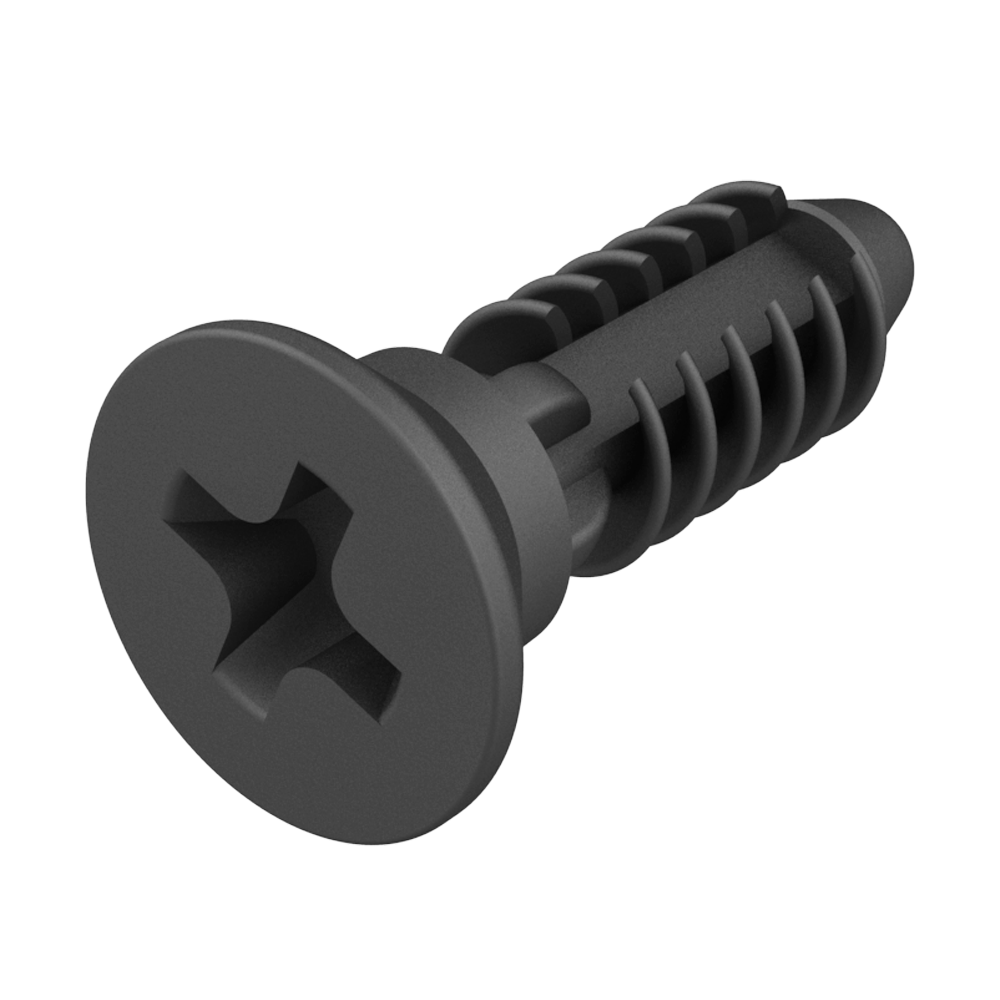

<b>Push it like a paperclip, remove it like a screw!</b>   Our Clip-Screw with <b>Phillips countersunk head</b> has a hybrid design that combines the advantages of a <b>clip</b> with those of a <b>screw</b> and even a <b>plug </b>.<br><br>
* <i>Easy manual installation, it is fixed in a threaded hole by pressure, with the possibility of screwing it later if a stronger hold is required. There is also the option of removing it with a Phillips screwdriver, in the same way as a conventional screw, so it is also reusable.<br>
* Suitable for joining two panels with a metric knockout hole and for protecting or plugging threaded holes.<br>
* Offers a very good grip and a good finish. Made of Nylon 66 complying with the UL94V2 standard, it is resistant to corrosion, abrasion and vibration.</i><br><br>

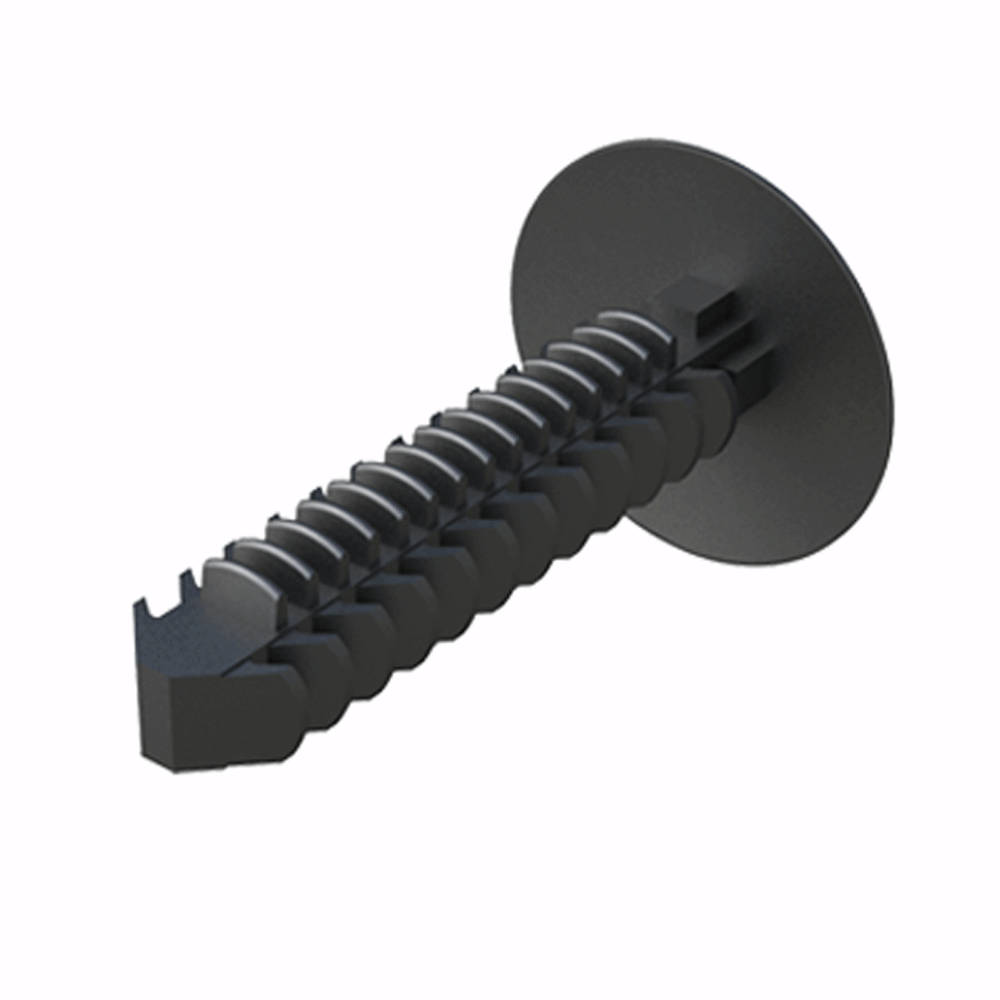

<b>Push it like a paperclip, remove it like a screw!</b>   This rivet - Christmas tree type clip offers a very good fastening system and assures a good finishing. Its offers an easy hand installation. This part is ideal for applications where there is a soft material (like textile) and a more rigid material. This Christmas tree type clip can be used in blind hole applications.This rivet-clip is molded in corrosion, abrasion, and vibration resistant nylon.
