This conical finishing washer has been designed for containing countersunk flat head screws. Our finishing washer protects furniture from scratching, covers misaligned holes, etc… This part may also be used as glide bumper, feet, and spacer. Please visit our families: Bumpers & Feet, and our family: Screws & Nuts.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
B
A
T
Metric
Thread
UNC/UNF
Thread
G



More
Info.
01012000300 3,10 9,30 2,00 M3 · 90º
04100200150 3,30 7,34 2,29 M3 · 82º
00100201213 3,63 11,10 2,54 M3,5 #6 82º
04100200151 3,70 11,10 2,60 M3,5 · 82º
00100201214 4,34 12,95 2,92 M4 #8 82º
04100200152 4,30 13,10 2,90 M4 · 82º
00100201215 4,85 14,73 3,86 · #10 82º
04100200153 4,95 14,73 3,86 M5 · 82º
03512000302 5,30 12,70 3,40 M5 · 90º
01012000302 5,30 15,00 3,50 M5 · 90º
00100201216 5,75 15,47 4,06 · #12 82º
04100200154 5,75 15,50 4,10 M6 · 82º
01012000303 6,20 17,30 4,00 M6 · 90º
00100201217 6,61 17,35 4,57 M6 1/4 in 82º
01012000304 8,20 22,50 6,00 M8 · 90º

If you are interested in our family MAAC, you may be interested in these families as well:

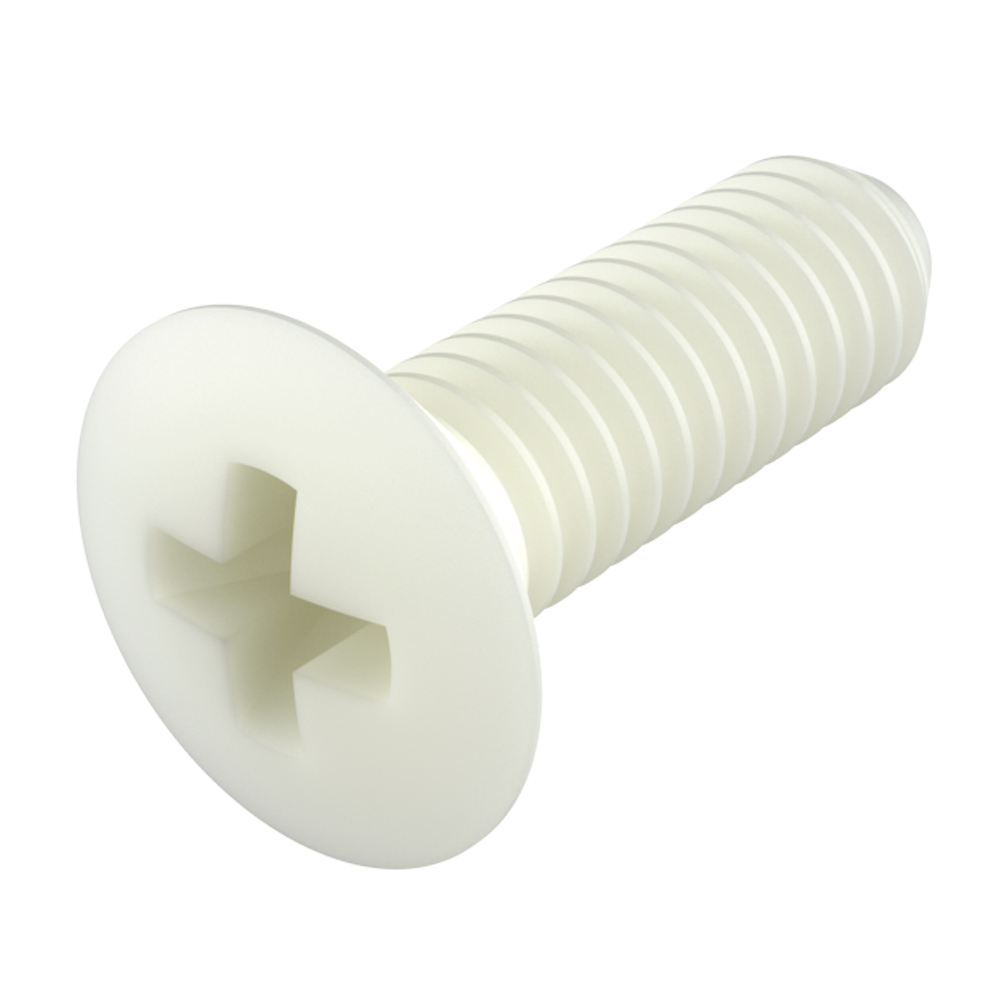

Our MTCGS metric thread screws with <b>oval phillips head</b>, similar to <b>DIN 34811 (DIN 966) / ISO 7047</b>, are manufactured in various <b>engineering materials</b> that promote properties such as chemical, mechanical, oxidation resistance, etc.<br><br>
These countersunk screws are available in <b>PA66</b> (Polyamide 66 “Nylon”), <b>PP</b> (Polypropylene), <b>POM</b> (Acetal Resin), <b>PVDF</b> (Polyvinylidene Fluoride), <b>PEEK</b> (Polyetheretherketone) and <b>PAGF</b> (Polyamide with the possibility of up to 50% fiberglass).<br><br>

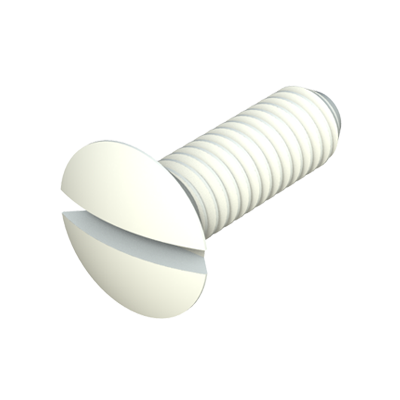

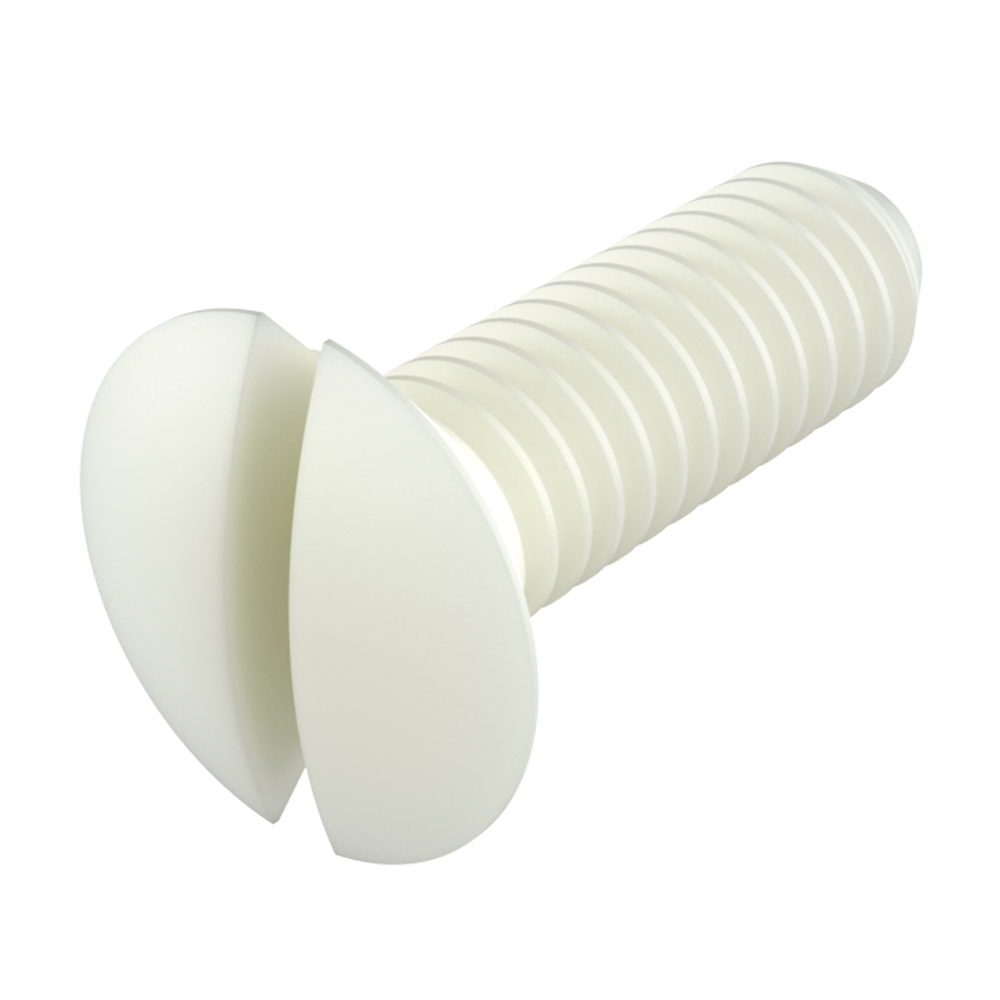

<i>M2.5 measurements are only supplied in PA66.</i><br>   Our MTCSR metric thread screws with <b>oval slotted head</b> , similar to <b>DIN 964 / ISO 2010</b>, are manufactured in various <b>engineering materials</b> that promote properties such as chemical, mechanical, oxidation resistance, etc.<br><br>
These countersunk screws are available in <b>PA66</b> (Polyamide 66 “Nylon”), <b>PP</b> (Polypropylene), <b>POM</b> (Acetal Resin), <b>PVDF</b> (Polyvinylidene Fluoride), <b>PEEK</b> (Polyetheretherketone) and <b>PAGF</b> (Polyamide with the possibility of up to 50% fiberglass).<br><br>

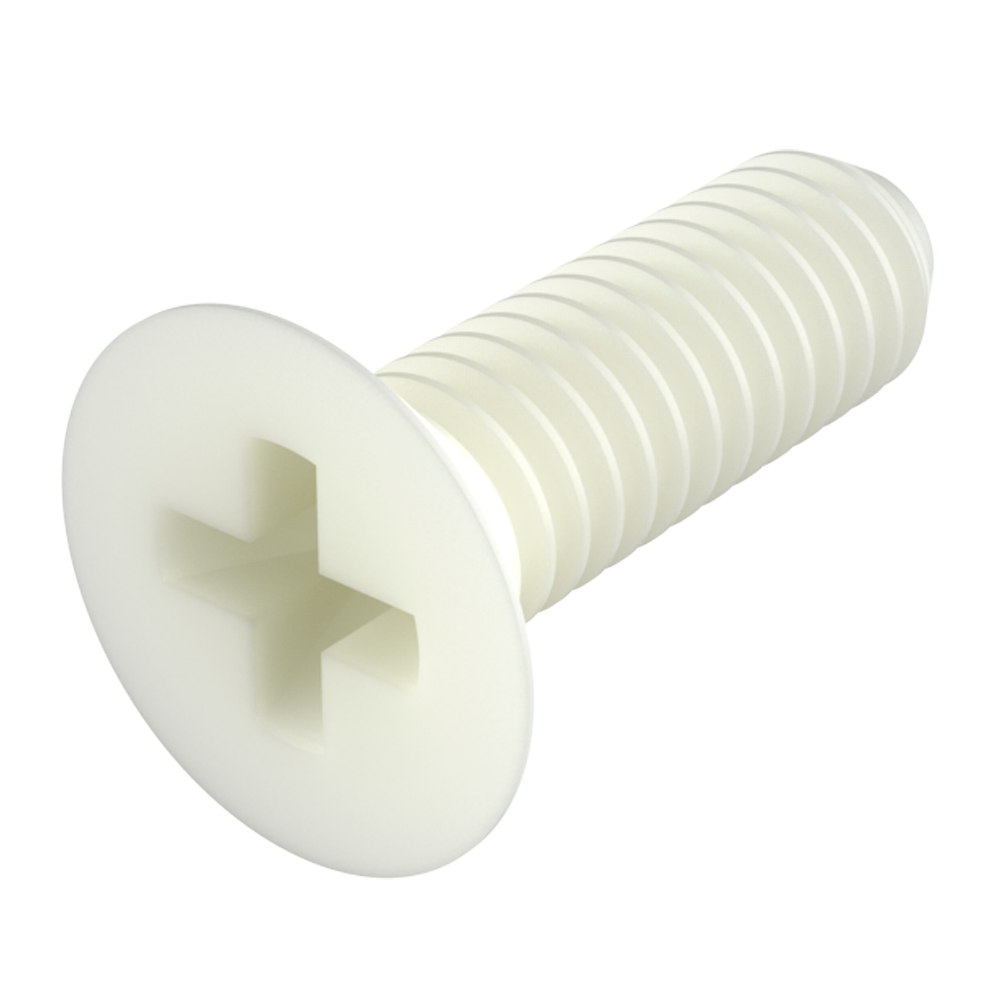

<i>The measurements of M2 and M2.5 are supplied only in PA66.</i><br>   Our flat <b>Phillips</b> head screws made of <b>PA66</b>, provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.   Our MTAR metric thread screws with <b>flat slotted head</b> , similar to <b>DIN 963 / ISO 2009</b>, are manufactured in various <b>engineering materials</b> that promote properties such as chemical, mechanical, oxidation resistance, etc.<br><br>
These countersunk screws are available in <b>PA66</b> (Polyamide 66 “Nylon”), <b>PP</b> (Polypropylene), <b>POM</b> (Acetal Resin), <b>PVDF</b> (Polyvinylidene Fluoride), <b>PEEK</b> (Polyetheretherketone) and <b>PAGF</b> (Polyamide with the possibility of up to 50% fiberglass).<br><br>

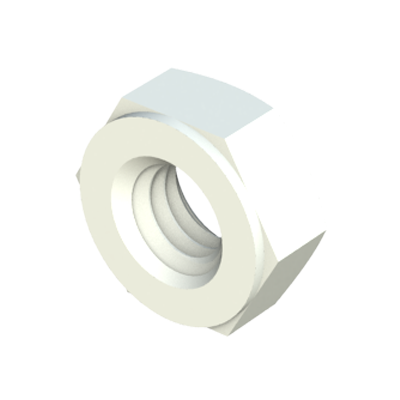

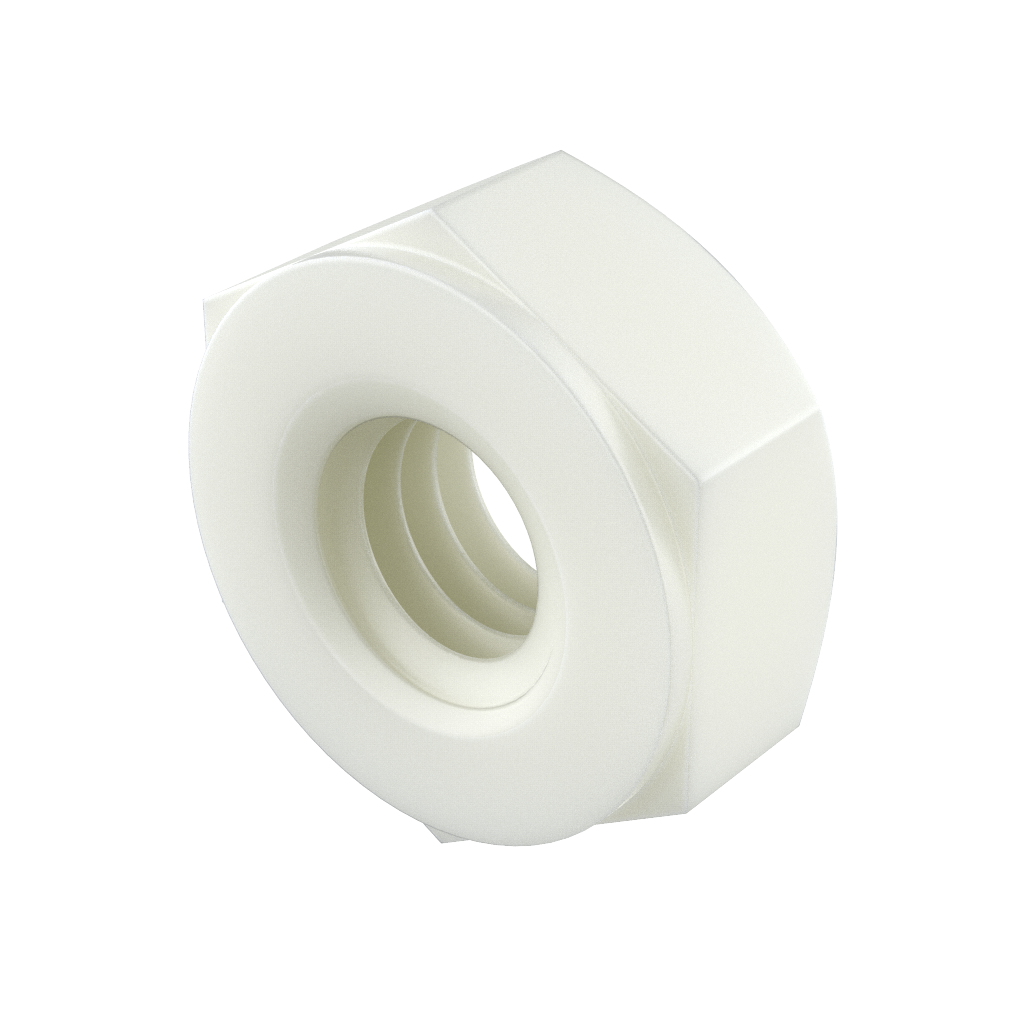

<i>The measurements of M2 and M2.5 are supplied only in PA66.</i><br>   Our MTH <b>hex</b> nuts with metric thread, similar to <b>DIN 2510</b>, made of <b>PA66</b> (Polyamide 66 “Nylon”), offer excellent resistance to chemical products (see technical sheet), a high level of dielectric strength, do not oxidize and prevent damage caused by overvoltage   Our nylon 82º flat head (countersunk head) screws provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress. Our flat head screws in polycarbonate are transparent.   Our nylon 100º flat head (countersunk head) screws provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.   Our nylon oval slotted head screws (raised countersunk slotted head screws) (DIN 964 screws) provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.   Our nylon hexagonal nuts (DIN 934 nuts) provide excellent resistance against chemicals (see table of properties). It is a material with a high level of dielectric strength, it does not rust and prevents damage due to breaking strength during mechanical stress.
