Our 4-way connector has been designed for square tubes. It is supplied without internal metal core or with an internal steel core.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
L
H



More
Info.
00201206445 20 x 20 1,50 36,00 20,00
00201206455 25 x 25 1,50 52,00 25,00
00201206463 30 x 30 2,00 47,00 30,00

If you are interested in our family THCCA, you may be interested in these families as well:

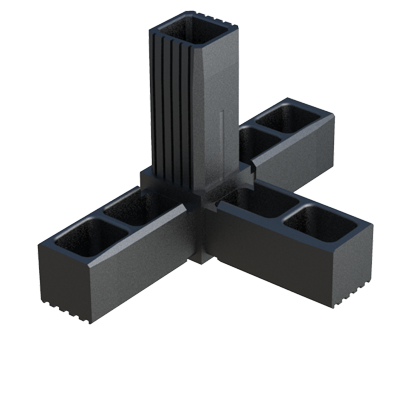

Our 3-way connector has been designed in order to connect square tubes.   Our hinge 4-way connector has been designed for square tubes. It has an angle which goes from 60º to 300º.   Our LE ribbed insert for square tubes, made of LDPE <b>(Low Density Polyethylene)</b> material, offer quick assembly and are available for a wide range of sizes.<br><br>
