Our C connector has been designed to connect 4 square tubes. It has a thread of M8 or M10, depending on the reference. More possibilities of sizes available under minimum order, consult us.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters

THCCB
THCCB

Reference
For Tube
Tube Thickness
L
H
Metric (M)



More
Info.
02300400224 25 x 25 1,50 52,00 25,00 M8
02300400225 25 x 25 1,50 52,00 25,00 M10
02300400290 30 x 30 2,00 47,00 30,00 M10

If you are interested in our family THCCB, you may be interested in these families as well:

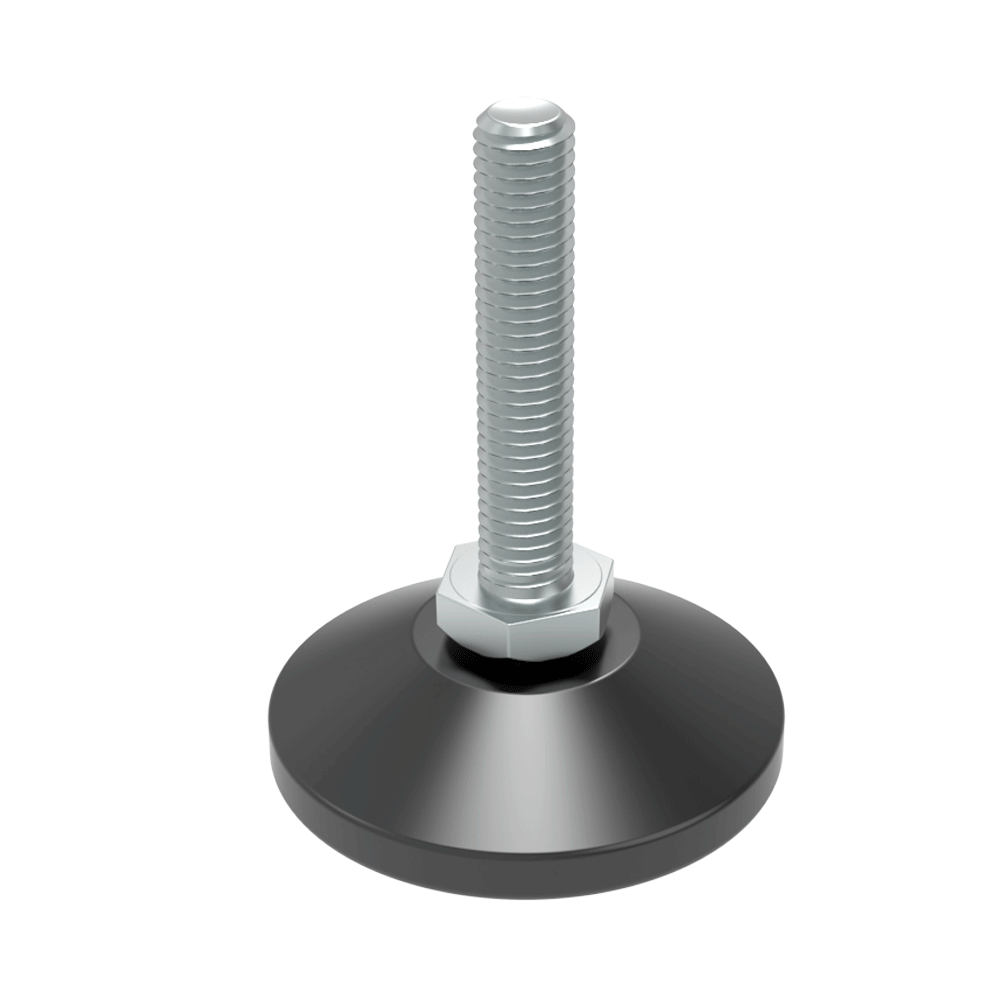

The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º. If you are interested in the same part without movement, see our family LHVF. Available with allen socket in the screw head. If you want this part with anti-skid base, please visit our family LHVDZ.   Our round adjustable foot has a steel cover. If you need it with an hexagonal nut for an easier assembly, see our family LHDE. If you want the part with movement or tilting, please visit our family MFDD.   The screw of our adjustable foot is in zinc coated steel, the cover in stainless steel and the base in polipropylene. The part is available without cover, please see our family LHVD. The hex nut of the adjustable foot allows easier fitting. There is a little space between the hexagonal nut and the base, that allows small movement of the screw, in an angle of about 3º.   Our 3-way connector has been designed for square tubes. It is supplied with an internal metal core. It has a thread of M8 or M10, depending on the reference.
