Our range of ETE technical nuts is manufactured in high-performance plastic materials, designed for demanding applications in sectors such as automotive, electronics, chemical industry, machinery, construction, and industrial interior design. They allow a significant weight reduction compared to metal, while maintaining strength, durability, and safety when the application allows.

Each material offers specific performance in thermal, mechanical, and chemical resistance. Below is a practical summary of the material we use to manufacture this nut:

  • POM: Up to 100 °C · Very good mechanical properties (rigidity and wear resistance) · Good chemical resistance

Need a visual comparison? Download our radial chart with the overall evaluation of each material. This summary is based on our internal analysis and does not imply a guarantee of use. For specific recommendations, please contact our technical-commercial team.


Download technical information

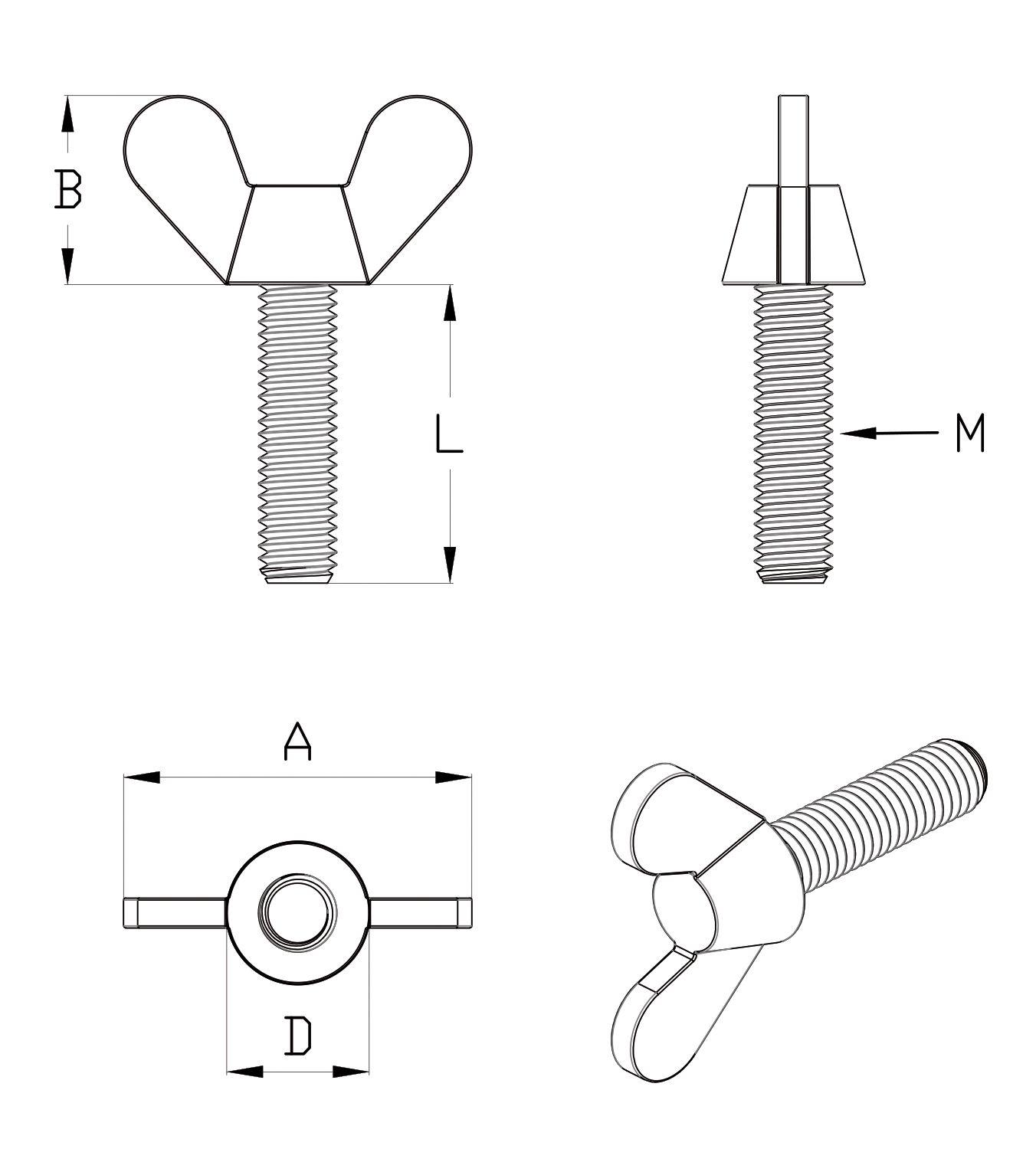

Drawing PDF:
UL94:   HB
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Metric Thread (M)
L
D
B
A
Material



More
Info.
01703000090 M5 15,00 11,00 11,00 21,00 POM
01703000091 M5 20,00 11,00 11,00 21,00 POM
01703000092 M5 25,00 11,00 11,00 21,00 POM
01703000093 M6 15,00 12,00 16,00 32,00 POM
01703000094 M6 20,00 12,00 16,00 32,00 POM
01703000095 M6 25,00 12,00 16,00 32,00 POM
01703000096 M8 15,00 12,00 16,00 32,00 POM
01703000097 M8 20,00 12,00 16,00 32,00 POM
01703000098 M8 25,00 12,00 16,00 32,00 POM
