The LHVB adjustable feet are manufactured in (ZCS) Zinc Plated Steel and have a DIN 558-4.6-A2F swivel screw with a hexagonal base and an inclination range of between 10º and 13º, according to reference. They offer a secure connection thanks to a T20 Torx screw (max. torque 3.4 Nm) that fixes the base with the screw.
Regarding the base, there are two options depending on the reference: without holes and with two holes that allow it to be screwed and firmly fixed to the ground (references ending in H).

These feet can hold around 650 kg, although we always recommend maintaining a safety margin. The feet must be adjusted without load and we do not recommend their use as sliders, but rather as static elements.

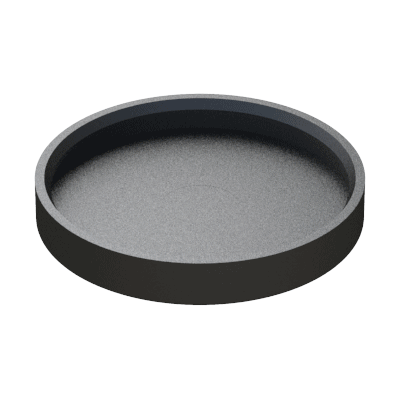

If you need to protect the surface from possible scratches/bumps, we suggest attaching the protective cap LKB, manufactured in (LDPE) Low-density polyethylene.

We offer special configurations upon request:

* Other lengths and thread measurements.
* Base in (SS) Stainless Steel.
* Hexagonal slot for Allen key at the upper end of the thread.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Metric Thread (M)
L
D
H
Type



More
Info.
00301201108 M8 16,00 30,00 11,00 to 13,00 1
00700500250 M8 16,00 30,00 11,00 to 13,00 2
00301201122 M8 16,00 40,00 11,00 to 13,00 1
00700500251 M8 16,00 40,00 11,00 to 13,00 2
00301200295 M8 16,00 45,00 11,00 to 13,00 1
00301201351 M8 16,00 50,00 11,00 to 13,00 1
00700500252 M8 16,00 50,00 11,00 to 13,00 2
00301201365 M8 16,00 60,00 11,00 to 13,00 1
00301201109 M8 20,00 30,00 11,00 to 13,00 1
00700500253 M8 20,00 30,00 11,00 to 13,00 2
00301201123 M8 20,00 40,00 11,00 to 13,00 1
00700500254 M8 20,00 40,00 11,00 to 13,00 2
00301200296 M8 20,00 45,00 11,00 to 13,00 1
00301201352 M8 20,00 50,00 11,00 to 13,00 1
00700500255 M8 20,00 50,00 11,00 to 13,00 2
00301201366 M8 20,00 60,00 11,00 to 13,00 1
00301201110 M8 30,00 30,00 11,00 to 13,00 1
00700500256 M8 30,00 30,00 11,00 to 13,00 2
00301201124 M8 30,00 40,00 11,00 to 13,00 1
00700500257 M8 30,00 40,00 11,00 to 13,00 2
00301200297 M8 30,00 45,00 11,00 to 13,00 1
00301201353 M8 30,00 50,00 11,00 to 13,00 1
00700500258 M8 30,00 50,00 11,00 to 13,00 2
00301201367 M8 30,00 60,00 11,00 to 13,00 1
00301201111 M8 40,00 30,00 11,00 to 13,00 1
00700500259 M8 40,00 30,00 11,00 to 13,00 2
00301201125 M8 40,00 40,00 11,00 to 13,00 1
00700500260 M8 40,00 40,00 11,00 to 13,00 2
00301200298 M8 40,00 45,00 11,00 to 13,00 1
00301201354 M8 40,00 50,00 11,00 to 13,00 1
00700500261 M8 40,00 50,00 11,00 to 13,00 2
00301201368 M8 40,00 60,00 11,00 to 13,00 1
00301201112 M8 50,00 30,00 11,00 to 13,00 1
00700500263 M8 50,00 30,00 11,00 to 13,00 2
00301201126 M8 50,00 40,00 11,00 to 13,00 1
00700500264 M8 50,00 40,00 11,00 to 13,00 2
00301200299 M8 50,00 45,00 11,00 to 13,00 1
00301201355 M8 50,00 50,00 11,00 to 13,00 1
00700500265 M8 50,00 50,00 11,00 to 13,00 2
00301201369 M8 50,00 60,00 11,00 to 13,00 1
00301201113 M8 60,00 30,00 11,00 to 13,00 1
00700500266 M8 60,00 30,00 11,00 to 13,00 2
00301201127 M8 60,00 40,00 11,00 to 13,00 1
00700500267 M8 60,00 40,00 11,00 to 13,00 2
00301200300 M8 60,00 45,00 11,00 to 13,00 1
00301201356 M8 60,00 50,00 11,00 to 13,00 1
00700500268 M8 60,00 50,00 11,00 to 13,00 2
00301201370 M8 60,00 60,00 11,00 to 13,00 1
00301201114 M8 70,00 30,00 11,00 to 13,00 1
00700500269 M8 70,00 30,00 11,00 to 13,00 2
00301201128 M8 70,00 40,00 11,00 to 13,00 1
00700500270 M8 70,00 40,00 11,00 to 13,00 2
00301200301 M8 70,00 45,00 11,00 to 13,00 1
00301201357 M8 70,00 50,00 11,00 to 13,00 1
00700500271 M8 70,00 50,00 11,00 to 13,00 2
00301201371 M8 70,00 60,00 11,00 to 13,00 1
00700500272 M8 80,00 30,00 11,00 to 13,00 2
00700500273 M8 80,00 40,00 11,00 to 13,00 2
00700500274 M8 80,00 50,00 11,00 to 13,00 2
00700500275 M8 90,00 30,00 11,00 to 13,00 2
00700500276 M8 90,00 40,00 11,00 to 13,00 2
00700500277 M8 90,00 50,00 11,00 to 13,00 2
00700500278 M8 100,00 30,00 11,00 to 13,00 2
00700500279 M8 100,00 40,00 11,00 to 13,00 2
00700500280 M8 100,00 50,00 11,00 to 13,00 2
00700500281 M8 120,00 30,00 11,00 to 13,00 2
00700500282 M8 120,00 40,00 11,00 to 13,00 2
00700500283 M8 120,00 50,00 11,00 to 13,00 2
00301201115 M10 16,00 30,00 11,50 to 15,00 1
00700500284 M10 16,00 30,00 11,50 to 15,00 2
00301201129 M10 16,00 40,00 11,50 to 15,00 1
00700500285 M10 16,00 40,00 11,50 to 15,00 2
00301200306 M10 16,00 45,00 11,50 to 15,00 1
00301201358 M10 16,00 50,00 11,50 to 15,00 1
00700500286 M10 16,00 50,00 11,50 to 15,00 2
00301201372 M10 16,00 60,00 11,50 to 15,00 1
00301201116 M10 20,00 30,00 11,50 to 15,00 1
00700500287 M10 20,00 30,00 11,50 to 15,00 2
00301201130 M10 20,00 40,00 11,50 to 15,00 1
00700500288 M10 20,00 40,00 11,50 to 15,00 2
00301200307 M10 20,00 45,00 11,50 to 15,00 1
00301201359 M10 20,00 50,00 11,50 to 15,00 1
00700500289 M10 20,00 50,00 11,50 to 15,00 2
00301201373 M10 20,00 60,00 11,50 to 15,00 1
00301201117 M10 30,00 30,00 11,50 to 15,00 1
00700500290 M10 30,00 30,00 11,50 to 15,00 2
00301201131 M10 30,00 40,00 11,50 to 15,00 1
00700500291 M10 30,00 40,00 11,50 to 15,00 2
00301200308 M10 30,00 45,00 11,50 to 15,00 1
00301201360 M10 30,00 50,00 11,50 to 15,00 1
00700500292 M10 30,00 50,00 11,50 to 15,00 2
00301201374 M10 30,00 60,00 11,50 to 15,00 1
00301201118 M10 40,00 30,00 11,50 to 15,00 1
00700500293 M10 40,00 30,00 11,50 to 15,00 2
00301201132 M10 40,00 40,00 11,50 to 15,00 1
00700500294 M10 40,00 40,00 11,50 to 15,00 2
00301200309 M10 40,00 45,00 11,50 to 15,00 1
00301201361 M10 40,00 50,00 11,50 to 15,00 1
00700500295 M10 40,00 50,00 11,50 to 15,00 2
00301201375 M10 40,00 60,00 11,50 to 15,00 1
00301201119 M10 50,00 30,00 11,50 to 15,00 1
00700500296 M10 50,00 30,00 11,50 to 15,00 2
00301201133 M10 50,00 40,00 11,50 to 15,00 1
00700500297 M10 50,00 40,00 11,50 to 15,00 2
00301200310 M10 50,00 45,00 11,50 to 15,00 1
00301201362 M10 50,00 50,00 11,50 to 15,00 1
00700500298 M10 50,00 50,00 11,50 to 15,00 2
00301201376 M10 50,00 60,00 11,50 to 15,00 1
00301201120 M10 60,00 30,00 11,50 to 15,00 1
00700500299 M10 60,00 30,00 11,50 to 15,00 2
00301201134 M10 60,00 40,00 11,50 to 15,00 1
00700500300 M10 60,00 40,00 11,50 to 15,00 2
00301200311 M10 60,00 45,00 11,50 to 15,00 1
00301201363 M10 60,00 50,00 11,50 to 15,00 1
00700500301 M10 60,00 50,00 11,50 to 15,00 2
00301201377 M10 60,00 60,00 11,50 to 15,00 1
00301201121 M10 70,00 30,00 11,50 to 15,00 1
00700500302 M10 70,00 30,00 11,50 to 15,00 2
00301201135 M10 70,00 40,00 11,50 to 15,00 1
00700500303 M10 70,00 40,00 11,50 to 15,00 2
00301200312 M10 70,00 45,00 11,50 to 15,00 1
00301201364 M10 70,00 50,00 11,50 to 15,00 1
00700500304 M10 70,00 50,00 11,50 to 15,00 2
00301201378 M10 70,00 60,00 11,50 to 15,00 1
00700500305 M10 80,00 30,00 11,50 to 15,00 2
00700500306 M10 80,00 40,00 11,50 to 15,00 2
00700500307 M10 80,00 50,00 11,50 to 15,00 2
00700500308 M10 90,00 30,00 11,50 to 15,00 2
00700500309 M10 90,00 40,00 11,50 to 15,00 2
00700500310 M10 90,00 50,00 11,50 to 15,00 2
00700500311 M10 100,00 30,00 11,50 to 15,00 2
00700500312 M10 100,00 40,00 11,50 to 15,00 2
00700500313 M10 100,00 50,00 11,50 to 15,00 2
00700500314 M10 120,00 30,00 11,50 to 15,00 2
00700500315 M10 120,00 40,00 11,50 to 15,00 2
00700500316 M10 120,00 50,00 11,50 to 15,00 2
