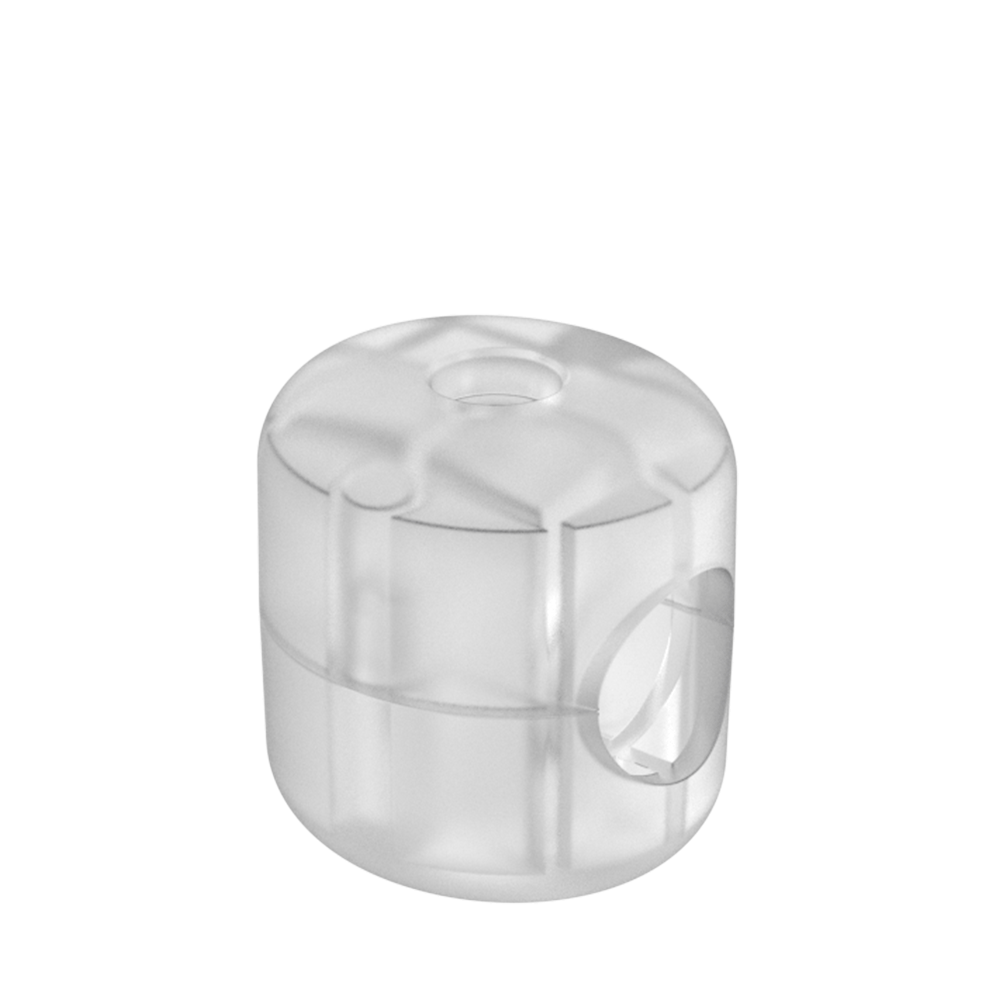

The AKCAS chair bumper is designed to protect and cushion the contact between chairs when they are stacked, preventing damage and reducing noise. Manufactured from recycled LDPE and LLDPE, the latter offering better/higher friction resistance compared to the recycled version, it is available in black and natural translucent. Compatible with tubes of Ø16, Ø18, Ø19, and Ø20 mm, it offers two stacking height options: 7 mm and 12 mm, adapting to different configurations.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.
Video:

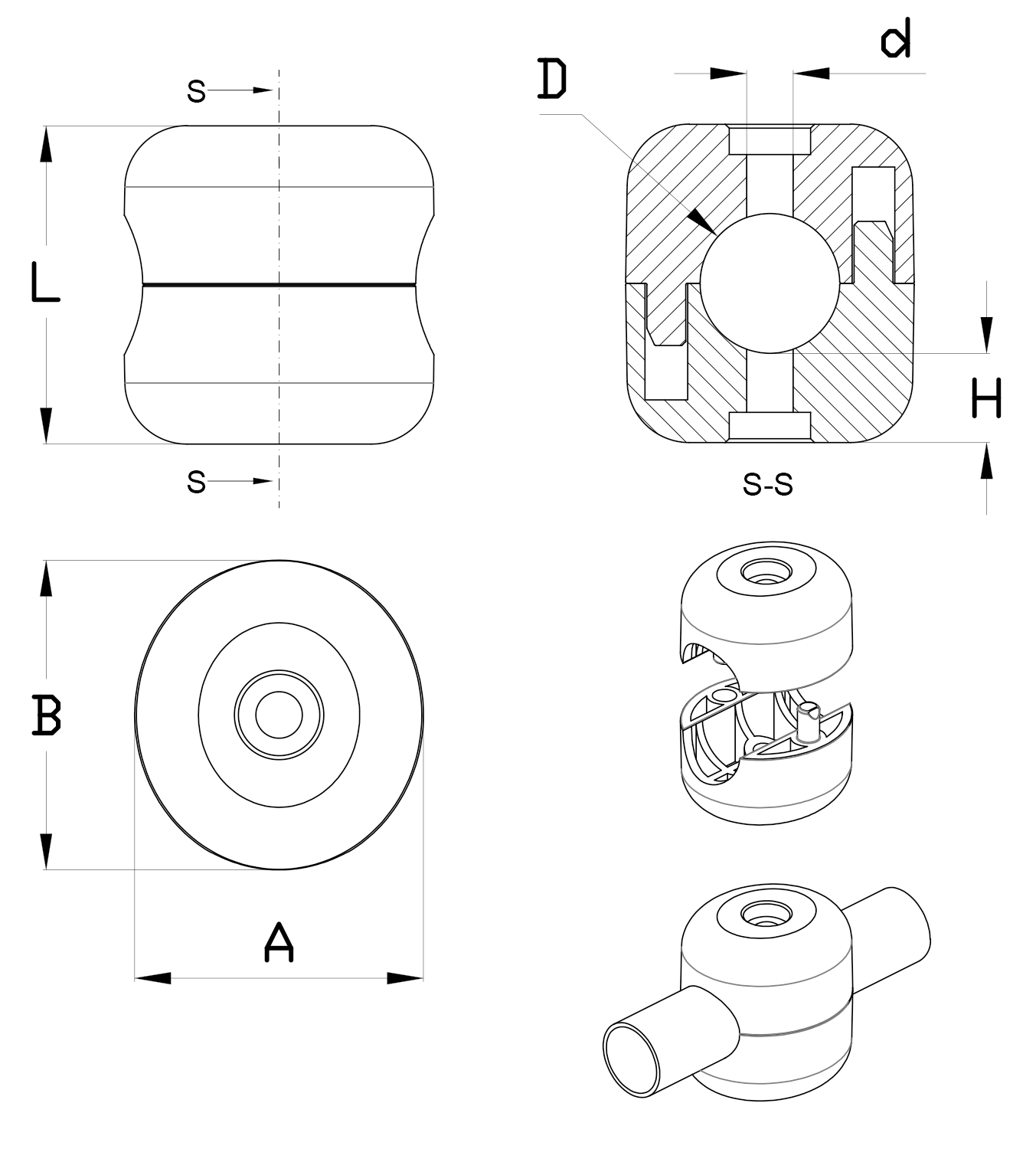

Reference
For tube (D)
A
B
H
L
d



More
Info.
02500600180 16 34,00 36,00 12,00 39,80 6,00
02500600181 16 34,00 36,00 7,00 30,00 6,00
02500600182 18 38,00 40,00 12,00 41,80 6,00
02500600183 18 38,00 40,00 7,00 31,80 6,00
02500600184 19 38,00 40,00 12,00 42,90 6,00
02500600185 19 38,00 40,00 7,00 32,80 6,00
02500600186 19 38,00 40,00 12,00 44,00 6,00
02500600187 20 38,00 40,00 7,00 33,50 6,00
