Our square ribbed tube insert has been designed for getting a good finishing part. It is also available for rectangular tubes: LFS.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube
Tube Thickness
D
H
d
L
d1



More
Info.
00300400131 20 x 20 1,50 20,00 5,00 15,00 12,00 19,00
00300400693 22 x 22 1,50 22,00 5,00 17,50 14,00 21,00
00300400132 25 x 25 1,50 25,00 5,00 20,00 13,50 24,50
00300400133 30 x 30 1,50 30,00 5,00 24,00 13,50 29,00
00300400134 35 x 35 1,50 35,00 5,00 27,80 14,50 34,00
00300400135 40 x 40 1,50 40,00 5,00 33,50 14,00 38,50
00300401146 50 x 50 1,00 to 2,00 50,50 5,00 45,00 19,50 49,50
00300400694 80 x 80 1,50 80,00 6,00 71,00 17,00 79,00

If you are interested in our family LES, you may be interested in these families as well:

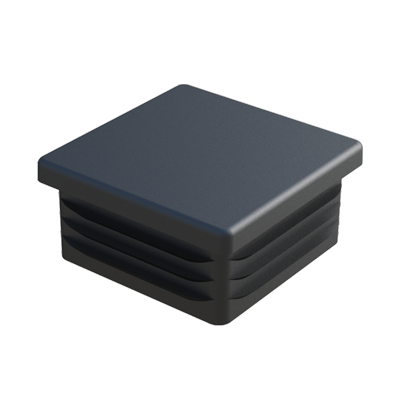

Our LE ribbed insert for square tubes, made of LDPE <b>(Low Density Polyethylene)</b> material, offer quick assembly and are available for a wide range of sizes.<br><br>

Depending on the reference, the design of the ribs can be completely continuous around the body of the article itself or present interruptions. These ribs improve the fixation of the tip inside the tube. For applications in which the pieces are subject to friction forces with the ground, we recommend references with a head thickness (H dimension) greater than 4.00 mm.<br><br>

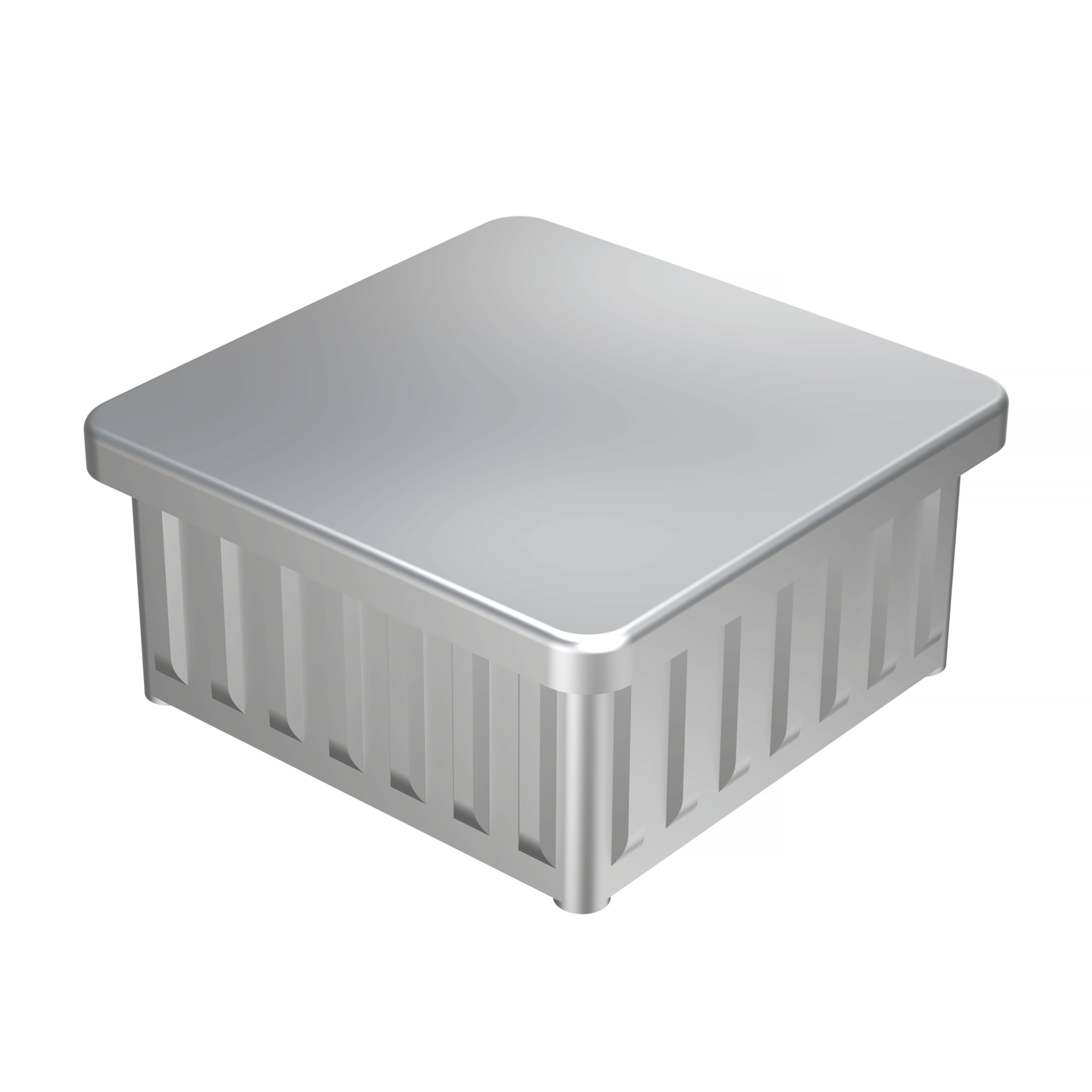

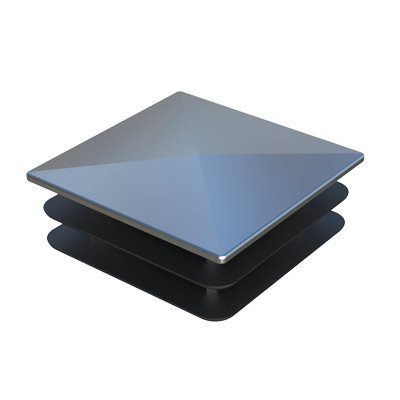

Available in <b>Black, White and Grey</b>. Consult our commercial department if you are looking for a different size, design or color.   Our ribbed insert with steel base (NOT stainless) is for square tubes, but we also have it available for round tubes: TGLM, rectangular tubes: TGLMX and for oval tubes: TGLMO.   Our <b>square chrome</b> MTGLA inserts are manufactured in <b>ABS</b>, an ideal material for the chrome plating process to which this product family is subjected. <br><br>

The <b>standard</b> galvanic treatment offers a high-quality aesthetic finish and is exclusively for <b>interior</b> use.<br><br>

These plugs are available with the finish <i>Bright/polished chrome - Matte/satin chrome - Bright/polished nickel - Matte/satin nickel - Bright/polished gold - Matte/satin gold – Stainless Steel</i>, as well as with the option <b>personalization by laser engraving</b>.<br><br>

Under a minimum order, we can carry out <b>specific treatments</b> with different deposit protocols, depending on the needs of each client. For a part suitable for <b>outdoor/outdoor use</b>, with <b>corrosion resistance</b> due to <b>UV rays and humidity</b>, please contact our commercial department to study the project. <br><br>

If you want this same piece in ABS <b>black</b>, consult our family <b><a href=' https://www.iscsl.co.uk/square-tube-insert-abs/mtglp/ ' target='_top'>MTGLP</a></b>.
