Our ribbed insert for square tubes has been designed in 2 parts with an hexagon nut included in the set. It is also available for rectangular tubes: LJVZ. It is suitable for our adjustable feet.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters

LJV
LJV

Reference
For Tube (D)
Tube Thickness
Metric Thread
H
L



More
Info.
02300400951 18 x 18 1,00 to 1,50 M8 5,00 34,00
02300400952 20 x 20 1,50 to 2,00 M6 5,00 34,00
02300400953 20 x 20 1,50 to 2,00 M8 5,00 34,00
02300400954 20 x 20 1,50 to 2,00 M10 10,00 33,00
02300400955 20 x 20 2,00 M8 5,00 34,00
00300400348 22 x 22 1,50 to 2,00 M8 5,00 34,00
02300400958 25 x 25 1,00 to 1,50 M8 5,00 34,00
02300400959 25 x 25 1,50 M10 5,00 33,00
02300400962 25 x 25 2,00 M8 5,00 34,00
02300400963 25 x 25 2,00 M10 5,00 34,00
02300400964 25 x 25 3,00 M10 5,00 33,00
02300400965 30 x 30 1,00 to 1,50 M10 5,00 34,00
02300400966 30 x 30 1,50 to 2,00 M8 5,00 34,00
02300400967 30 x 30 1,50 to 2,00 M10 5,00 34,00
02300400968 30 x 30 2,00 M10 5,00 34,00
02300400969 30 x 30 2,50 M10 5,00 33,00
02300400970 30 x 30 2,50 M10 5,00 33,00
02300400971 32 x 32 2,00 M10 5,00 33,00
02300400972 35 x 35 1,00 to 2,00 M10 5,00 34,00
02300400974 35 x 35 1,50 to 2,00 M8 5,00 34,00
02300400973 35 x 35 1,50 M12 5,00 34,00
02300400975 35 x 35 1,50 to 2,00 M12 5,00 34,00
02300800020 35 x 35 2,00 M10 5,00 33,00
02300800023 37,5 x 37,5 1,50 M10 5,00 36,60
02300400981 40 x 40 1,20 to 1,50 M10 5,00 33,00
02300400979 40 x 40 1,50 to 2,00 M8 5,00 33,00
02300400980 40 x 40 1,50 to 2,00 M10 5,00 25,00
02300400982 40 x 40 1,50 to 2,00 M10 5,00 33,00
02300400983 40 x 40 1,50 to 2,00 M12 5,00 33,00
02300400984 40 x 40 1,50 to 2,00 M16 5,00 33,00
02300401005 40 x 40 2,00 M8 5,00 32,00
02300400986 40 x 40 3,00 M10 5,00 33,00
02300400988 45 x 45 1,50 to 2,00 M8 5,00 34,00
02300400989 50 x 50 1,50 M10 5,00 34,00
02300400990 50 x 50 2,00 M8 5,00 34,00
00300401064 50 x 50 2,00 M10 5,00 32,00
02300400992 50 x 50 2,50 M10 5,00 33,00
02300400993 50 x 50 3,00 M10 5,00 34,00
02300400994 50 x 50 3,00 M12 5,00 34,00
02300400995 55 x 55 2,00 M10 5,00 34,00
00300400349 60 x 60 1,50 to 2,00 M10 5,00 34,00
02300400996 60 x 60 1,50 to 2,00 M10 5,00 34,00
00300400350 60 x 60 1,50 to 2,00 M12 5,00 34,00

If you are interested in our family LJV, you may be interested in these families as well:

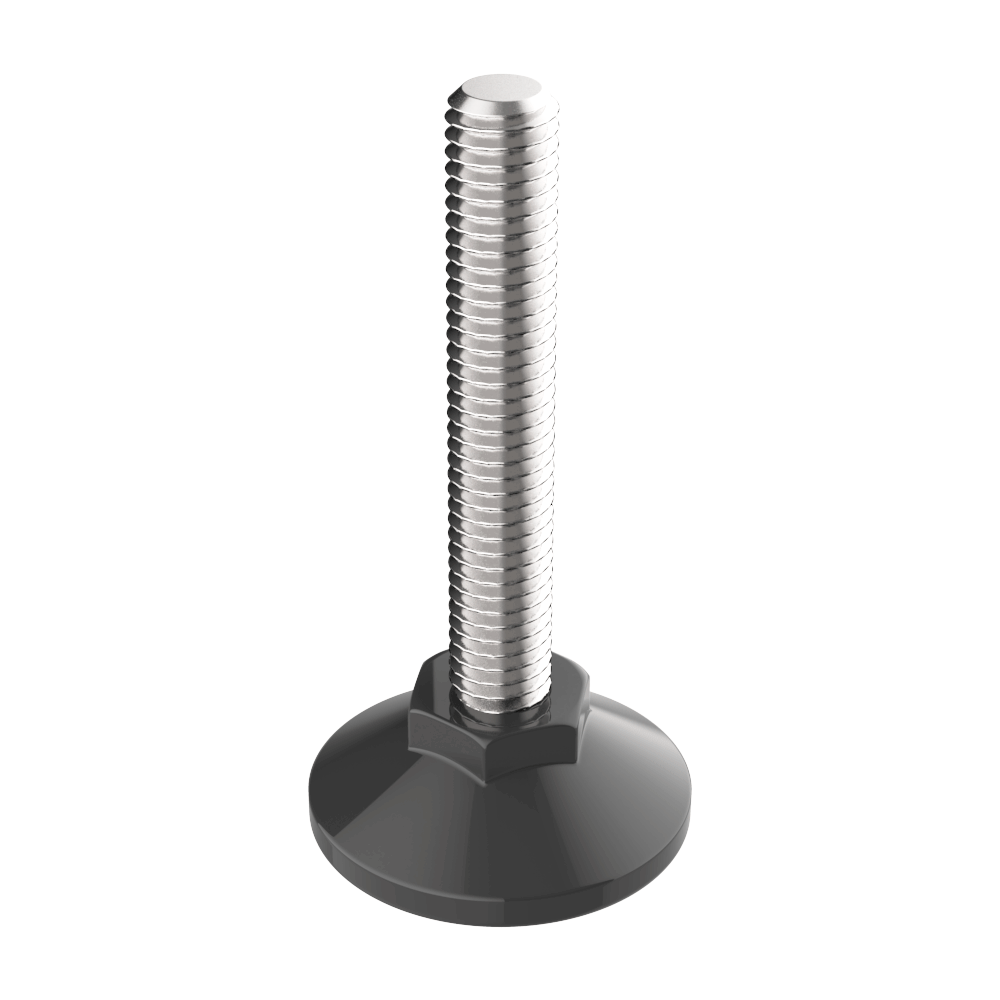

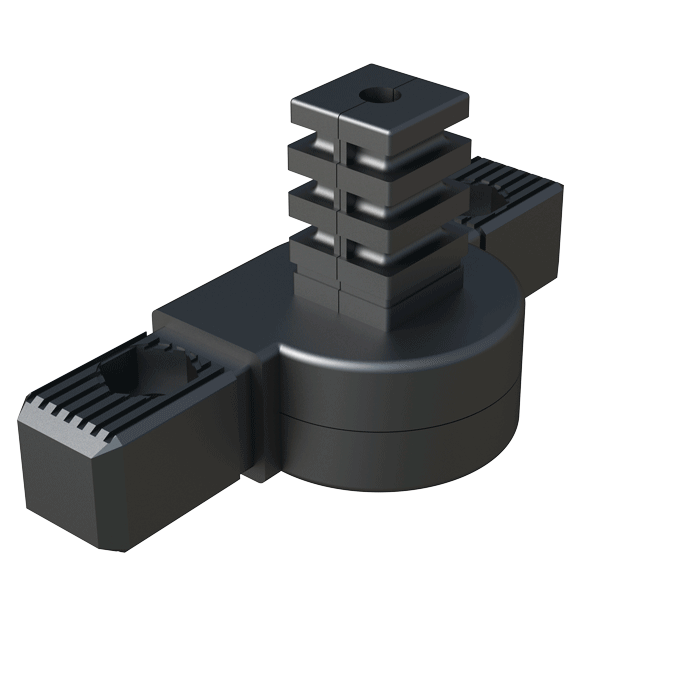

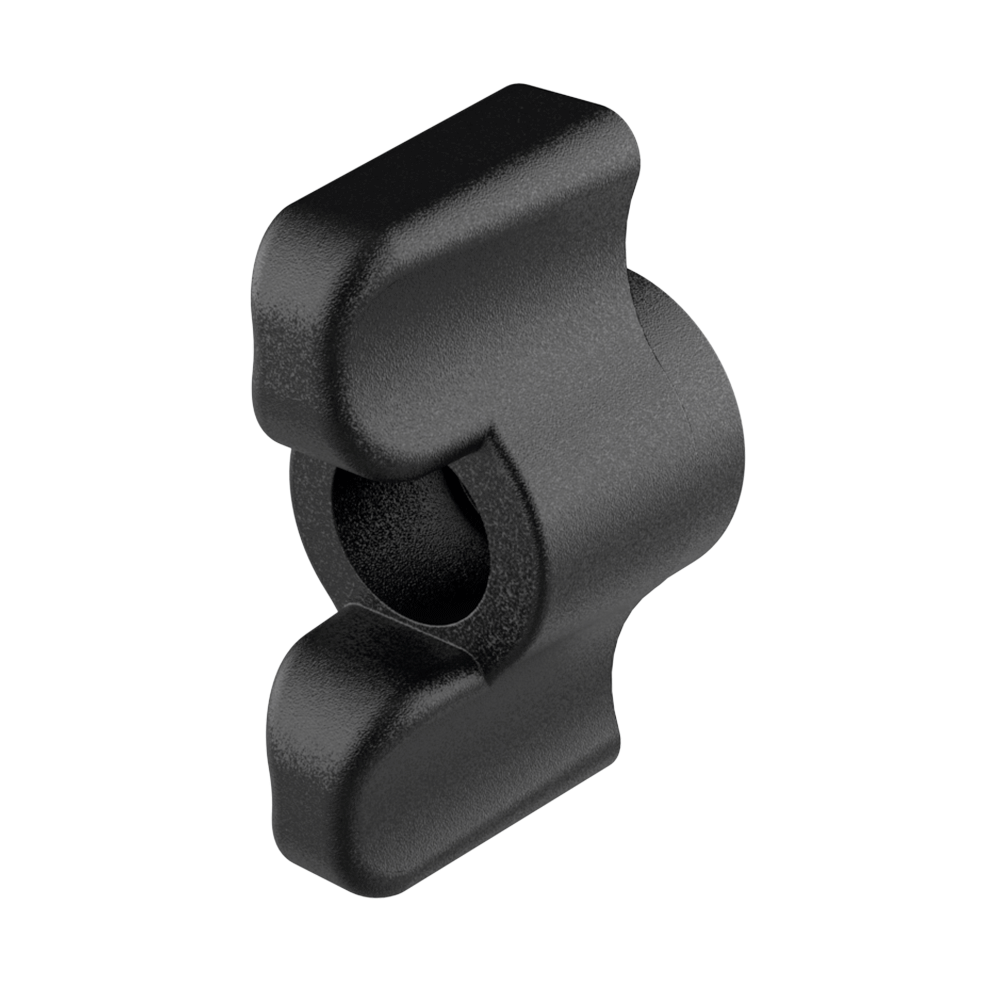

Rotatory wheel with brake made of polypropylene. Its threaded stud makes it ideal to be placed in threaded inserts. The recommended individual loading capacity is 50 kilos.   Our adjustable foot has a decorative round base.   Our adjustable foot has a knurled base for easier handling.   Our female wing knob is also available as a male wing knob, please visit our family LHMB.   Our hinge 3-way connector has been designed for square tubes. It has an angle which goes from 0º to 190º, or from 45º to 200º, depending on the reference.
