Saddle foot for round tubes AKBB


Description and features

Discret saddle foot, elegant and durable design offers the following features:

* Available in clear and black color.
* Made of transparent polycarbonate (PC) material, and in black polyamide 6 (PA6).
* Available with or without felt.
* Suitable for 10mm round tube up to 25mm.
* Ideal for designer chairs.

Technical documentation and compliance

  • Drawing PDF
  • UL94
  • IP
  • RoHS
  • Measures expressed inMillimeters
  • Video

Product images and technical drawings

Product view

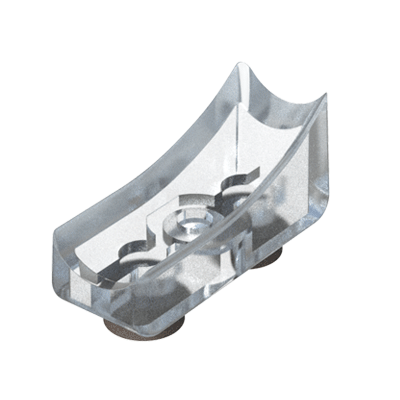

Saddle foot for round tubes AKBB - Product view

Technical drawing

Saddle foot for round tubes AKBB - Technical drawing

Video


Part numbers and dimensions of Saddle foot for round tubes

Reference
For tube (D)
B
L
c
C



More
Info.
02500200205 10 to 11 15,00 38,30 5,00 10,00
02500200206 12 to 13 15,00 38,30 4,50 10,00
02500200207 14 to 16 15,00 38,00 4,50 8,50
02500200208 17 to 19 17,00 38,30 4,50 8,50
02500200209 22 to 25 18,50 38,30 4,25 8,25
