Round tube insert with special base LGDK


Description and features

These glides for round tubes are tiltable up to an angle of 20º. The body of the insert is made of Low-density polyethylene, while the bases are made of different materials with the following characteristics:

* Base made of PA6 (Nylon 6): offers good sliding, as well as good wear resistance. They are ideal on parquet and wooden floors. Also valid for humid environments and soils, as well as outdoors.
* PA6MOS base (Nylon 6 with molybdenum disulfide): it offers superior performance to the PA6 base and its use is recommended when a very high capacity of sliding and excellent behavior against friction wear is required, regardless the floor selected.
* Wool felt base (FTR): ideal for delicate and smooth floors such as parquet. In addition, it provides silencing properties (sound-reducing property), as well as good sliding and anti-scratch protection. Not recommended for outdoor or wet floors.
* Metallic base (S): good finish and greater resistance derived from its steel base. Recommended for non-smooth surfaces (cement, carpets...) or elastic floors (pavilions, courts...).
* Stainless base (SS): good finish and good resistance, also to rust. Recommended for outdoors, non-smooth surfaces (cement, carpets...) or elastic floors (pavilions, courts...).
* Non-slip base (TPE): made of rubber, in addition to being non-slip, it provides good wear resistance, and therefore, a high durability. It is applied to a very wide range of soil types.

Contact our commercial department if you want special colors and personalized designs, always under a minimum order.

Technical documentation and compliance

  • Drawing PDF
  • UL94
  • IP
  • RoHS
  • Measures expressed inMillimeters
  • Video

Product images and technical drawings

Product view

Round tube insert with special base LGDK - Product view

Technical drawing

Round tube insert with special base LGDK - Technical drawing

Video


Part numbers and dimensions of Round tube insert with special base

Reference
For Tube (D)
Tube Thickness (C) / D1



More
Info.
00300410056 14 1,50 to 2,00 / ø23 ·
00300410057 16 / 17 / 18 1,50 to 3,00 / ø23 ·
00300410008 18 / 19 / 20 1,50 to 3,00 / ø23 ·
00300410009 18 / 19 / 20 1,50 to 3,00 / ø27 ·
00300410058 18 1,50 to 2,00 / ø23 ·
00300410059 18 1,50 to 2,00 / ø27 ·
00300410060 20 1,50 to 2,00 / ø23 ·
00300410061 20 1,50 to 2,00 / ø27 ·
00300410010 22 1,00 to 2,00 / ø23 ·
00300410011 22 1,00 to 2,00 / ø23 ·
00300410062 22 1,50 to 3,00 / ø23 ·
00300410063 22 1,50 to 3,00 / ø27 ·

If you are interested in our family LGDK, you may be interested in these families as well:

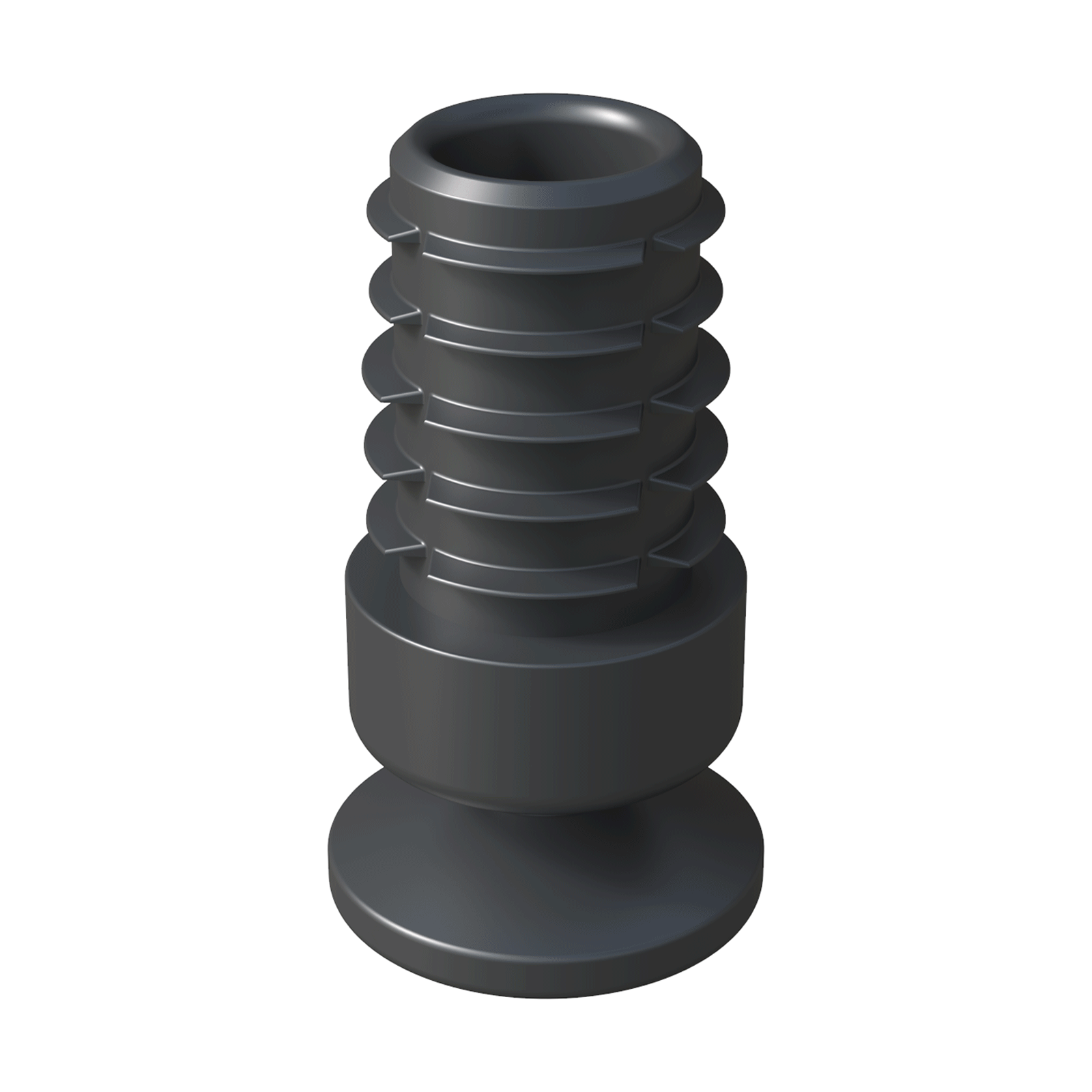

Round tube tilt insert with special base LGKN   Round felt base tilt tube insert LGOL   Round angled tube insert with special base LGRL   Round tube insert for chairs with special bases PA6-PTFE LGLP
