Our angle glider has been designed to be used for end of traverses.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube (D)
Tube Thickness
L
H
h
A
Hole Diameter



More
Info.
00300400742 20 1,50 a 2,00 46,00 4,80 7,50
00300400743 25 1,50 a 2,00 65,50 7,50 6,50 49,00 5,20
00300400744 28 2,00 64,50 7,50 6,00 48,00 5,20
00300400745 30 2,00 44,70 6,00 7,00 20,00 5,20
00300400746 32 1,50 52,00 8,20 6,50 30,00 5,50
00300400747 35 1,50 52,00 6,00 10,00 28,00 5,20
00300400748 35 2,00 52,00 6,00 8,00 27,00 6,00
00300400749 35 2,50 52,00 6,00 7,50 28,00 5,20
00300400750 38 2,00 52,00 8,20 6,50 29,50 5,50
00300400751 40 2,50 51,00 6,00 7,00 28,00 5,20

If you are interested in our family LZ, you may be interested in these families as well:

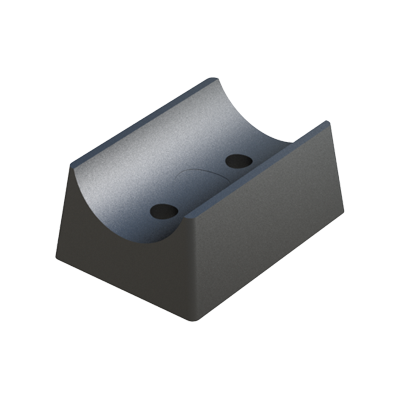

Our saddle foot has been designed for round tubes. The part has 2 holes to permit a screw fixing system.   Our saddle foot for round tubes is ideal for metal leg chairs. It is snapped into place and locked by means of its clamping system. If you want this part with a peg to avoid movement, please visit our family LWSPZ.   Our saddle foot for round tubes has a central hole in order to block rotation and movement thanks to a screw. If you want the part without hole but a peg instead, please visit our family AKAAY.   Our saddle foot for round tubes has a central hole in order to block rotation and movement thanks to a screw. If you want the part without hole but a peg instead, please visit our family AKAAY. If you want a part without felt, please see AKAAZ.   Our saddle foot has been designed for round tubes. It is also available with a felt base: LXF, or with a PE base: LXS.
