This one piece ribbon clip design allows for quick positive clamping of flat cable up to 50 conductors wide. It is similar to our ribbon clip MAPAD but with two rachet fasteners for a 4.75 mm hole and with a minimum panel thickness of 0.8 mm. The releasable catch on of these clips makes removing or replacing cables a snap.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Panel hole size
Panel thickness
L
D
H



More
Info.
00101100187 4,75 0,80 a 8,00 72,23 12,70 31,75

If you are interested in our family MAPC, you may be interested in these families as well:

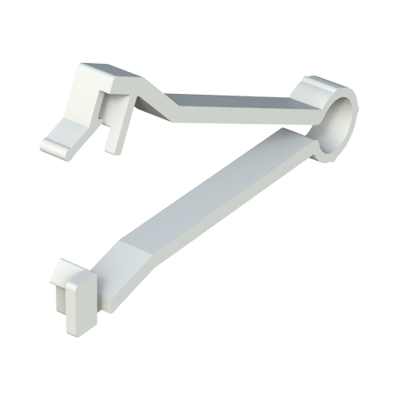

This one piece ribbon clip design allows for quick positive clamping of flat cable up to 50 conductors wide. It is possible without having to drill the panel, or the chasis. It can be clipped to the board of a chassis or to a board, the clip is fixed without the risk to be moved lateraly. The releasable catch on of these clips makes removing or replacing cables a snap.
