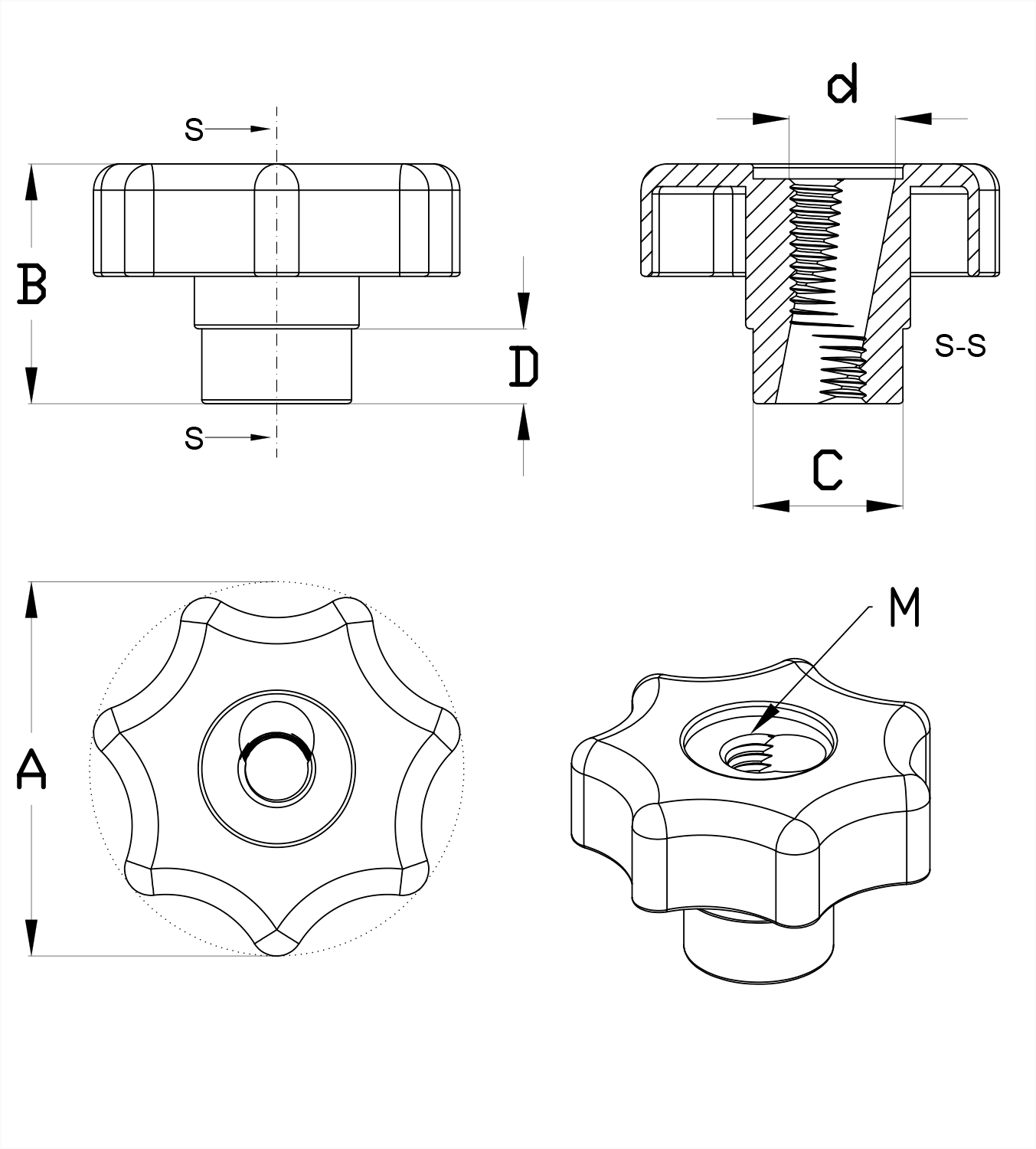

The LHSF female quick clamping star knob, with a star design and similar to DIN 6336, is specially designed for applications requiring quick manual assembly and disassembly without tools.
Its operation allows the knob to be placed diagonally on the threaded bolt and then turned to a perpendicular position to engage the thread. With just a quarter turn, fast and effective clamping is achieved, making it a practical solution for frequent adjustments.
Manufactured in glass fiber reinforced polyamide by injection molding, it combines lightness, ergonomics and mechanical strength. The overmolded threaded insert is made of zinc-plated steel, ensuring reliable engagement and proper corrosion protection.
It should be noted that this model is recommended for applications where high clamping forces are not required, being ideal for quick adjustments, temporary fixings, light locking devices, control panels, technical enclosures, protective covers, modular equipment and industrial furniture.
Special versions available in other RAL colors, thread sizes or materials on request.
Please contact our sales department.
RAL colors manufactured
Its operation allows the knob to be placed diagonally on the threaded bolt and then turned to a perpendicular position to engage the thread. With just a quarter turn, fast and effective clamping is achieved, making it a practical solution for frequent adjustments.
Manufactured in glass fiber reinforced polyamide by injection molding, it combines lightness, ergonomics and mechanical strength. The overmolded threaded insert is made of zinc-plated steel, ensuring reliable engagement and proper corrosion protection.
It should be noted that this model is recommended for applications where high clamping forces are not required, being ideal for quick adjustments, temporary fixings, light locking devices, control panels, technical enclosures, protective covers, modular equipment and industrial furniture.
Special versions available in other RAL colors, thread sizes or materials on request.
Please contact our sales department.
RAL colors manufactured
