These latches operate by way of a spring and cam form which provides a secure 'push to close - push to open' latching mechanism. Used in applications where doors, panels or compartments require to be accessed on regular occasions, such as automotive, electronics, HVAC, medical, point of sale, white and brown goods industries. way of a spring and cam form which provides a secure 'push to close - push to open' latching mechanism. Used in applications where doors, panels or compartments require to be accessed on regular occasions, such as automotive, electronics, HVAC, medical, point of sale, white and brown goods industries.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
L1
I
D
H
C
L
J

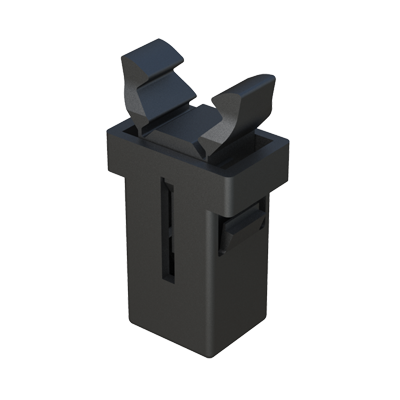

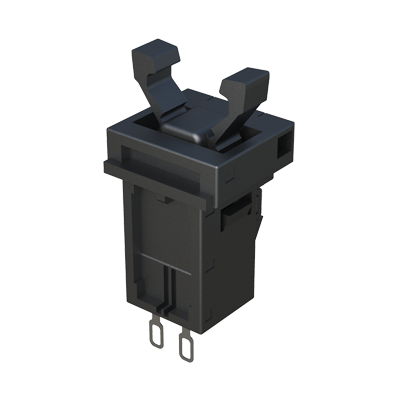

Suitable with push latches



More
Info.
50001000200 14,00 7,00 2,80 7,80 5,20 21,20 3,00 TAB / TAE

If you are interested in our family TAZ, you may be interested in these families as well:

Our closing / opening devices work like a spring. The shape of the cam ensures a smooth opening and closing thanks to its locking system. These devices are used in applications where doors, panels or parts must be opened and closed regularly, such as the following: automobiles, motorbikes, electronics, air conditioners, ventilation and heating devices, medical field, point of sale displays (POS), etc.   These latches operate by way of a spring and cam form which provides a secure 'push to close - push to open' latching mechanism. Used in applications where doors, panels or compartments require to be accessed on regular occasions, such as automotive, electronics, HVAC, medical, point of sale, white and brown goods industries.
