Our locking wire and cable holder is used for routing wires and cables. It has been designed to fit 4.75mm hole diameters and variable panel thicknesses with a max of 2.30mm. Wires and cables can be mounted and removed again and again thanks to its locking system which is releasable by twisting open.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Panel hole size
Panel thickness
A
B
C
D



More
Info.
00101100227 4,75 2,30 3,71 15,09 5,50 11,10
00101100600 4,75 2,30 5,64 13,84 5,56 11,10
00101100253 4,75 2,30 9,60 18,06 5,56 11,10
00101100228 4,75 2,30 10,21 20,50 5,50 11,10
00101100254 4,75 2,30 16,76 25,40 5,56 11,10
00101100229 4,75 2,30 18,21 28,19 5,50 11,10
00101100503 4,75 2,30 18,75 27,38 5,56 11,10
00101100230 4,75 2,30 27,20 37,21 5,50 11,10
00101100504 4,75 2,30 27,76 35,97 5,56 11,10
00101100231 4,75 3,70 15,70 23,01 12,50 4,90

If you are interested in our family MKCR, you may be interested in these families as well:

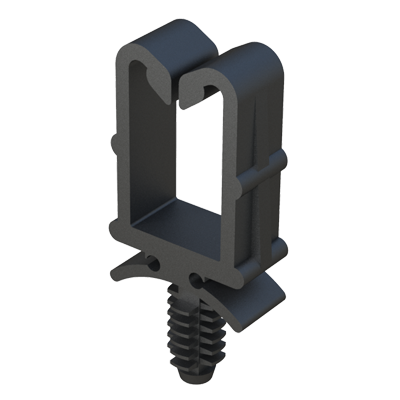

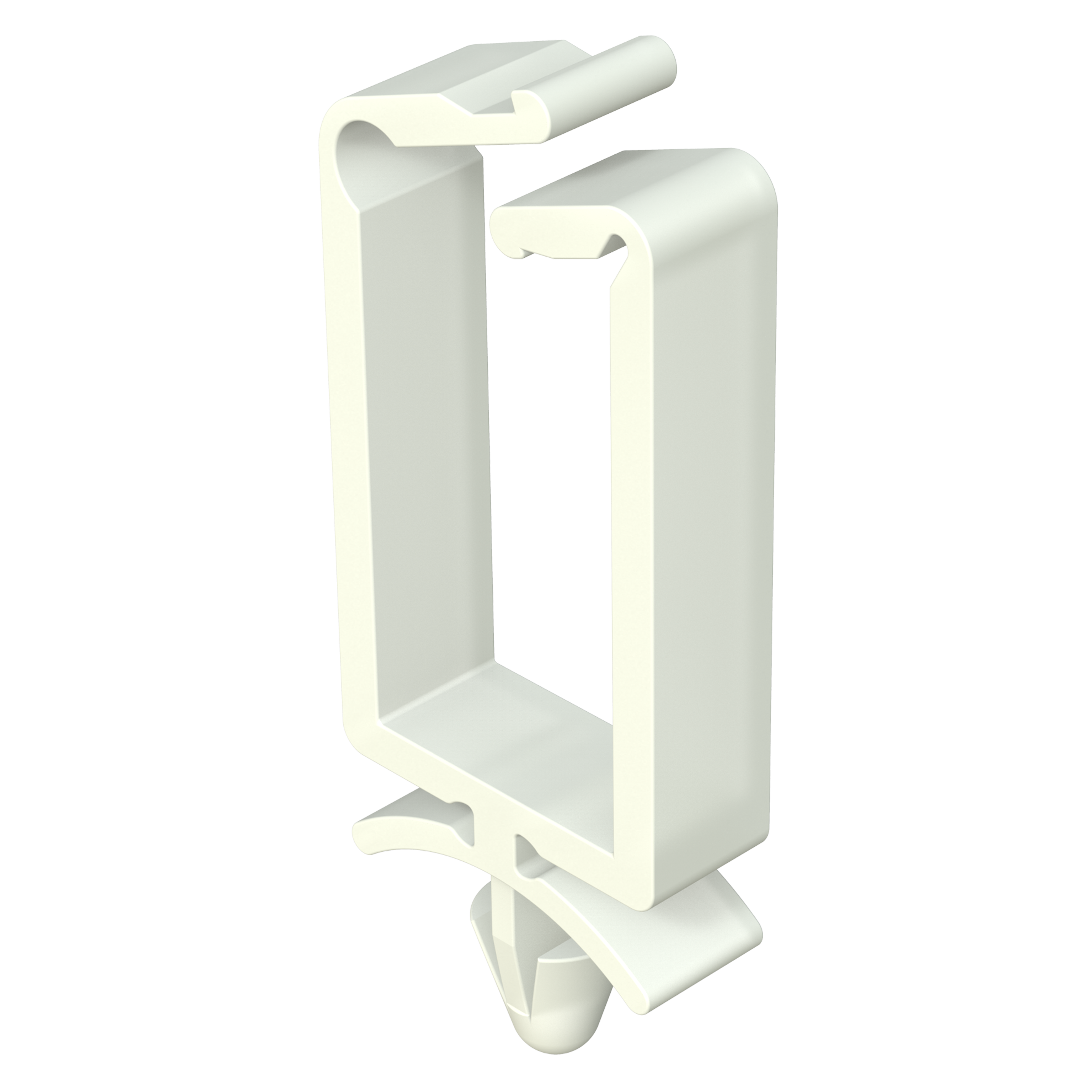

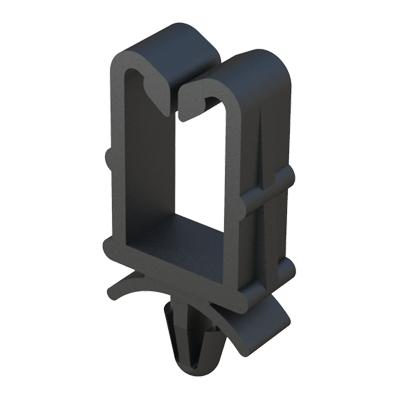

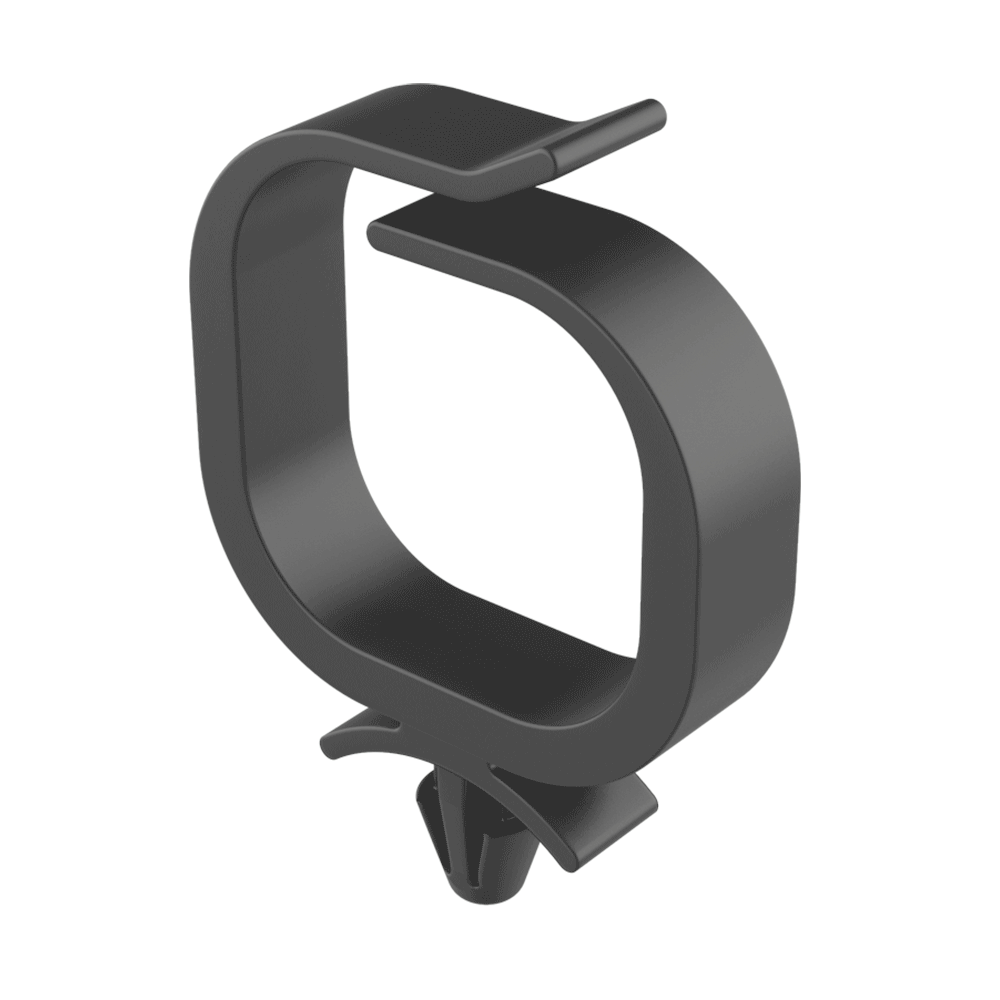

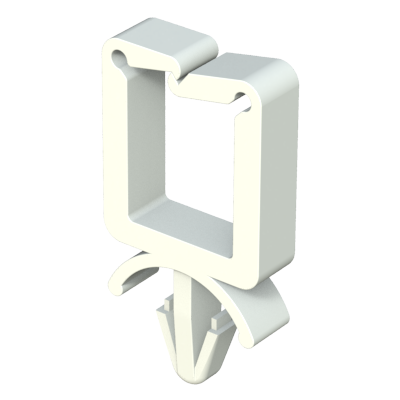

The split wire routing design allows loading of wires by separating the cup at the split and then inserting the prongs of the clip into a hole in the panel.   Our locking wire and cable holder is used for routing wires and cables. It has been designed to fit 4.75mm hole diameters and variable panel thicknesses from 2.30mm to 3.70mm. Wires and cables can be mounted and removed again and again thanks to its locking system which is releasable by twisting open.   Our wire/cable holders are designed to mount into 4.76mm hole diameters. Our wire/cable holders can be used in a variety of panel thicknesses and materials. Sizes are available to handle wire bundle diameters from 9.53mm to 12.70mm.   Our locking wire and cable holder is used for routing wires and cables. It has been designed to fit 4.75mm hole diameters and variable panel thicknesses from 2.30mm to 3.70mm. Wires and cables can be mounted and removed again and again thanks to its locking system which is releasable by twisting open.   Our wire/cable holders are designed to mount into 4.76mm hole diameters. Our wire/cable holders can be used in a variety of panel thicknesses and materials. Sizes are available to handle wire bundle diameters from 9.53mm to 12.70mm.
