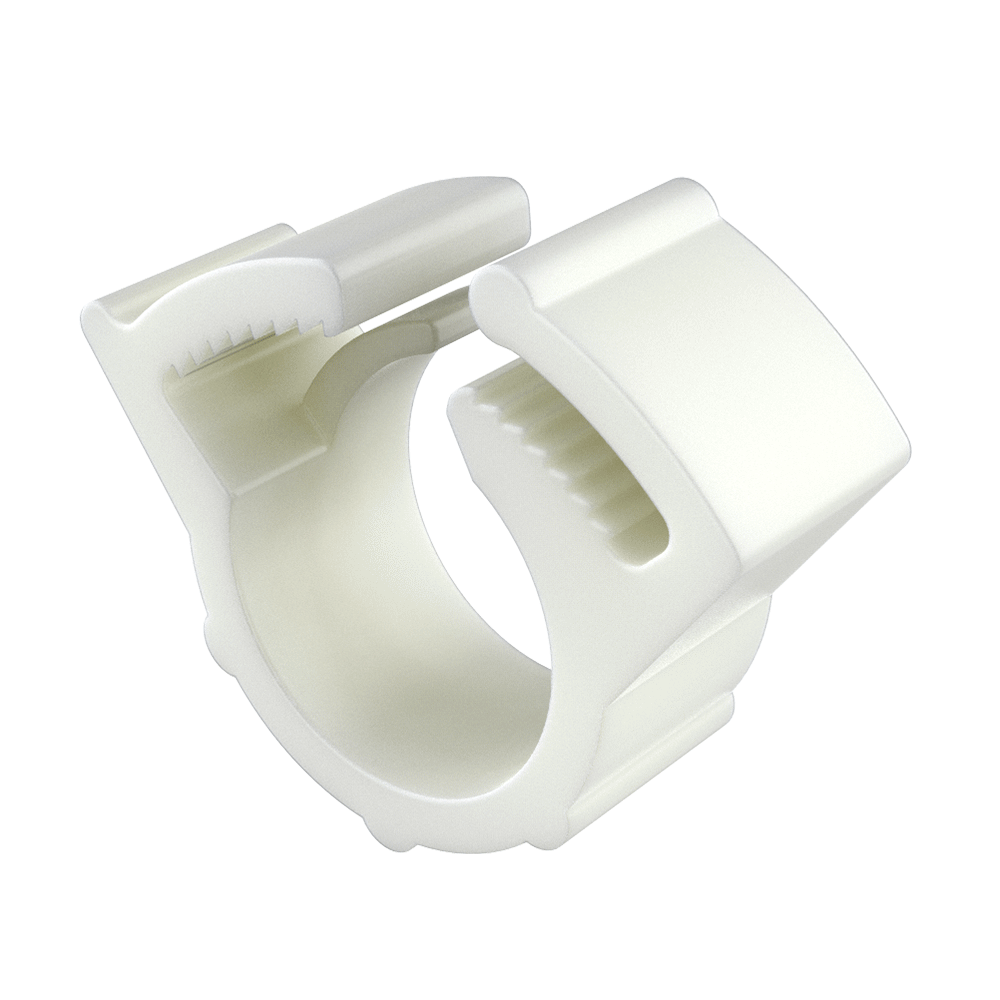

Our hose clamps are tough, corrosion resistant and resilient. They are based on the original design for this type of fastener. A overlapping tapered ring is fastened around the hose or tubing desired and secured to the required tightness by compressing interacting groves in a ratcheting fashion, creating a tight sealing application. Clamps may be removed by separating the clamping halves in a perpendicular direction at the seal. Clamps can be used in the following fields of application: appliance, electrical, electronic, R.V., boating and automotive. Parts are removable and reusable.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Cable Range Minimum (d)
Cable Range Maximum (d)
A
B



More
Info.
00101100071 6,35 7,14 3,96 1,02
00101100045 7,80 8,69 3,81 1,02
00101100046 9,14 10,03 5,84 1,78
00101100047 10,26 11,48 5,84 1,78
00101100048 11,70 12,98 5,84 1,78
00101100049 13,03 14,88 5,84 1,78
00101100050 14,45 16,51 5,84 1,78
00101100051 15,65 17,96 5,84 1,78
00101100052 17,83 20,35 5,84 1,78
00101100053 19,79 22,83 5,84 1,78
00101100054 21,82 25,12 5,84 1,78
00101100055 23,57 27,23 6,35 1,78
00101100056 25,15 28,83 6,35 1,78
00101100057 28,52 32,92 7,11 1,78
