Our hexagon shaped lock nut manufactured in brass, has been designed to fit a variety of thread sizes, and to execute a big range of applications and to be used together with a cable gland.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

PRTUM
PRTUM

Reference
Suitable for
H
SW



More
Info.
01500800097 M12 2,80 15,00
01500800098 M16 2,80 19,00
01500800099 M20 3,00 26,00
01500800100 M25 3,50 30,00
01500800101 M32 4,00 36,00
01500800102 M40 4,50 46,00
01500800103 M50 5,00 60,00
01500800104 M63 5,50 70,00
01500800087 PG 7 2,80 15,00
01500800088 PG 9 2,80 18,00
01500800089 PG 11 3,00 21,00
01500800090 PG 13,5 3,00 23,00
01500800091 PG 16 3,00 24,00
01500800092 PG 21 3,50 32,00
01500800093 PG 29 4,00 41,00
01500800094 PG 36 5,00 51,00
01500800095 PG 42 5,00 60,00
01500800096 PG 48 5,50 64,00

If you are interested in our family PRTUM, you may be interested in these families as well:

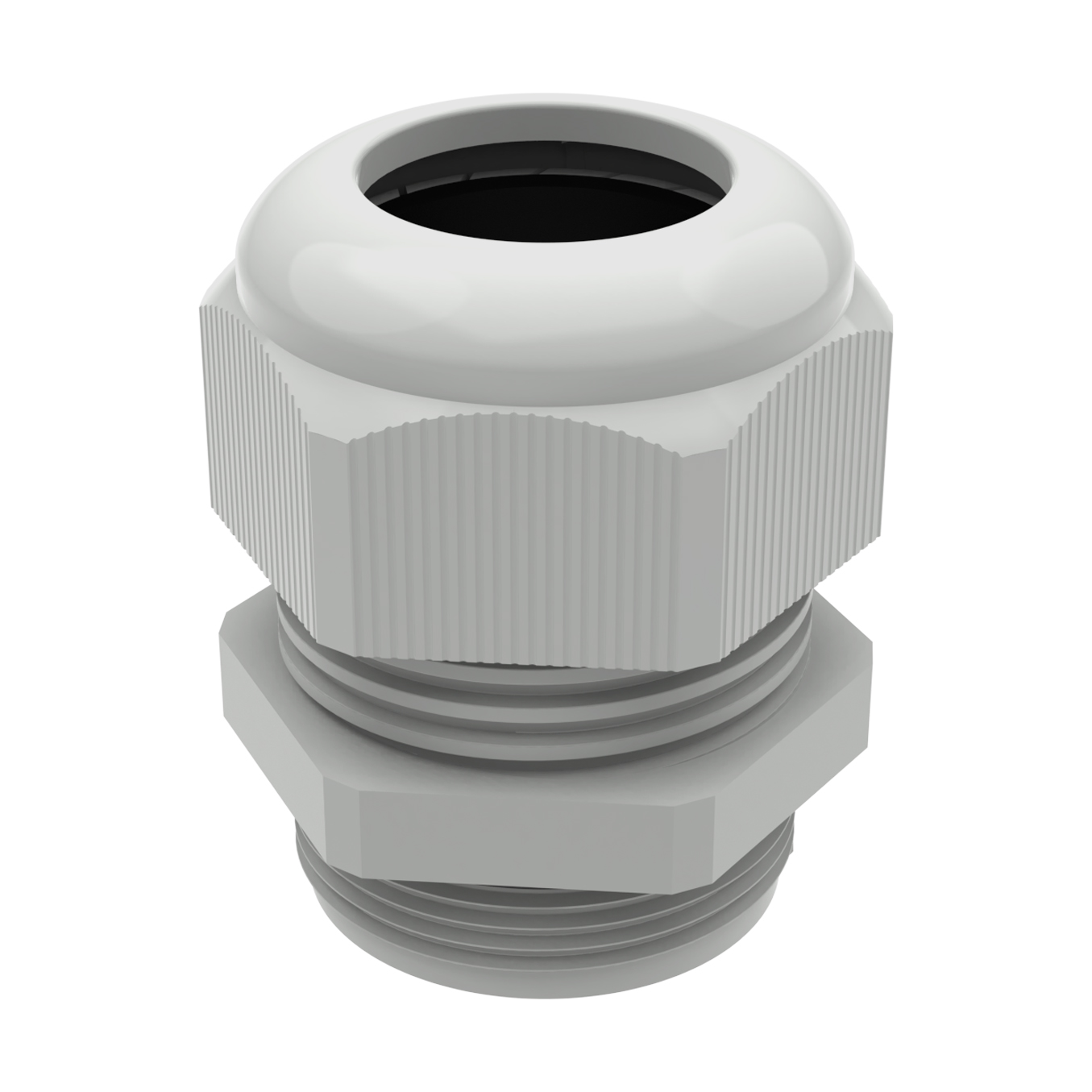

Los innovadores prensaestopas PRPRC, fabricados conforme a la normativa <b>DIN EN 62444 / 50262</b>, incorporan un sistema de <b>apriete laminar</b> y micro orificios laterales que <b>permiten la ventilación, la disipación del calor y el equilibrio de presión</b> en el interior del equipo. <br> Están equipados con una membrana interna oleofóbica e hidrofóbica fabricada en <b>PTFE</b>, que garantiza una <b>ventilación continua y un equilibrio de presión eficaz</b>. Esta tecnología ayuda a <b>evitar la acumulación de humedad y condensación</b>, limitando los incrementos no deseados de temperatura. Esto conlleva también una <b>mejor protección contra la corrosión</b> lo cual alarga la vida útil del equipo. <i>Las propiedades de la membrana no se ven afectadas por el <b>diámetro del cable</b> ni por su <b>torsión</b></i>. <br><br> Están fabricados en <b>Nylon 6 (PA6)</b>, e incluyen: <li>Una junta tórica plana de <b>NBR</b>.</li> <li>Una junta cilíndrica interior de Cloropreno <b>(CR)</b>, para el sistema de apriete laminar.</li> <br> Están disponibles con <b>rosca métrica</b> según <b>EN 60423</b> en los tamaños <b>M12 / M16 / M20</b>, y en colores: <b>RAL 9005</b> (Negro) / <b>RAL 7001</b> (Gris Oscuro) / <b>RAL 7035</b> (Gris Claro). Todos ellos son <b>resistentes a los rayos UV (F1 según UL 746C)</b>. <br><br> <b>Características técnicas:</b> <li>Temperatura de uso: <b>-20°C a +100°C</b> (picos de hasta +150°C)</li> <li>Protección: <b>IP66 / IP67, Tipo 4X (UL 50E)</b></li> <li>Inflamabilidad: Retardante de llama y autoextinguible <b>UL94-V2</b></li><br> <b>Certificaciones y normativas:</b> VDE (EN 62444) / UL (UL 514B) / CSA C22.2 Nr. 18.3-12 y 94.2-15) / c-CSA-us (CSA C22.2) / DNV GL (EN 62444). <br><i>Algunas regulaciones pueden no aplicarse a todos los tamaños. Por favor, consulte con nuestra oficina comercial.</i> <br><br> <b>Con un solo elemento obtienes dos ventajas: función prensaestopas + elemento intercambiador de aire.</b>   PRPRF flexible cable glands, manufactured according to <b>DIN EN 62444/50262</b>, allow the cable to move freely even continuously and offer excellent protection even when vibrations are present. The body is made of <b>PA6</b> (nylon6) and the internal seal of <b>CR</b> (Rubber - Chloroprene). It complies with IP66 and IP698 (up to 5 bar) type 4X (UL 50E) protection. For optimal sealing, we recommend using the lock nut (families <a href=' https://www.iscsl.co.uk/hexagonal-lock-nut-with-flange/prtu/ ' target='_blank'><b>PRTU</b></a>, <a href=' https://www.iscsl.co.uk/hexagonal-lock-nut/prtum/ ' target='_blank'><b>PRTUM</b></a>, <a href=' https://www.iscsl.co.uk/hexagonal-lock-nut/prtue/ ' target='_blank'><b>PRTUE</b></a>) and the flat section O-ring (<a href=' https://www.iscsl.co.uk/o-ring-for-metric-and-pg-threads/prp/ ' target='_blank'><b>PRP</b></a>), which are sold separately.<br>All three colours are UV resistant (F1 according to UL 746C). Under special production, we can supply the colours RAL3020 (red), RAL9003 (white) and RAL5015 (blue), as well as replacement seals for multi-core or flat cables. <br><br>Standards and Certifications: VDE (EN 62444), UL (UL 514B, CSA C22.2 Nr. 18.3-12 and 94.2-15), c-CSA-us (CSA C22.2), DNV GL (EN 62444). <i>Some regulations may not cover all sizes, please consult our sales department</i>.   This o-ring is ideal to get a good and water-proof sealing in our cable glands PRPRE and our plugs PRTH and PRT. It can be used in the majority of industrial applications including water, oil, petrol and most chemicals. Our o-ring is available for metric thread and for PG thread.   Our hexagon shaped lock nut with round sealing flange has been designed to fit a variety of thread sizes, and to execute a big range of applications and to be used together with a cable gland. Nylon nuts are durable, non-conductive and resistant to corrosion.   Our hexagon shaped lock nut has been designed to fit a variety of thread sizes, and to execute a big range of applications and to be used together with a cable gland. Nylon nuts are durable, non-conductive and resistant to corrosion.
