The WDA range of cable glands for round holes prevent cables and tubes from being damaged by passing through a panel hole. Its possibility of firm adjustment adapting to the diameter of the tube / cable, prevents the entry of water and dust. Possibility to manufacture it in other colors and sizes, contact us.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

WDA
WDA

Reference
Hole size (A)
Panel thickness (D)
Diameter tube/cable (C)
B
b
H
L



More
Info.
02800300001 10,00 0,50 to 1,50 7,20 to 7,80 17,00 10,00 3,00 4,00
02800300003 16,00 0,50 to 2,50 12,00 18,00 x 26,00 17,00 4,30 4,90
02800300004 28,00 0,50 to 2,00 7,00 39,00 29,00 4,80 5,20
02800300005 28,00 0,50 to 2,50 14,00 39,00 29,00 4,80 5,20
02800300002 28,00 0,50 to 2,00 25,00 40,00 28,00 4,00 6,00
02800300007 30,00 1,20 18,00 50,00 36,50 11,00 4,00
02800300006 40,00 1,00 to 1,50 4,80 to 5,05 53,00 44,20 5,00 5,00

If you are interested in our family WDA, you may be interested in these families as well:

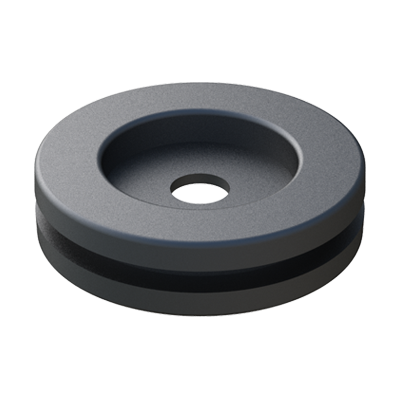

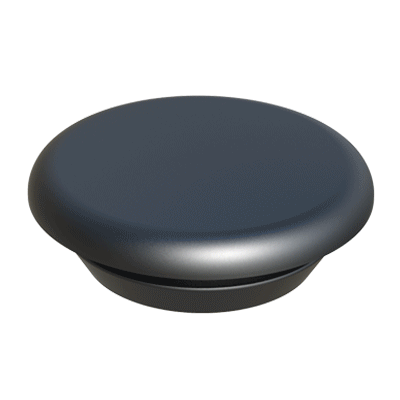

The WBB plug is manufactured in different materials and colors depending on the reference. It is used in many applications such as sealing round holes to prevent the entry of water, moisture and dust.   This semi-blind grommet is ideal to protect wires and cables passing through metal sheet. It installs instantly, it just has to simply snap into the hole. It also blanks holes for later insertion of cables etc., it permits to lock into round or oval holes. Moreover, it protects against ingress of water and dust.
