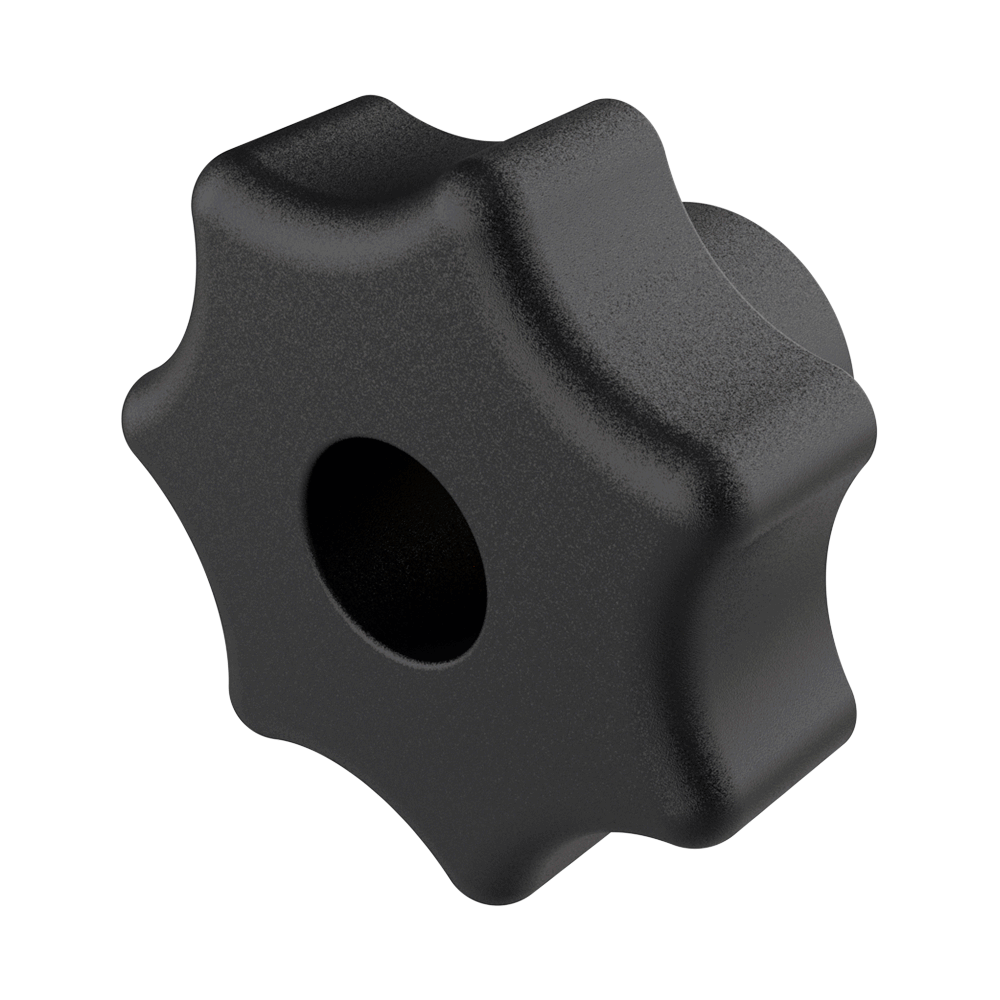

The LHSA through-threaded knob, similar to DIN 6336, has the following characteristics:

Standard material: PA6 (nylon) with reinforced polyamide (PA6GF30)
Thread: Steel Zinc-plated steel (ZCS)

We can manufacture inserts with special threads, materials, and RAL or custom colors upon request. Please consult our Sales department.
  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

LHSA
LHSA

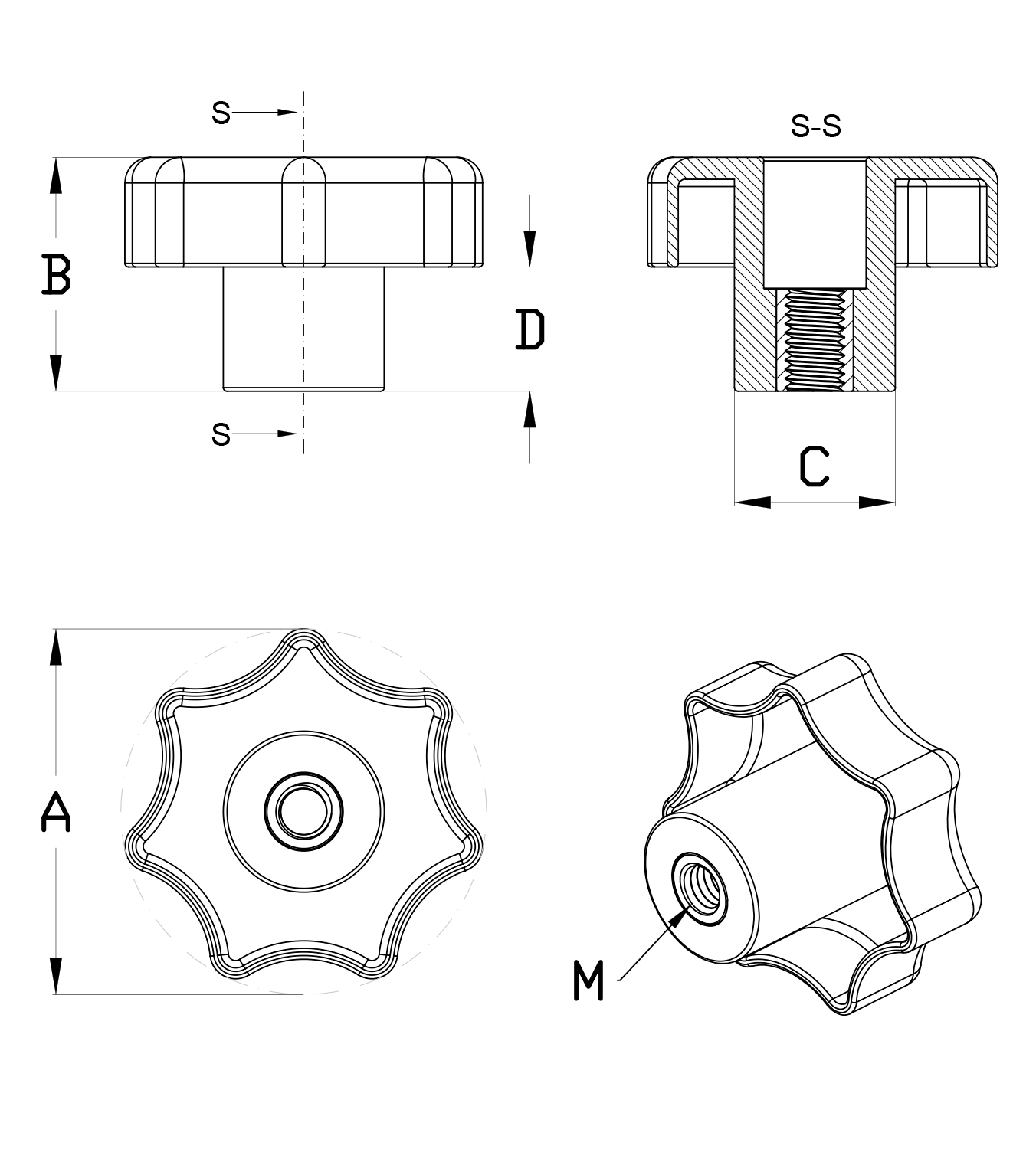

Reference
M
A
B
C
D



More
Info.
03100400533 M5 32,00 20,00 14,00 10,00
03100400534 M5 40,00 25,00 18,00 13,00
03100400535 M6 32,00 20,00 14,00 10,00
03100400536 M6 40,00 25,00 18,00 13,00
03100400537 M8 32,00 20,00 14,00 10,00
03100400538 M8 40,00 25,00 18,00 13,00
03100400539 M8 50,00 32,00 22,00 17,00
03100400540 M8 63,00 40,00 26,00 21,00
03100400541 M10 50,00 32,00 22,00 17,00
03100400542 M10 63,00 40,00 26,00 21,00
03100400543 M12 63,00 40,00 26,00 21,00
03100400544 M12 80,00 50,00 35,00 25,00
03100400545 M16 80,00 50,00 35,00 25,00
