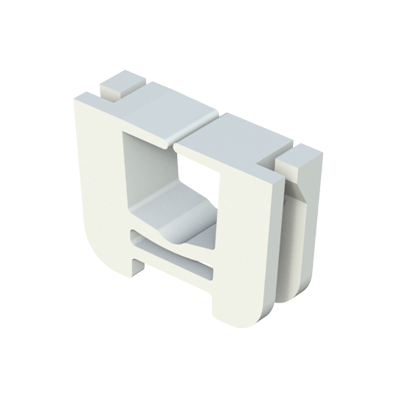

Our edge holder protects and insulates wires and cables from the edges of chassis and frames. Its installation to chassis and frames is very easy to complete.

Drawing PDF:
UL94:   V2/V0
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Panel thickness (G)
W2
W1
L1
L2
L3
H
D / t



More
Info.
01012000801 0,80 to 2,00 14,00 22,00 11,00 16,30 16,80 2,00 2,00 / 1,30
01012000802 0,80 to 2,00 18,00 26,00 13,70 19,30 19,80 2,00 2,30 / 1,30
