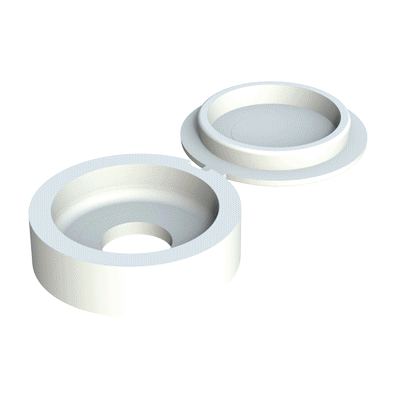

Our MKPTA covers are designed to protect and conceal screw and bolt heads, combining functionality and aesthetic finish.

Manufactured in low-density polyethylene (LDPE) with UV stabilizer, they maintain their properties and colour in outdoor applications. They offer high resistance to abrasion, corrosion and impact, ensuring a long service life in demanding conditions. They are used together with compatible polyamide (PA6) washers from the same family, selected according to application requirements.

· Material: low-density polyethylene (LDPE) with UV stabilizer
· Resistance: abrasion, corrosion and impact
· Finishes: according to reference (see technical data sheet)

RAL colours available on request. Reference 04801300061 can be supplied with metallic finish on request and subject to minimum production quantity.


  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Suitable for screw
H
D
Cap
Washer
Type
Compatible with:



More
Info.
04801300060 / 5,00 14,50     /
04801300061 / 8,00 19,50     /
04801300062 / 7,00 14,50     /
04801300063 M3 / M4 8,80 12,00     2 04801300060 04801300062
04801300064 M4 / M5 2,70 12,00     1 04801300060 04801300062
04801300065 M4 / M5 8,80 12,00     2 04801300060 04801300062
04801300066 M5 / M6 5,80 17,00     1 04801300061
04801300067 M5 / M6 13,40 17,00     2 04801300061
