Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Metric Thread (M)
L
D
H



More
Info.
03900200050 M8 18,00 33,00 11,50

If you are interested in our family SUX, you may be interested in these families as well:

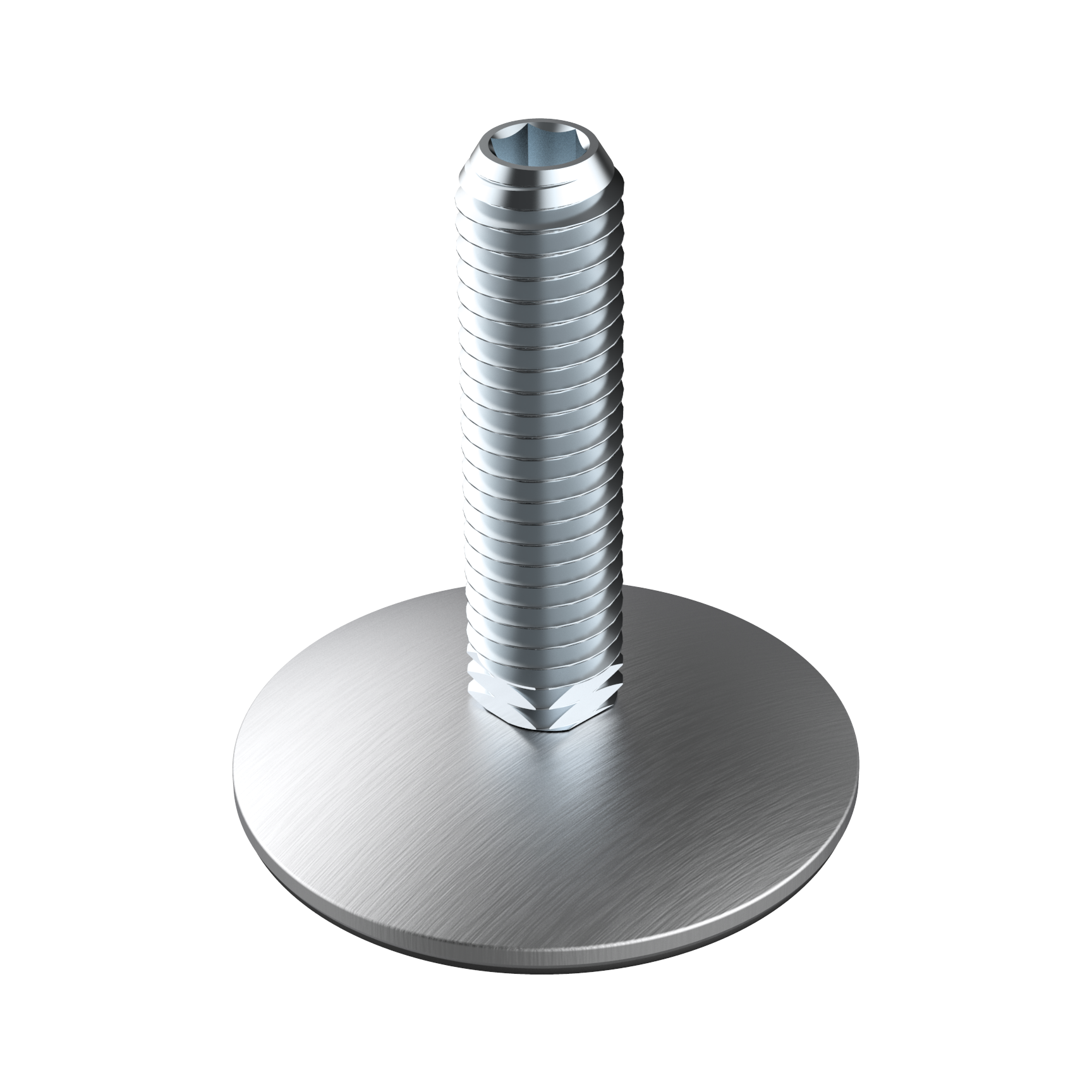

Our AKAAG leveling foot has a <b>PP</b> (Polypropylene) base, a <b>ZCS</b> (Zinc-Plated Steel) thread and an <b>A2 stainless steel plate</b> that gives it an excellent finish.<br>
<br>
There are two types of possible adjustments:<br>
* On the one hand, the base of the stud is suitable for adjustment with a <b>fixed spanner</b>. <br>
* On the other hand, the end of the stud has a housing for an <b>Allen key</b>, so that it can be adjusted and leveled by accessing it from the top.<br>
<br>
<i>We offer the possibility of supplying the pieces with upper housing for <b>flat screwdriver</b>. If you are interested, please contact our commercial department.</i>   The SAX leveling foot with ball joint achieves a maximum inclination of 30º. The stud has a <b>housing for Allen key</b> which facilitates its accessibility and tights / levels when it is not possible to do it by the bottom of the base.   Our round tube insert has been designed with an hexagonal nut. The nut is inserted during the injection process. The part has an excellent finished and a good resistance. It is suitable for our adjustable feet, see our Adjustable feet section.
