Our adjustable foot can be used with our trimming cover LRS (black or chromed) for the M8 parts. Some parts are available with a steel base.

Material:  PA6   S
Standard colors: Black / RAL colors manufactured
Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Metric Thread (M)
L
D
H
Steel Base

PDF
3D IGS
More
Info.
00301200414 M8 20,00 25,00 8,90
00301200422 M8 20,00 30,00 9,00
00301201439 M8 20,00 34,00 11,30
00301200415 M8 30,00 25,00 8,90
00301200423 M8 30,00 30,00 9,00
00301201440 M8 30,00 34,00 11,30
00301200416 M8 40,00 25,00 8,90
00301200424 M8 40,00 34,00 9,00
00301200417 M8 50,00 25,00 8,90
00301200425 M8 50,00 30,00 9,00
00301200418 M10 20,00 25,00 8,70
00301200426 M10 20,00 30,00 9,00
00301201441 M10 20,00 34,00 11,30
00301200419 M10 30,00 25,00 8,70
00301200427 M10 30,00 30,00 9,00
00301201442 M10 30,00 34,00 11,30
00301200420 M10 40,00 25,00 8,70
00301200428 M10 40,00 30,00 9,00
00301200421 M10 50,00 25,00 8,70
00301200429 M10 50,00 30,00 9,00

If you are interested in our family LKL, you may be interested in these families as well:

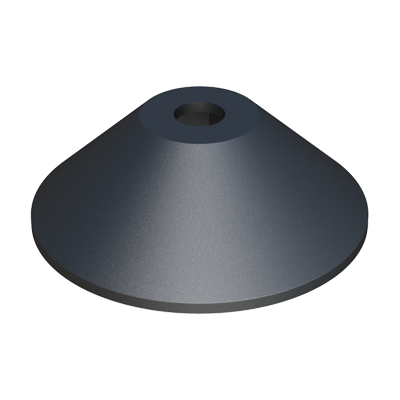

Our trimming cover has been designed to fit our adjustable feet LKL in M8 metrics.
