Our adjustable foot has been designed to be at the same time a tube insert as well as an adjustable height. Once the foot is placed inside the tube, it permits to raise/lower the element (table) moving its base, this would only move the part of the foot which is inside the tube.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube (DxD)
Tube Thickness (G)
h
B
H
d1 x d1
L



More
Info.
00300400863 40 x 40 2,00 170,00 68,00 20,50 36,50 x 36,50 283,50
00300400864 40 x 40 2,00 100,00 68,00 20,50 36,50 x 36,50 198,50
00300400865 40 x 40 2,00 170,00 40,00 20,50 36,50 x 36,50 283,50
00300400866 40 x 40 2,00 100,00 40,00 20,50 36,50 x 36,50 198,50
00300401305 40 x 40 1,50 170,00 68,00 20,50 37,50 x 37,50 283,50
00300401306 40 x 40 1,50 100,00 68,00 20,50 37,50 x 37,50 198,50
00300401307 40 x 40 1,50 170,00 40,00 20,50 37,50 x 37,50 283,50
00300401308 40 x 40 1,50 100,00 40,00 20,50 37,50 x 37,50 198,50

If you are interested in our family LJXQ, you may be interested in these families as well:

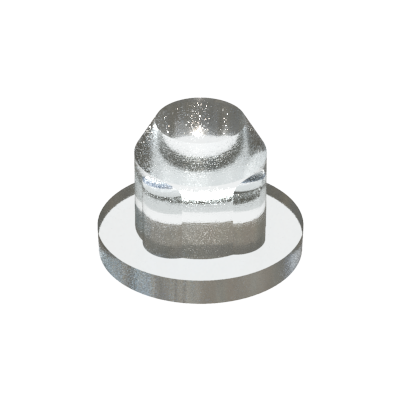

Our bumper with an anti-skid base has been designed to be used with our adjustable feet.
