Our adjustable foot has been designed to be at the same time a tube insert as well as an adjustable height. Once the foot is placed inside the tube, it permits to raise/lower the element (table) moving its base, this would only move the part of the foot which is inside the tube.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube (DxD)
Tube Thickness (G)
L1
SW
H
Suitable for Range



More
Info.
02500100307 50 x 50 1,50 37,00 53,00 7,00 AKEAB
02500100308 50 x 50 1,50 115,00 53,00 7,00 AKEAB
02500100309 60 x 60 1,50 37,00 63,00 7,00 ·
02500100310 60 x 60 1,50 115,00 63,00 7,00 ·

If you are interested in our family AKEAD, you may be interested in these families as well:

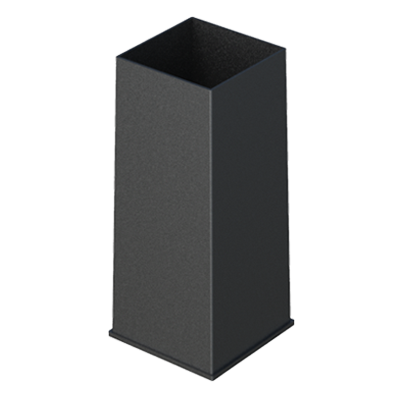

Our trimming cover for square tubes has been designed to suit our family  AKEAD.
