2 tubes straight connector with visible union - ISC Plastic Parts

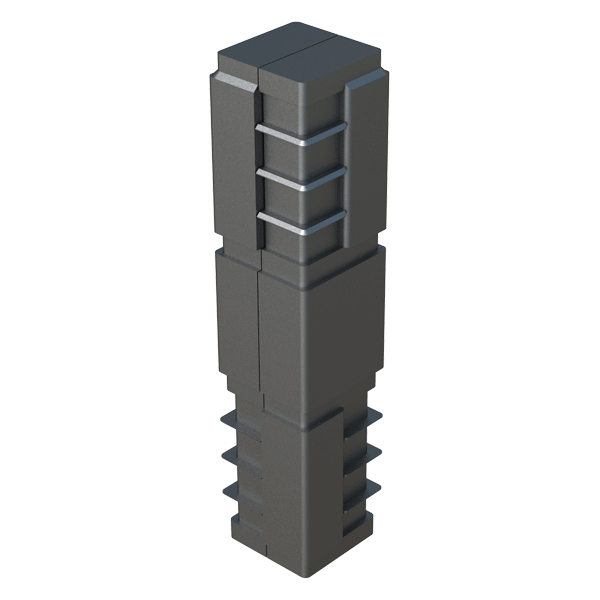

Our straight connector has been designed in order to connect 2 square tubes. It is supplied without internal metal core.
RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters

Reference	For Tube	Epaisseur Tube	L	H									More Info.

02300400122	15 x 15	1,50	38,00	5,00
02300400291	25 x 25	1,50	39,00	25,00
02300400292	30 x 30	1,50	50,00	30,00

If you are interested in our family THCII, you may be interested in these families as well:

The in-line connector has been designed to connect <b>2 square tubes</b> dimensionally and unidirectionally.
Supplied <b>with</b> or <b>without steel core</b> (S), or <b>zinc-plated steel</b> (ZCS) - two-piece connector.
It allows to build frames subject to <b>low static loads – medium</b>, or <b>high</b> - depending on whether or not it incorporates the steel core.
If you want to integrate an external reinforcement (rivets, pins, etc.), and to prevent the effect of contact corrosion, you should avoid drilling the steel core.
The <b>Nylon</b> (PA6) with which it is manufactured is characterized by its high resistance (impact) and its great properties against aging (very long useful life). <br>
If the measurement or any other specification of the product is not within the standard program, consult our commercial office.

Our straight connector has been designed in order to connect 2 square tubes. It is supplied without internal metal core or with an internal steel core.
