2 tubes elbow connector with a cavity for metal core and visible union SRAAH

Description and features

Our elbow connector has been designed in order to connect 2 rectangular tubes. It is supplied with or without internal metal core.

Technical documentation and compliance

Drawing PDF
UL94
IP
RoHS
Measures expressed inMillimeters
Video

Product images and technical drawings

Product view

2 tubes elbow connector with a cavity for metal core and visible union SRAAH - Product view

Technical drawing

2 tubes elbow connector with a cavity for metal core and visible union SRAAH - Technical drawing

Video

Part numbers and dimensions of 2 tubes elbow connector with a cavity for metal core and visible union

Reference	For Tube	Tube Thickness	L										More Info.

30 x 20

2,00

40,00

If you are interested in our family SRAAH, you may be interested in these families as well:

Rectangular tube insert with roof-shaped base LFS

2 tubes elbow connector with a cavity for metal core and visible union SRAAF

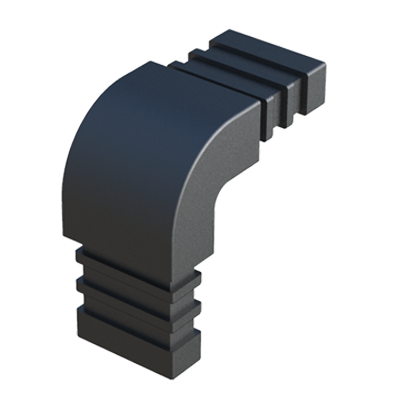

2 tubes elbow connector with visible union SRAAI

2 tubes elbow connector with visible union SRAAC
